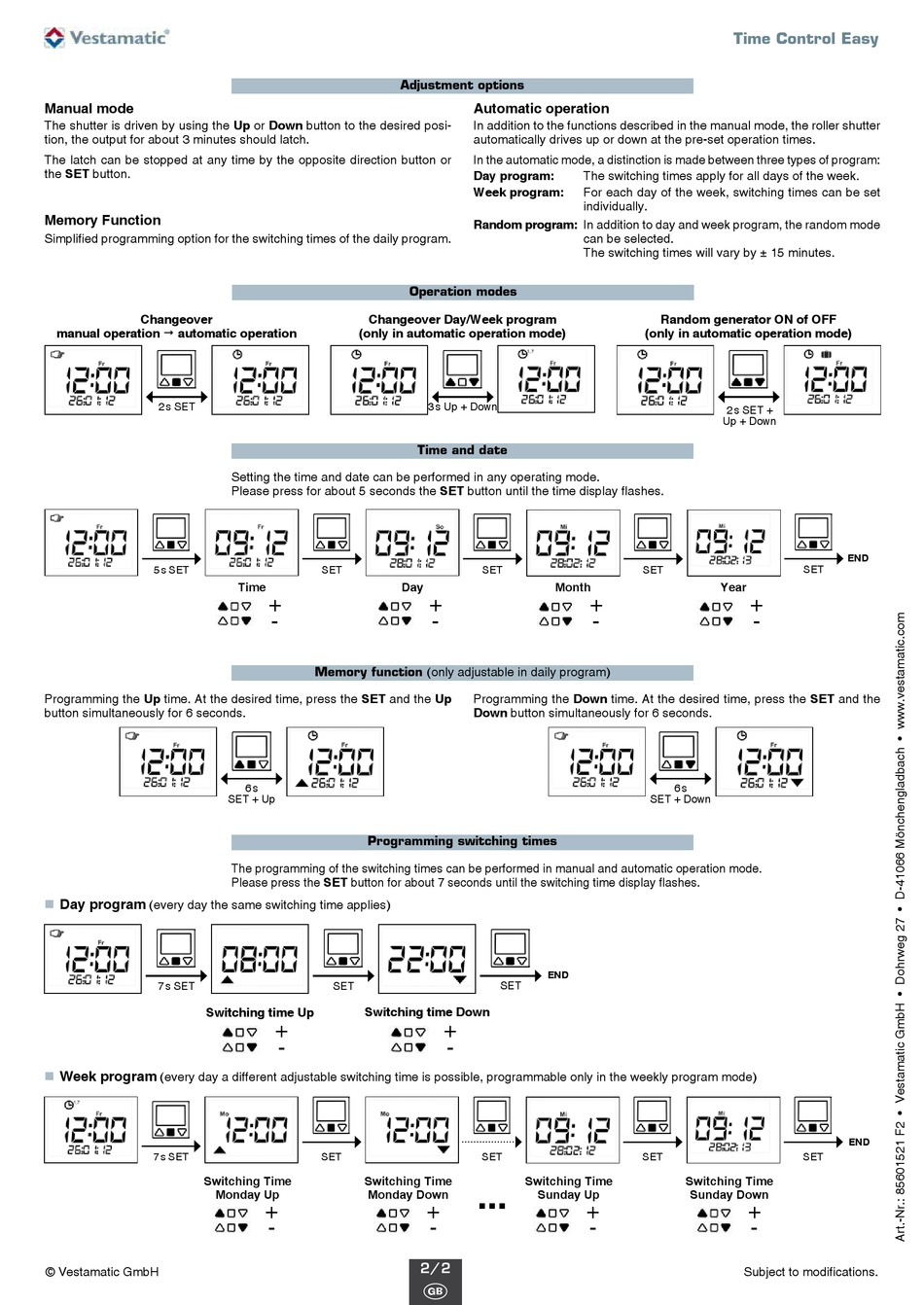

Automatic Operation - Vestamatic Time Control Easy Installation And Operating Instructions

Manual mode
The shutter is driven by using the Up or Down button to the desired posi-
tion, the output for about 3 minutes should latch.
The latch can be stopped at any time by the opposite direction button or
the SET button.
Memory Function
Simplified programming option for the switching times of the daily program.
Changeover
manual operation  automatic operation
2 s SET
5 s SET
Programming the Up time. At the desired time, press the SET and the Up
button simulta neously for 6 seconds.
Day program
„
(every day the same switching time applies)
7 s SET
Switching time Up
Week program
„
(every day a different adjustable switching time is possible, programmable only in the weekly program mode)
7 s SET
Switching Time
Monday Up
© Vestamatic GmbH
Adjustment options
Changeover Day/Week program
(only in automatic operation mode)
Setting the time and date can be performed in any operating mode.
Please press for about 5 seconds the SET button until the time display flashes.
SET
Time Day
+
-
Memory function (only adjustable in daily program)
6 s
SET + Up
Programming switching times
The programming of the switching times can be performed in manual and automatic operation mode.
Please press the SET button for about 7 seconds until the switching time display flashes.
SET
Switching time Down
+
-
SET
Switching Time
Monday Down
+
-

Automatic operation

In addition to the functions described in the manual mode, the roller shutter
automatically drives up or down at the pre-set operation times.
In the automatic mode, a distinction is made between three types of program:
Day program: The switching times apply for all days of the week.
Week program:
For each day of the week, switching times can be set
individually.
Random program: In addition to day and week program, the random mode
can be selected.
The switching times will vary by ± 15 minutes.
Operation modes
3 s Up + Down
Time and date
SET
Month
+
-
Programming the Down time. At the desired time, press the SET and the
Down button simulta neously for 6 seconds.
END
SET
+
-
SET
Switching Time
...
Sunday Up
+
-
2/2
G
Time Control Easy
Random generator ON of OFF
(only in automatic operation mode)
2 s SET +
Up + Down
SET
Year
+ +
- -
6 s
SET + Down
SET
Switching Time
Sunday Down
+ +
- -
Subject to modifications.
END
SET
END
SET
