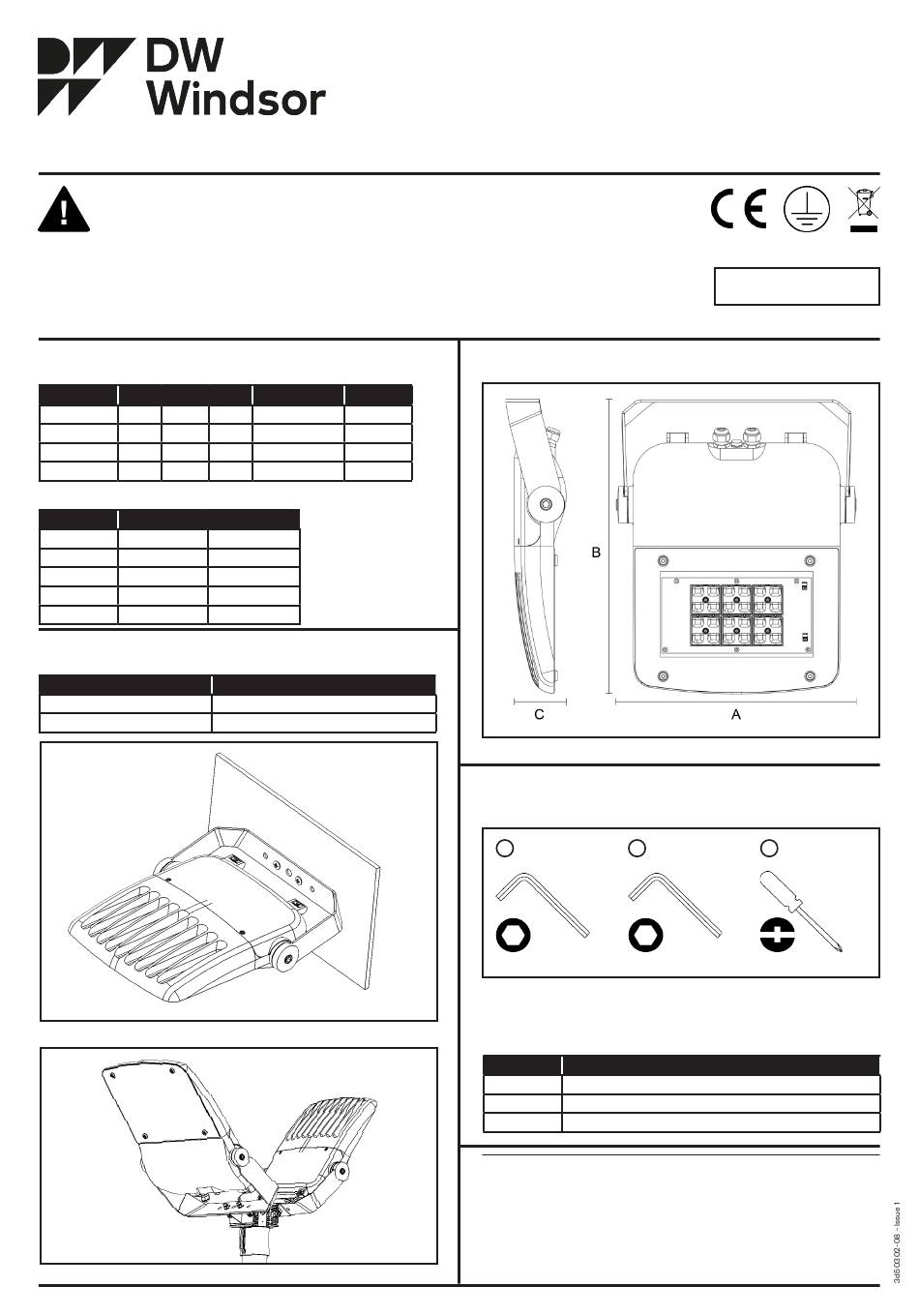

Installation Instructions
IMPORTANT
• DISCONNECT ELECTRICAL SUPPLY BEFORE INSTALLATION OR SERVICING.
• THIS PRODUCT MUST BE EARTHED.
• THIS PRODUCT IS DESIGNED TO OPERATE OUTDOORS. IF REQUIRED TO BE
USED INDOORS PLEASE CONSULT DW WINDSOR.
• THIS PRODUCT IS FITTED WITH HIGH IMPACT RESISTANT GLASS AND MAY
BE MOUNTED AT HEIGHTS
ABOVE OR BELOW 5m.
Product Details
Dimensions (mm)
A
B
Sabre 1
283
390
Sabre 2
386
488
Sabre 3
460
595
*Maximum weight of lantern including mounting bracket.
Power Ranges (Watts)
Standard
Sabre 1
12 - 55
Sabre 2 - 24 LED
17 - 79
Sabre 2 - 32 LED
22 - 105
Sabre 3
41 - 198
Mounting options
Entry Options
Stirrup wall mount
Post top
Fig. 2 Stirrup wall mounting option
Fig. 3 Post top mounting option
Max. Weight (kg)*
Windage m²
C
73
3.8
0.016
81
7.8
0.029
94
13.1
0.045
CLO Enabled
10 - 46
14 - 67
18 - 88
35 - 151
Fig.
2
3
IP66 IK08
Fig. 1 - Sabre 2 (32 LED)
Tools Required
Tools not supplied.
1
5mm Allen Key
Recommended Torque
The information shown below details the recommended bolt torque when
mounting Sabre to post top bracket.
Sabre 1
Sabre 2
Sabre 3
Due to continuous product development the details within this document
are subject to change at any time, please contact us for the most up-to-date
information or visit: www.dwwindsor.com
DW Windsor
Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX
T: +44 (0) 1992 474600 | E: info@dwwindsor.com
dwwindsor.com
Sheet 1 of 3
The Sabre Range
LED Flood Light
Sabre 1, 2 and 3
230VAC 50Hz
Pozi or Slotted
2
10mm Allen Key
3
Screwdriver
Post Top Bracket Mounting Torque (Nm)
10
10
10
Fig. 1
Fig. 4
Advertisement
Summary of Contents for DW Windsor Sabre 1
-
Page 1: Installation Instructions
The Sabre Range LED Flood Light Sabre 1, 2 and 3 Installation Instructions IP66 IK08 IMPORTANT • DISCONNECT ELECTRICAL SUPPLY BEFORE INSTALLATION OR SERVICING. • THIS PRODUCT MUST BE EARTHED. • THIS PRODUCT IS DESIGNED TO OPERATE OUTDOORS. IF REQUIRED TO BE 230VAC 50Hz USED INDOORS PLEASE CONSULT DW WINDSOR. - Page 2 The Sabre Range LED Flood Light Sabre 1, 2 and 3 Sabre Installation Steps | Stirrup Wall Mounting Step 2 Step 1 Position the stirrup bracket on the wall, use the existing holes in the stirrup Turn off mains power. Loosen and remove M10 Allen bolts and remove the bracket as guides, drill holes and insert anchors.
- Page 3 The Sabre Range LED Flood Light Sabre 1, 2 and 3 Sabre Installation Steps | Stirrup Wall Mounting Step 2 Step 1 Position the stirrup bracket on the post top bracket, tighten the provided bolts Turn off mains power. Loosen and remove M10 Allen bolts and remove the to 10Nm to fix them.
