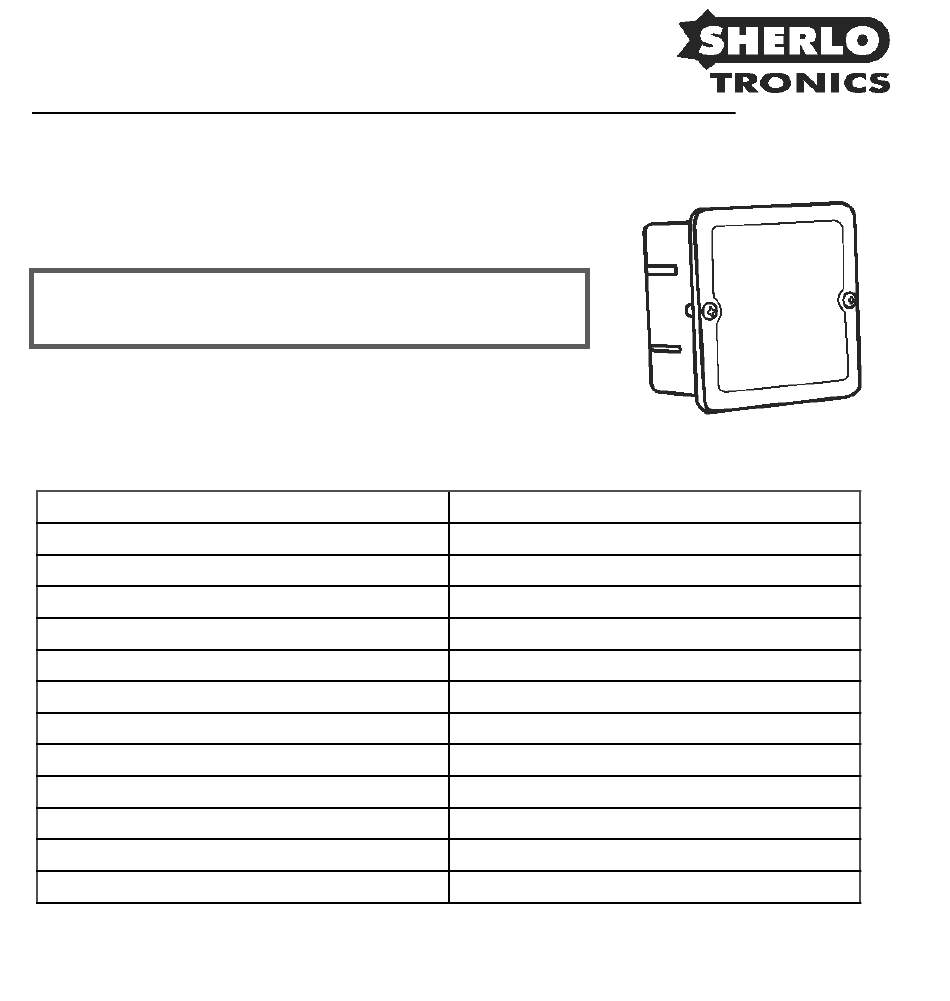

Installation Instructions - For Service Persons Only

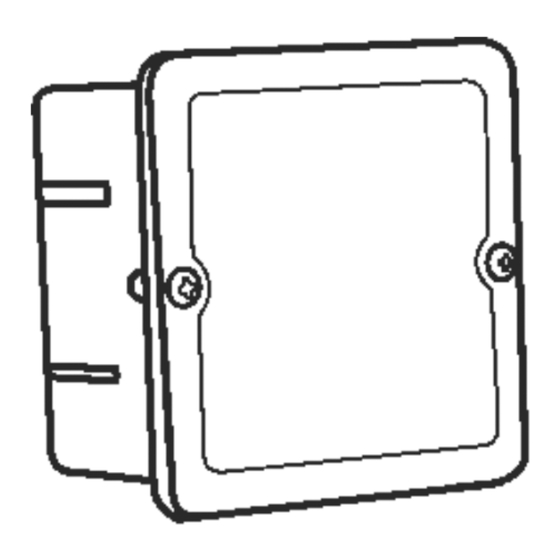

Gate Alarm transmitter unit
Model No: GATE_ALARM
Technical Specifications:
Model:
Encryption type:
Transmission frequency:
Transmission method:
Modulation
Transmission range:
Battery life duty cycle:
Voltage range:
Standby current consumption:
Current consumption on TX:
Operating Temperature:
Dimension (lxbxh)
Gross weight:
GATE_ALARM
Code hopping
403MHz / 433MHz
OOK
AM
100m "Line of sight" 50m"Indoors"
30 000
3VDC or 12VDC jumper select
+/-1uA 10%
+/-15mA 10%
-3°C to 49°C
124 x 80 x 30mm
210g
1
Advertisement
Summary of Contents for Sherlotronics GATE_ALARM
- Page 1 English Installation Instructions - For Service Persons Only Gate Alarm transmitter unit Model No: GATE_ALARM Technical Specifications: GATE_ALARM Model: Encryption type: Code hopping Transmission frequency: 403MHz / 433MHz Transmission method: Modulation Transmission range: 100m “Line of sight” 50m“Indoors” Battery life duty cycle:...
-
Page 2: Order Codes
Gate Alarm Transmitter unit: 3V or 12V GATE ALARM Warranty This product is sold subject to our standard warranty conditions and is warrantied against defects in workmanship for a period of two years. Customer Support line: +2711 462 5101 E-mail: technical@sherlotronics.co.za... - Page 3 Mounting advice The plastic housing is water proof, and must be mounted externally on the inside of the gate, close to the gate opening. It is not recommended to mount the GATE ALARM unit lower than 500mm from the ground as this will affect its RF performance and operating distance. Check the diagram below for the best mounting position.
- Page 4 Programming the Gate Alarm to a Receiver Default the Receiver unit before you begin a new installation. This erases all previously programmed transmitters. Press the LEARN switch on the Receiver. Press the TRANSMIT switch on the GATE ALARM unit. The Receiver will beep twice when it learns the signal from the GATE ALARM unit. Press the LEARN switch again on the receiver to exit out of learn mode.
-
Page 5: Jumper Settings
Jumper Settings Normally Open trigger input. Normally Closed trigger. (The supplied mag switch is a N.C) The Receiver will switch its Relay Open when the gate is open, & the relay will ON/OFF close when the gate closes. Transmits every time the gate opens. STANDARD 3MIN TIMOUT Transmits if the Gate is left Open for more than 3 Minutes... - Page 6 Gate Alarm setup as a 24 hour zone If you want to set up the GATE ALARM system as a 24 Hour zone on to an Intruder Alarm system, then you will need to run a wire from the gate motor’s Receives N.O & Common back to the GATE ALARMS [RX-BYPASS(TRIG)].
