Sea gull lighting HC-564 Installation And Safety Instructions

Installation AND SAFETY INSTRUCTIONS HC-564

FOR YOUR SAFETY

WARNING: BE SURE THE ELECTRICITY TO THE WIRES
YOU ARE WORKING ON IS TURNED OFF; EITHER
THE FUSE REMOVED OR THE CIRCUIT BREAKER SET
AT OFF.
9219-12 Well Light
NOTE: INSTALL PIPE FLUSH WITH GROUND FOR
VERTICAL TO HORIZONTAL ILLUMINATION. FOR ACUTE
ANGLES THREAD 9344 STAKE (NOT INCLUDED) AT THE
BOTTOM OF WELL LIGHTS.

ASSEMBLY

1. Snap MR16 lamp into lamp bracket.
2. Push socket onto lamp pins.
3. Install lamp and bracket into the well light housing until
bracket lip come in contact with housing lip.
4. Do not allow cable to touch the MR16 lamp. The heat
from the lamp may cause the cable insulation to melt,
resulting in a short.
5. OPTIONAL: Squeeze accessory ring ends and remove
from shroud. Insert optional accessory (not included).
Secure with accessory ring.
6. Secure shroud to well light housing with set screw.

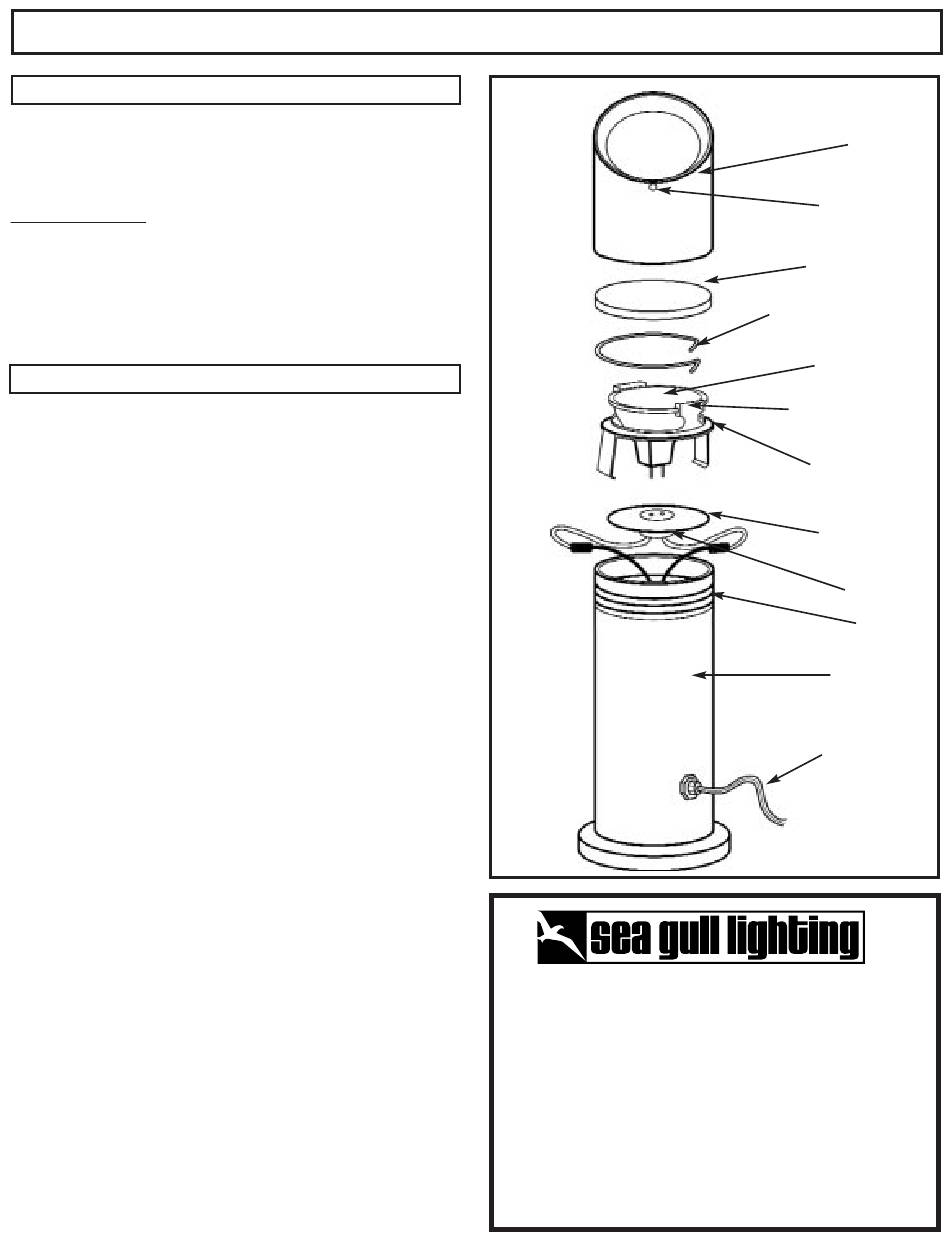

Fig. 1
Installation And Safety
Instruction
HC-564
Line art shown may not exactly match the fixture enclosed.
However, the installation instructions do apply to this fixture.
Fill In Item Number On Carton And
File This Sheet For Fixture Reference.
SHROUD
SET SCREW
* ACCESSORY
ACCESSORY RING
*MR16 LAMP
LAMP BRACKET
BRACKET LIP
REFLECTOR
SOCKET
O-RING
WELL LIGHT
HOUSING
LOW VOLTAGE
FIXTURE CABLE
*NOT INCLUDED
®
