Kvaser PCIEcan 2xHS v2 User's Guide
Copyright 2016-2017 Kvaser AB, Mölndal, Sweden
http://www.kvaser.com
th
Printed Friday 5
May, 2017
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kvaser PCIEcan 2xHS v2
Summary of Contents for Kvaser PCIEcan 2xHS v2
- Page 1 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed...
- Page 2 Kvaser PCIEcan 2xHS v2 User’s Guide 2 (16) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 3: Table Of Contents
2 Introduction 2.1 Welcome to Kvaser PCIEcan 2xHS v2 ....2.2 Major features ...... -
Page 4: About This Manual
Kvaser PCIEcan 2xHS v2 User’s Guide 4 (16) 1 About this manual This manual is intended for Kvaser PCIEcan 2xHS v2 users. This document contains a description of the hardware’s properties and general instructions for connecting the device to a computer. -
Page 5: Introduction

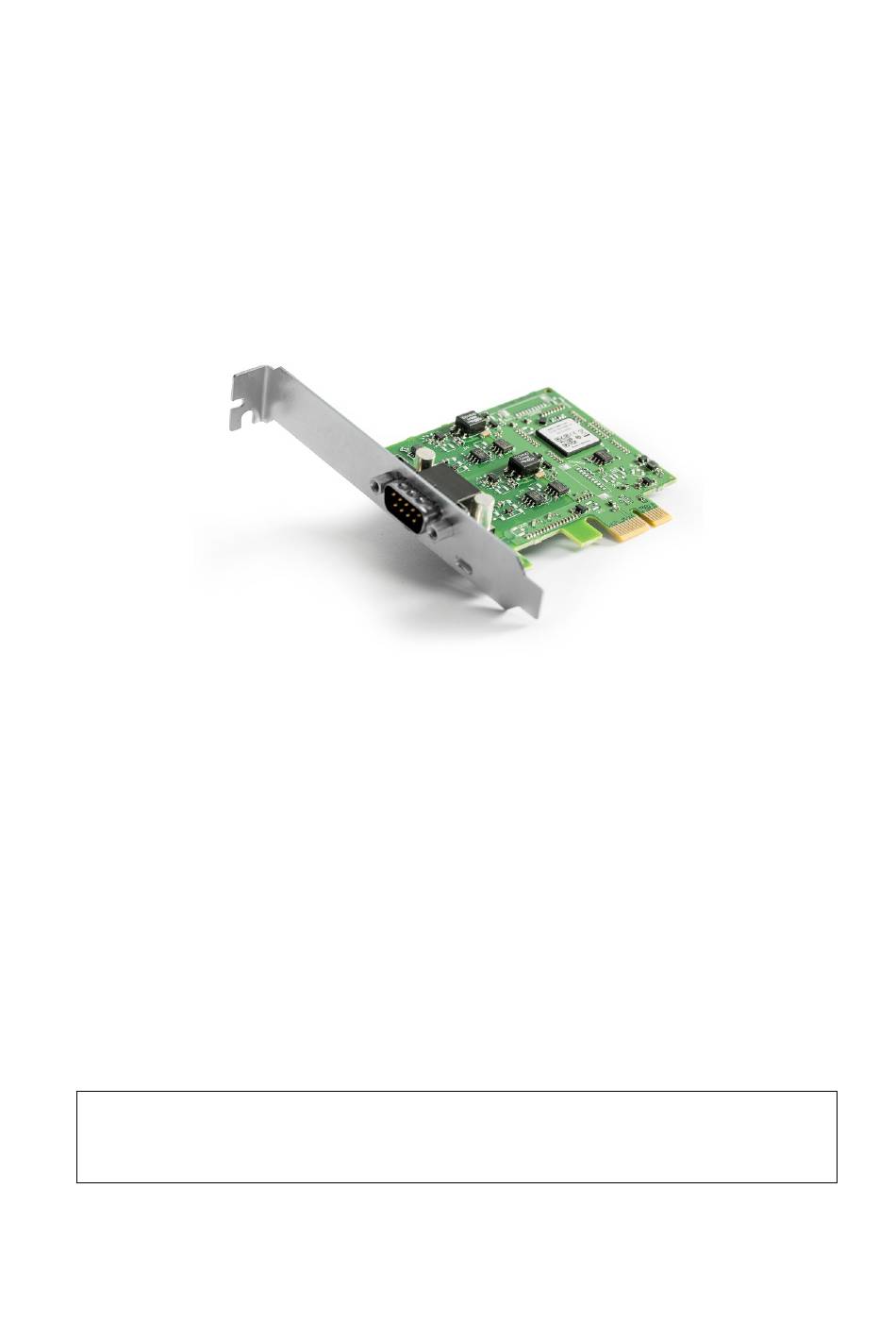

2.1 Welcome to Kvaser PCIEcan 2xHS v2 Figure 1: Kvaser PCIEcan 2xHS v2 Kvaser PCIEcan 2xHS v2 is a small, yet advanced, CAN multi-channel real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser PCIEcan 2xHS v2 is compatible with applications that use Kvaser‘s CANlib. -
Page 6: Major Features
Simultaneous operation of multiple devices. Low profile board. 2.3 Interface Kvaser PCIEcan 2xHS v2 provides a CAN bus interface through a standard PCI Express x1 interface. 2.4 Additional software and documentation The Kvaser CANlib SDK includes everything you need in order to develop software for Kvaser CAN hardware. -
Page 7: Kvaser Pciecan 2Xhs V2 Hardware
In this section you can read more about the CAN channels, power supply and LED indicators. 3.1 Hardware installation The Kvaser PCIEcan 2xHS v2 may be inserted in any free PCI Express slot on the host computer. You do need to switch the power off before inserting or removing the device. -
Page 8: Troubleshooting
3.5 Troubleshooting Use “Kvaser Hardware” in the Control Panel to verify that the computer can communicate with the Kvaser PCIEcan 2xHS v2. If the firmware version shown is all zeros, there are communication problems. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 9: Appendices
4 Appendices In this section you will find technical information about the Kvaser PCIEcan 2xHS v2 and its connectors. 4.1 Technical data In Table 2 below you will find the Kvaser PCIEcan 2xHS v2’s technical specifications. CAN Channels CAN Transceivers... - Page 10 Kvaser PCIEcan 2xHS v2 User’s Guide 10 (16) Figure 4: The D-SUB 9 connector pin numbers Multi channel CAN 1 CAN 2 Function CAN_L channel 2 CAN_L channel 1 GND channel 1 Not connected Not connected GND channel 2 CAN_H channel 1...
-
Page 11: Can Bus Termination
To check the current firmware version, open “Kvaser Hardware” which can be found in the Control Panel. Select “Kvaser PCIEcan 2xHS v2” in the tree view to the left, and click on the channel. The firmware revision information now appears in the right half of the window. -
Page 12: Disposal And Recycling Information
Kvaser PCIEcan 2xHS v2 User’s Guide 12 (16) 5 Disposal and Recycling Information When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. For information about Kvaser’s recycling programs, visit: http://www.kvaser.com/en/kvaser/recycling-policy.html... -
Page 13: Legal Acknowledgements
KVASER AB’S WARRANTY SHALL BE LIMITED TO THE CORRECTION OF DEFECTS, AND KVASER AB HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE KVASER AB DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH MAY BE DEFECTIVE. -
Page 14: Ec Regulatory Compliance
Kvaser PCIEcan 2xHS v2 User’s Guide 14 (16) 6.2 EC Regulatory Compliance The product(s); 73-30130-00861-8, is in conformity with the essential requirements of the following regulations and directives: REACH Regulation (EC) No 1907/2006 of the European Parliament and of the Council of 18 December 2006... -
Page 15: Patents, Copyrights And Trademarks
MagiSync is a trademark of Kvaser AB. DeviceNet is a trademark of Open DeviceNet Vendor Association, Inc. NMEA 2000 is the registered trademark of the National Marine Electronics Association, Inc. For information about Kvaser related CAN patents, see www.kvaser.com/patent. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 16: Document Revision History
Kvaser PCIEcan 2xHS v2 User’s Guide 16 (16) 7 Document Revision History Version history for document UG_98182_pciecan_2hs_v2: Revision Date Changes 2016-02-04 Initial version 2017-01-09 Updated compliance text, added link to patents 2017-03-21 Added Power consumption to Techical data. Kvaser AB, Mölndal, Sweden — www.kvaser.com...
