YOOSEE KW02 User Manual

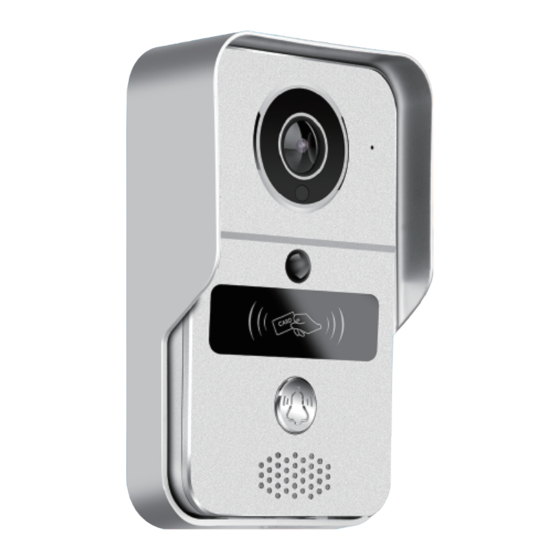

Smart video doorbell
Hide thumbs

Advertisement

Table of Contents

The smart doorbell can be connected via WiFi or cat5e LAN Cable.
When the visitor presses the button on the doorbell, your smart device interacts
with the doorbell:
o
via real time video and full duplex talk
o
take photos and record videos that save directly to your smart device or
MicroSD card of doorbell
o
activates your indoor chime with preset melodies and volume control
Further features include unlocking via smart device, as well as RFID card access.
1 administrator user and up to 10 guest users connect one doorbell.

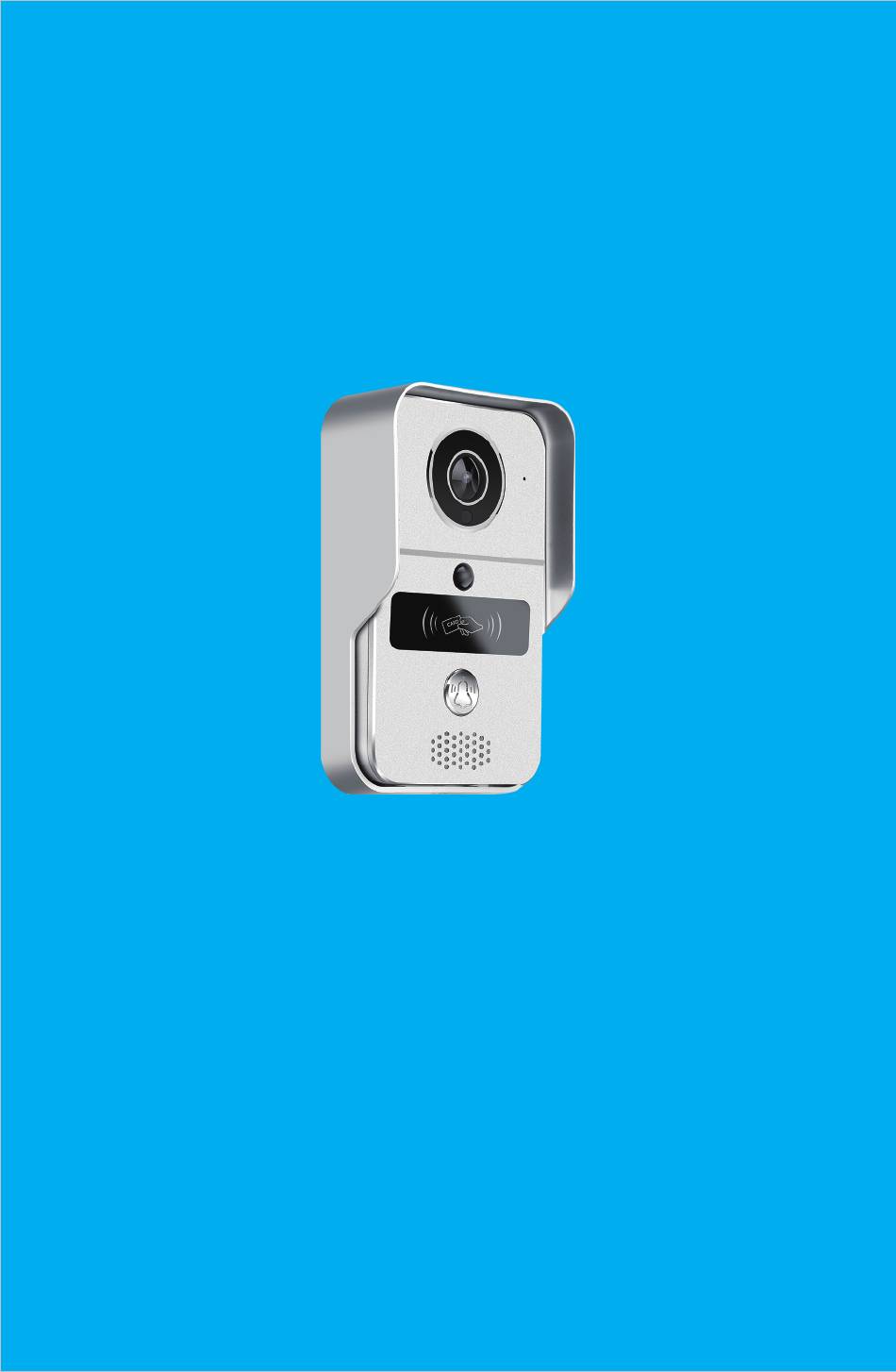

Smart Video Doorbell
User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KW02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for YOOSEE KW02

  • Page 1 Smart Video Doorbell User manual The smart doorbell can be connected via WiFi or cat5e LAN Cable. When the visitor presses the button on the doorbell, your smart device interacts with the doorbell: via real time video and full duplex talk take photos and record videos that save directly to your smart device or MicroSD card of doorbell activates your indoor chime with preset melodies and volume control...

  • Page 2: Specifications

    1 Specifications Network WiFi 802.11 b/g/n or connected to a wired network Talk Full duplex talk Record mode Manual, Record alarm, Record timer Micro SD card without limiting capacity External Memory Resolution 1 megapixels View Angle 150 Horizontal angle Night vision IR CUT no color deviation, B/W night vision within 3meters Frame rate 25 Frame HD(1080*720), SD(640*360)

  • Page 3: Network Connection And Power Supply

    3 Accessories 12V Power adapter DC cable Unlock wiring Access wiring 2* Connector 5* Blue User cards 1* Red Delete card 1* Yellow Add card POE injector Screws and stopper Adhesive tape Screwdriver Optional Unlock control Remote control Indoor chime MicroSD card 4 Network Connection and Power Supply The smart doorbell can be powered and connected to the network in 3 ways, depending...

  • Page 4: Unlock Settings

    5 Unlock settings Please check the specification of electric current for existing electronic lock and access control, as the power charger supplied is for 1A/12V supply. 5.1 Wiring diagram of connect single power adapter NC COM NO Exit COM NO Exit Power on wiring diagram Power off wiring diagram...

  • Page 5: Pairing Of Devices

    6 Pairing of Devices 6.1 Pair indoor chime with smart doorbell Ensure that indoor chime is connected to power, either in USB port or with USB adaptor through mains. Ensure that the Smart doorbell is powered and connected to router. Press the “volume”...
  • Page 6 8 Installation of Smart Doorbell We recommend that you carefully consider the permanent location of your Smart Doorbell, avoiding direct sunlight as well as wind and rain. The doorbell is supplied with 4x screws and plugs, double sided tape and 2x small tamper alarm screws.
  • Page 7 The Yoosee app can be freely downloaded for Android and iOS operating systems. 9.1 Download window software CMS from http://www.yoosee.co 9.2 Search “Yoosee” from APP store or Google Play Store according to phone system 9.3 Scan QR code to download and install...
  • Page 8 Select Fast networking→enter the WiFi password then tap <Next>→ Tap<Hearing the sound of “Du Du”>iOS APP will tap“Connect the AP hot spot” →select hotpost GW_AP_XXX that no password→return Yoosee APP, Wait less than 10 seconds then Name the device, Enter the name then tap<Confirmed, Check my device>.
  • Page 9 10.3 Unbind devices To unbind the doorbell from app, you can long press thumbnail of device interface and confirm delete or unbind. Slide right image of device in iOS app to display <Delete> and confirm delete. 11 Introduction of Device Interface Edit the device name Device status On Guard...
  • Page 10 5 Settings <Settings>enter “Settings” Tap Device ID will list Device ID, Device name, Firmware version, LAN IP, Mac address. Time settings Ensure that the time and time zone are set to correct. Picture and sound PAL or NTSC are selected, Talk volume of video doorbell can be adjusted Video quality include HD, SD, LD for Playback file in MicroSD...

  • Page 11: Push Notification

    So the MicroSD will record after alarm trigger. Click this you will view the video files for the day and earlier 12 Push Notification 100% Yoosee Front door: You have a vistor Saturday, July 9 Yoosee Front door: You have a vistor KBell When visitor calls, alarms, PIR and motion detections, the iOS device receives a push notification when working (Pic A) or standby mode (Pic B).
  • Page 12 Windows software introduction Windows Client CMS default account is admin, password is blank, can logon by the username and password of the app. Onvif connects NVR can be realized a large recording. Preview Playback Settings Lock screen Intercom Capture Start Record Smooth Standard definition High definition...
