Page 2: Mechanical Drawings

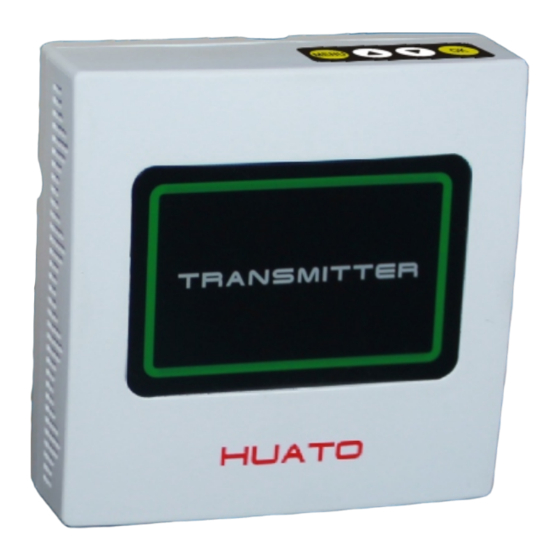

SCM design, which assure the quality and stability. HE400 series and HE200 series support two kinds of output, Voltage and Current. They have unique design features to ensure no circuit interface of themselves. They are wall-mounted and enjoy widely measuring range and high accuracy, suitable for DC16V-30V. - Page 3 Technical specifications： Temperature Humidity 0℃～50℃（internal） 0%RH～100%RH Measuring range -30℃～70℃（external） ±0.5℃ ≤±3%RH(25℃,20-90%RH) temperature accuracy Working -10℃～60℃ 0%RH～100%RH（non-condensing） range Power DC16～30V （suggest 24V） supply Output Voltage 0～5V / 0-10V Current 4-20mA Canning ABS Engineering Plastics material Wire mode Voltage 4 lead terminals Current 3 lead terminals Look-up table for analog output:...
- Page 4 Button instructions: There are 4 buttons: , that is MENU, UP, DOWN and OK key. Key functions as follows: Name MENU DOWN Set key Up key Down key Ok key Functions Press the MENU key for 3 to 5 seconds long enough to enter setting menu, appear SET and press OK to enter selecting mode menu, then it will appear 1-5 numbers, one number to one mode as follows: Single ...
- Page 5 3. Some functional parameters of product maybe amended, the correct functional parameter is subject to the label. HUATO Electric (Shenzhen) Co., Ltd Address: F3 of Building 1, Taohuayuan Technological Innovation Zone, Xixiang Street, Baoan District, Shenzhen, China. After-sales service hotline：0086-755-29977880 Fax：0086-755-29748856...
