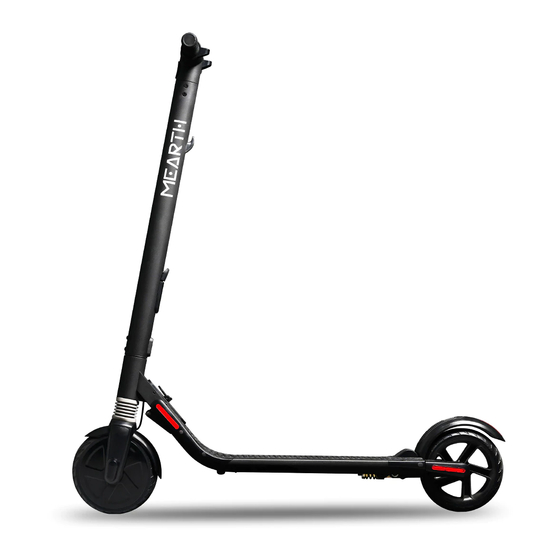

- Page 1 Mearth X User Manual 2020-2022...
-
Page 2: Table Of Contents
Contents 1 Packing List 2 Diagram 3 Assembling Your Mearth Scooter 4 Charging 5 Learing to Ride 6 Warnings 7 Folding and Carrying 8 Maintenance 9 Second Battery 10 Specifications... -
Page 3: Packing List
1 Packing List Handle Mainframe 88:88 SPORT V ODO TIME SPORT+ KM/H User Materials USER MANUAL Accessories M4 Flathead Screw x5 M4 Hex Wrench Battery Charger (one extra) -
Page 4: Diagram
2 Diagram Electronic throttle Dashboard & Power button Electronic brake Headlight Riding Modes Folding latch 88:88 SPORT V ODO TIME Speedometer SPORT+ KM/H Stem(battery cabin) Charge port/Second Battery Cabin Folding pedal Rear fender/foot brake Hub motor Kickstand Dashboard & Power Button Speedometer: Indicates the current speed.Also displays error codes when faults are detected. -
Page 5: Assembling Your Mearth Scooter
88:88 SPORT SPORT+ KM/H V ODO TIME 3. Install four screws (two on each side) with 4. Verify that your Mearth Scooter powers on and off. the included hex wrench. 88:88 SPORT SPORT+ KM/H V ODO TIME 88:88... -
Page 6: Charging
Do not connect the charger if the charge port or charge cable is wet. Your Mearth Scooter is fully charged when the LED on the charges from red (charging) to green (trickle charge). Close the charge port cover when not charging. - Page 7 2. Stand on the footrest with one foot and push off with 3. Put your other foot on the footrest to keep both feet your foot to start gliding. stable.Press the throttle on right hand to speed up when you are balanced. Note,For your safety,the motor will not engage until the scooter reachs 1.8 mph (3km/h).
-
Page 8: Warnings
6 Warnings WARNING Failure to follow these instructions could lead to serious injury. DO NOT ride the DO NOT ride over speed bumps.thresholds,or other bumps scooter in the rain. at HIGH SPEED. Watch your head when passing Watch your speed when traveling downhill.Use both brakes through doorways. - Page 9 DO NOT press the throttle when walking Avoid contacting obstacles with the with the scooter. tire / wheel. DO NOT carry heavy objects on DO NOT ride the scooter with only one the handlebar. foot.
- Page 10 DO NOT rotate the handle violently while or highways. driving at high speed. DO NOT ride through puddles or. other The Mearth Scooter is for one rider only. Do bodies of water deeper than 1 inch not ride double or carry any passengers. Do (2 cm).
- Page 11 DO NOT step on the folding pedal DO NOT touch the hub motor after riding while riding. because it can get hot. DO NOT take your hands off the handlebar DO NOT ride up and down stairs or jump while riding.Do not ride with one hand only. over obstacles.
-
Page 12: Folding And Carrying
7 Folding and Carrying Folding Step on the folding pedal while pushing the handlebar forward slightly. Then fold the handlebar down until it locks into the rear fender. Carrying When your Mearth Scooter is folded up,simply lift it by the stem to carry. -
Page 13: Maintenance
Store your Mearth Scooter in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life. - Page 14 3. Install the external battery on the rail and fix it with the M4 (20mm) 4. Verify that your Mearth Scooter powers on and off. screws (2pcs), provided with this product. After they are properly installed, block the screw holes with the rubber stopper.
-
Page 15: Second Battery
9 Specifications Item Mearth X Pro Unfold:Length x Width x Height 40x17x45in(102x45x113cm) Dimensions 45x17x16in（113x45x40cm) Fold:Length x Width xHeight Weight 27.6lbs(12kg) Payload 55-220 lbs(25-120kg) Rider Recommended Age 16+years Required Height 3'11''-6'6''（120-200cm) 15.5mph (25km /h ) Max.Speed Typical Range (20km) Max.Slope Machine asphalt/flat pavement；obstacles＜0.4in(1cm)；gaps＜1.2in(3cm)
