Marchand Electronics MB26 Assembly Instructions Manual

Push-pull tube amplifier

Advertisement

Quick Links

Marchand Electronics Inc.
PO Box 18099, Rochester NY 14618
Tel:(585) 423 0462 Fax:(585) 423 9375
info@marchandelec.com www.marchandelec.com
(c)2006 Marchand Electronics Inc.

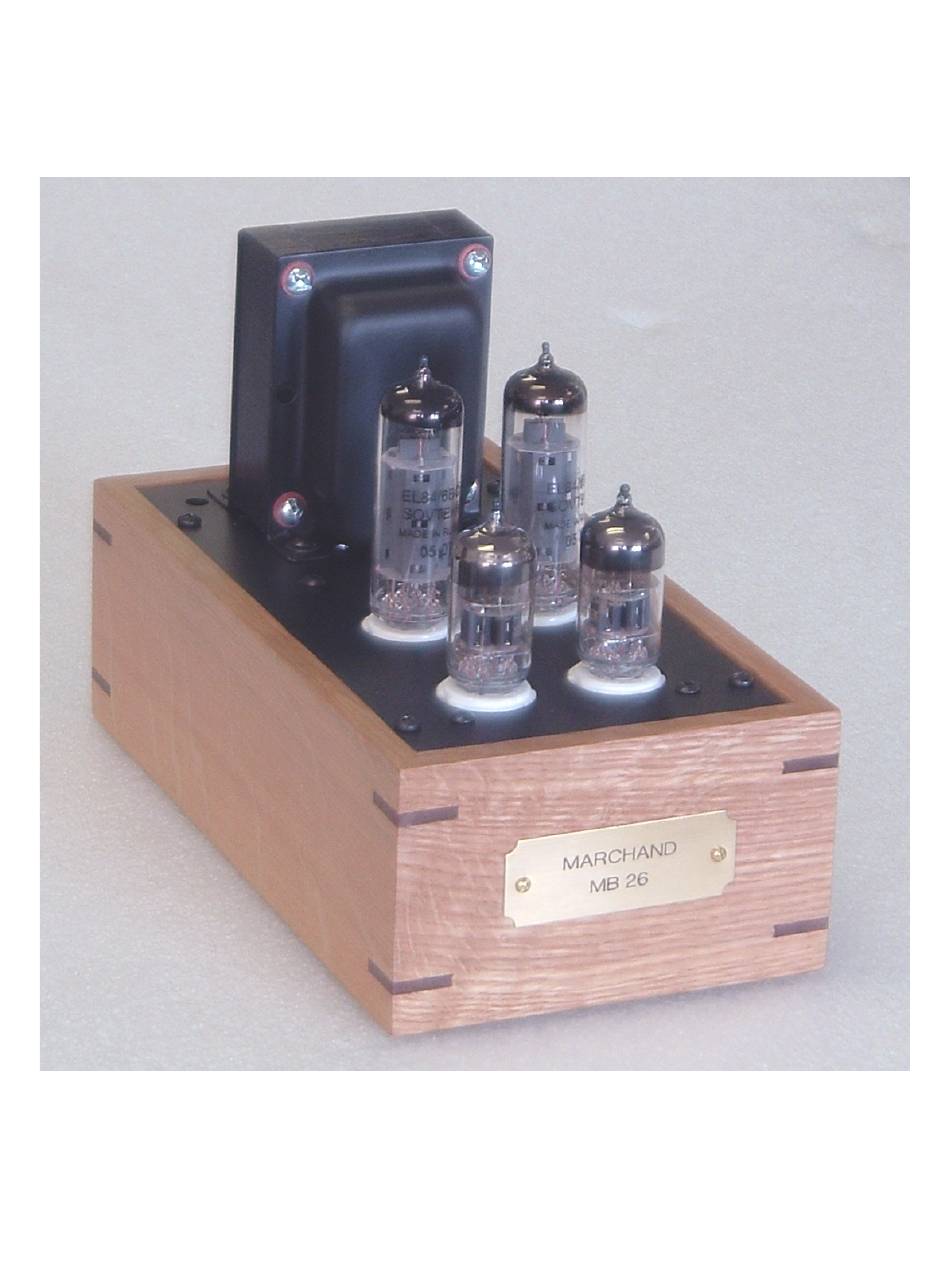

MB26 Push-pull tube amplifier
Marchand Electronics Inc
www.marchandelec.com 585 423 0462

Advertisement

loading

Summary of Contents for Marchand Electronics MB26

  • Page 1 Marchand Electronics Inc. PO Box 18099, Rochester NY 14618 Tel:(585) 423 0462 Fax:(585) 423 9375 info@marchandelec.com www.marchandelec.com (c)2006 Marchand Electronics Inc. MB26 Push-pull tube amplifier Marchand Electronics Inc www.marchandelec.com 585 423 0462...
  • Page 2 1% metal film 1N5248 18V zener 49K9 1% metal film 1N5232 5.6V zener 100K 1% metal film 1K00 1% metal film UF4007 ultra fast 1A diode 200 Ohm 0.047uF,250V film SG2525 DIP16 socket 0.22uF,250V film Marchand Electronics Inc www.marchandelec.com 585 423 0462...
  • Page 3: Packing List

    6/32 x 1/2" machine screw, black buttonhead 1M00 1% metal film 4/40 x 1/2" machine screw, black buttonhead trimmer 4/40 hex nut MICA insulator TO247 Capacitors Thermal grease MB26 circuit board 0.001 uF polypropylene rear panel 0.047uF,250V film top cover 0.22 F,250V film bottom cover 0.47uF,250V...
  • Page 4 Top view (component side) of assembled circuit board. The tube sockets are installed on the other side (solder side) of the board. Marchand Electronics Inc www.marchandelec.com 585 423 0462...
  • Page 5 The leads are magnet wire with poly insulation; this insulation will melt away with the heat from the soldering iron. When soldering these leads apply enough heat for enough time until the insulation is gone. The trimpot R21 will be adjusted for 12.6V filament voltage during initial checkout.. Marchand Electronics Inc www.marchandelec.com 585 423 0462...
  • Page 6 Assembly instructions for MB26 power amplifier. Assemble the main cicuit baord using the parts list above. Do not install the tube sockets at this time. Do not install Q1 (IRFP240) at this time. Attach the 2 transistors Q3 and Q4 about 1/2” above the circuit board (do not shorten the leads).
  • Page 7 NH12AX7 NH12AX7 NH12AX7 NH12AX7 input 1000k 1000k 1000k 1000k 19.1K Hammond 1608 Output transformer outputpost 100µF 100µF 100µF OUTPUT to SPEAKER 80mH groundpost plate1 plate2 R11A R11B 0.47µ 0.47µ EL84/6BQ5 EL84/6BQ5 R10A R10B R12A R12B 100k 100k --- C:\Phil\designs\a_amplifiers\mb26\mb26schematic.asc ---...
