- Page 1 User Manual GW-3201M1 Serial to IP Intelligent Gateway with Modbus conversion Rev. Oct/2019 Made in Taiwan...
- Page 2 GW-3201M1 Manual Disclaimers and Safety The accuracy of the information in the manual has been confirmed by the manufacturer. All specification and information are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose.
-
Page 3: Package Content

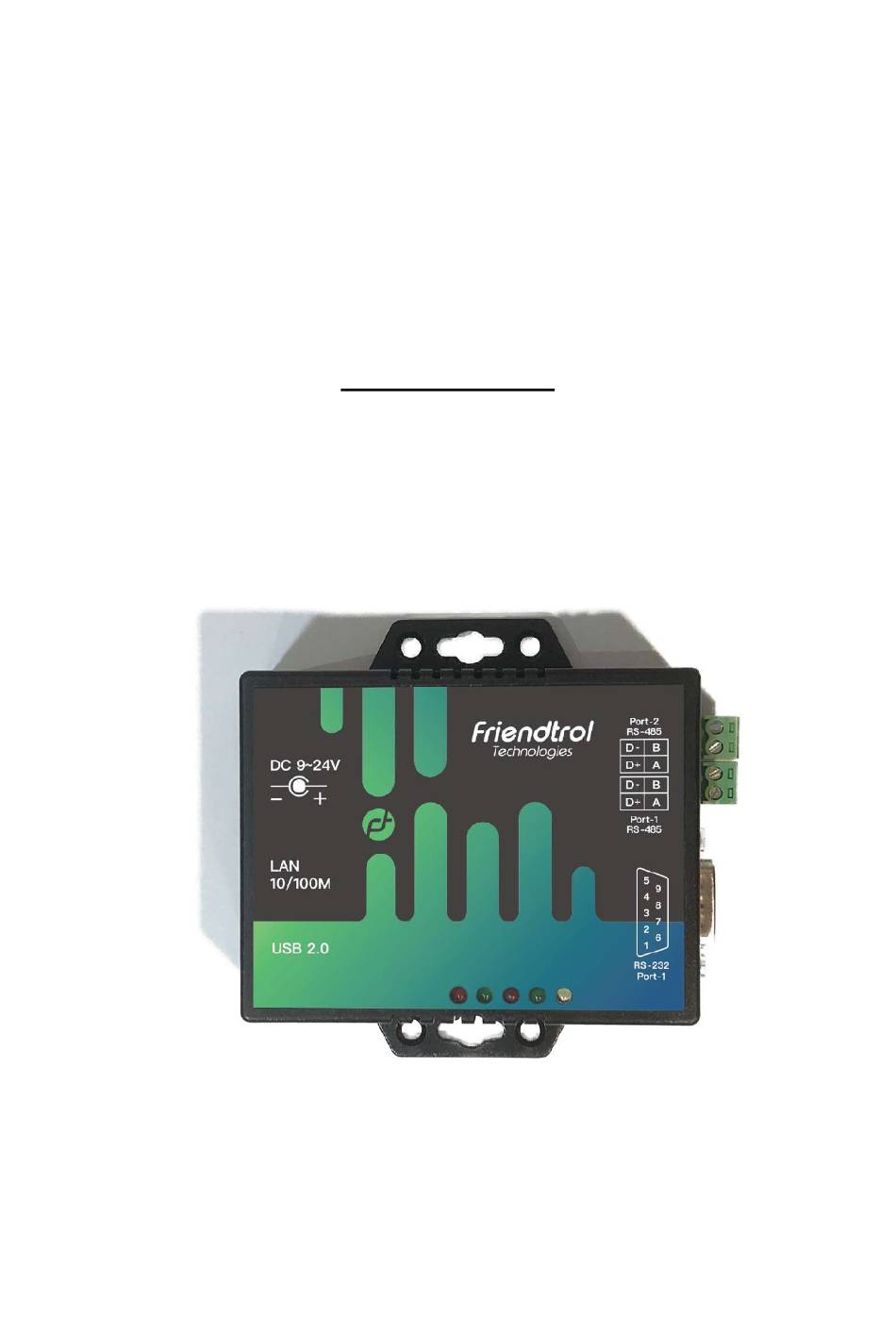

GW-3201M1 Manual Package Content 1x GW-3201M1 Introduction CTR-3201M1 is Serial to IP intelligent Gateway with Modbus conversion Serial to IP intelligent Gateway with Modbus conversion. The major purpose of this device is . The major purpose of this device is to convert Modus UTP to Modbus TCP to convert Modus UTP to Modbus TCP (either way). - Page 4 GW-3201M1 Manual Rear Panel Top Panel...
-
Page 5: Specification
GW-3201M1 Manual Power Input Connect to power supply Ethernet Connect to LAN Connect to communication kits (optional) Serial Port 1 (RS-232) Connect to device withRS-232 TX of RS-232 (pin3) RX of RS-232 (pin2) Serial Port 1 (RS-485) Connect to device with RS-485... -
Page 6: Default System Settings
GW-3201M1 Manual Others Power Supply 9-24V DC Power Consumption Up to 10W Operating Temperature -20°C to 75°C (4°F to 167°F) Storage Temperature -40°C to 85°C (-40°F to 185°F) Enclosure Plastic Fixedness Mounting ear with screws Humidity 20 - 80% RH [Not Condensation]... - Page 7 GW-3201M1 Manual FriendtrolInstallation Wizard FriendtrolInstalltion Wizard is a tool to help user to set up this gateway quickly.User just needs to follow the three steps below, and will complete the configuration in a short time. 1. Network The first step is to set up Ethernet port for general IP settings, white list and VPN.
- Page 8 IP address, white list is built for this case. Therefore only the IP address in the white list can access GW-3201M1. 1-3. When the user wants GW-3201M1 can access to internet, VPN would be used for security issue. In Friendtrol Edge Computing system, we provide this function to meet this goal.
- Page 9 GW-3201M1 Manual 1-4. Network Status User can see the Network status in this section. User can see the Network status in this section. 2. Serial Setup The second step is to set up the general settings general settings for the two Serial ports.
- Page 10 GW-3201M1 Manual 3. Gateway Setup This third step is to complete the conversion between Modbus RTU and Modbus TCP. (Bi-directional) 4. System This section is to see the log and the status of the whole System, and even set up the system.
