Operating Instructions

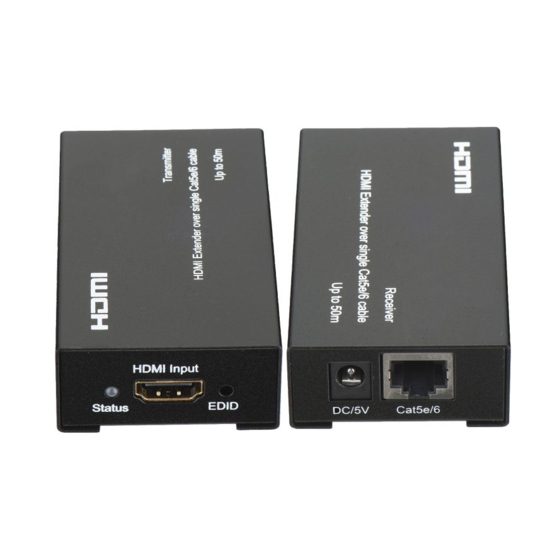

FX-EX11
50m HDMI Extender over Single Cat5e/6, support 3D
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
ABLE OF CONTENTS
Typical Application
www.foxunhd.com
Advertisement
Table of Contents
Related Manuals for foxunhd FX-EX11
Summary of Contents for foxunhd FX-EX11
- Page 1 Operating Instructions FX-EX11 50m HDMI Extender over Single Cat5e/6, support 3D Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
- Page 2 DTS-HD Master Audio、Dolby true-HD etc. 1080P 8-bit 50m(Maximum) over single CAT5E/6 Transmission Distance /24AWG/Solid Power consumption 5watts Dimension (L×W×H) 83x48x25mm Net Weight 250g(pair) Note: Specifications are subject to change without notice. Mass and dimensions are approximate. PACKING CONTENTS 1) Main Unit. HDMI Extender www.foxunhd.com...
- Page 3 4) HDMI output 5) Status of Power Input CONNECT AND OPERATE 1)Connect the HDMI signal sources (Such as PS3, STB etc) to HDMI Transmitter. 2)Connect CAT5e/6 cable to both the output of the transmitter and input of the Receiver. (The cables www.foxunhd.com...
- Page 4 Unauthorized substitutes may result in fire, electric shock, or other hazards. 4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit www.foxunhd.com...
- Page 5 The items listed are not exclusive, but are for illustration only. PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. www.foxunhd.com...
