Videofied MotionViewer OMVC Series Install Sheet

INSTALL SHEET
Product Summary

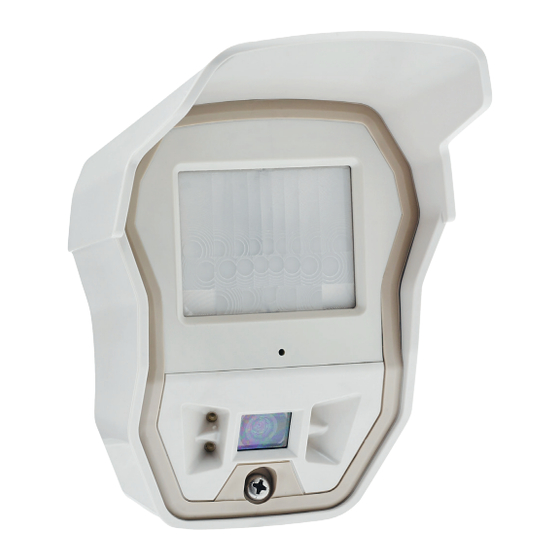

The OMVC 200/601/702/703/800 MotionViewer is a wireless,
battery operated, motion activated outdoor camera designed for
®
use in Videofied security systems.
• Powered by 4 Lithium batteries for extended battery life.
• Lens for vertical curtain detection.
• 4 infrared LEDs for 12m night vision.
• Fully weatherproof
(-25°C/+70°C).
• Tilt sensor tamper.
• Transmits check-in/status signal every 8 minutes.
Installation Guidelines
For easier installation, programming and RF testing should be done to check
for good communication between the control panel and all system devices
before mounting system devices.
Install the detector and other system devices in the order of the following
steps:
>
Programming/RF Testing - program detector and all other devices into the
control panel and test RF communication from each intended device location
to the control panel.
>
Mounting - mount detector at the tested location.
Mounting
>
Use proper tools and hardware.
>
Mount camera between 2.5 m to 3,5 m height.
> The OMVC MotionViewer detection distance may vary depending the
detector mounting (height, tilt). The OMVC is not suitable to protect an area, it
needs to be used to protect the perimeter of an installation.
> Mount detector aimed to protect the perimeter.
>
In order to reduce false alarms, do not aim the detector toward vegetation,
a road, or unlimited space.
>
Do not cover the Fresnel lens.
OMVC OUTDOOR MOTION VIEWER
(IP54) and temperature resistant
DOC. - REF. 213-OMVC
VERSION : MAY 2017
MB110 Mounting kit for
Outdoor MotionViewer
1
