Mobility Sound PRYME BLU User Manual

Charging the Bluetooth Dongle
STEP ONE: Charging the Bluetooth Dongle
The Bluetooth Dongle has an internal Lithium Ion rechargeable battery pack which must be charged prior to operation, and must be
recharged regularly. A fully charged battery will provide approximately 10 hours (or more) of operation before needing to be recharged,
however, operating time can vary depending on usage and the condition of the battery pack. Recharge the battery regularly.
To charge the Bluetooth Dongle:
1. Ensure the Bluetooth Dongle is turned off, using the switch located on the back of the device.
2. Plug the supplied wall charger into a standard 120 volt AC outlet.
3. Plug the charger into the charge jack on the bottom of the Bluetooth Dongle. You will need to remove the protective rubber cover that is
inserted into the charge jack. (To prevent dust and moisture from damaging your dongle, always ensure this cover is in place when you are
not charging the dongle.)
4. Once the charging process has begun, the LED indicator on the top of the Bluetooth Dongle will show a constant blue light. Typical
charge time is approximately 5-6 hours. Actual charge time will vary depending on several factors including the battery's charge state,
condition, and age.
6. Disconnect the charger from the dongle when charging is completed.
Charging Cautions:
- Use only the wall charger supplied by the manufacturer. Do not use any other charger.
- Do not use a wall charger that appears to be damaged. (Example: frayed wires, melted plastic, etc.)
Contact your dealer to get a new manufacturer-approved replacement
charger. - Do not tamper with or modify the Bluetooth Dongle or charger.
-Always turn the power switch to the off position when charging the Bluetooth Dongle.
3

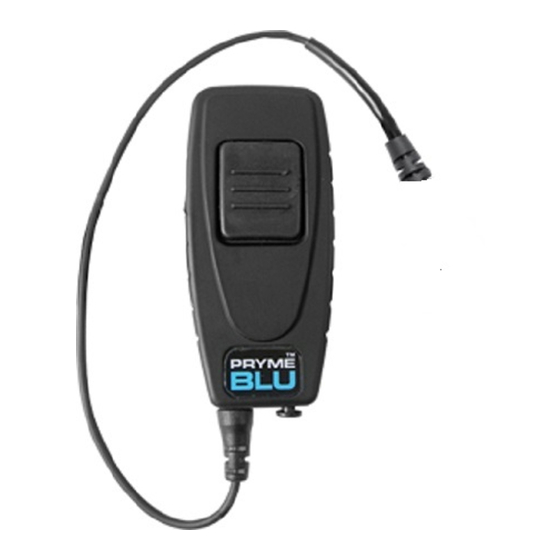

Controls and Connection
Radio Connector
Plugs into the 2-way
radio's Mic/Speaker jack.
Multifunction Talk Switch
Used to place the Bluetooth
Dongle in pairing mode.
Once paired with an audio
accessory, this switch is used
to activate the Push-To-Talk
function of the 2-way radio
There is a clothing clip on
the back of the long cord
versions.
QUICK START
1. Connect the Bluetooth dongle to a compatible 2-way radio.
2. Pair the Bluetooth dongle with a compatible wireless audio accessory.
3. Test and use.
Connecting the Dongle to Radio
STEP TWO: Connecting to a 2-way Radio
To connect your Bluetooth Dongle to a 2-way radio, follow these steps:
* Always turn off your 2-way radio before connecting the Bluetooth Dongle.
* Plug the Bluetooth dongle's radio connector into the speaker-microphone / audio accessory jack of your 2-way radio. *
You can attach the Bluetooth Dongle to your 2-way radio or clothing using the Velcro fastener.
Status LED
The LED flashes messages that
let the user know the current
status of the Bluetooth Dongle
Belt Clip Version
Velcro Fastener
or Belt Clip
Used to attach
the Bluetooth
dongle to the
2-way radio
or to the user's
belt or lapel
2
4
Velcro Fastener
Version
