Adsl nation AMX-64 Quick Start Manual

1.

Introduction

Thank You for purchasing the ADSL Nation
AMX-64. Please take a few moments to follow
these simple instructions to get-online quickly and
easily.

Package Contents

AMX-64 ADSL 4 port Gateway
12v UK Mains Adaptor
Telephone cable.

Hardware Installation

Connect the Mains Adapter to the power inlet and
the mains power outlet. Switch on the AMX-64
using the power switch at the back of the unit.
The red power LED should be illuminated on the
front of the unit. After a few seconds the ready
light will flash to indicate that the router is run-
ning, this flashing light is called the heartbeat.
Plug one end of the telephone cable in to the
AMX-64 and the other to the phone line. The
AMX-64 does not require a splitter, however
you will still require microfilters/splitters for your
other telephone equipment. If your ADSL ser-
vice has been enabled and your connection is
working the green showtime LED will stay on.
Use an Ethernet cable to connect the Router to
the Hub/Switch on your LAN or to your Computer
directly. Use a standard RJ45 Ethernet cable or
crossover, the AMX-64 will automatically detect
what type of cable is in use.
IMPORTANT !
Before beginning Configuration,
DISABLE any Personal firewall software you
may be using as it may interfere with the
installation process
2.

Networking

The AMX-64 will automatically configure each
computer on the network. In order to do this each
computerʼs network settings must be set to use
DHCP or Automatic configuration.
Windows 2000 & XP
1. Click Start button, Settings and choose
"Network & Dial-up Connections".
2. Double click Network Adapter icon and click
properties.

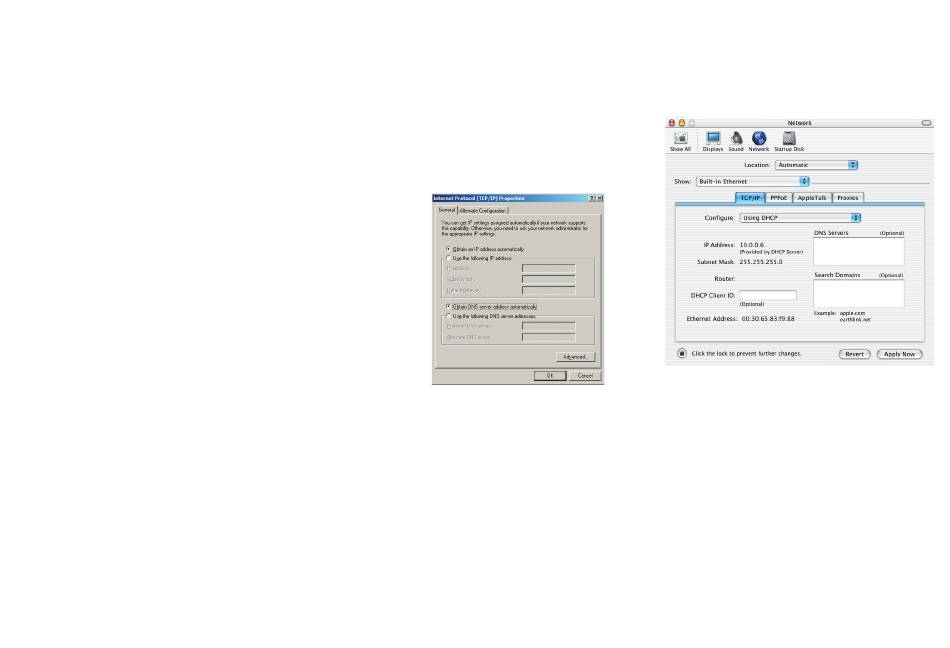

Select the
Internet
Connection
TCP/IP item
from the list and
click Properties.
Make sure
that "Obtain
IP address
automatically"
is selected and
click apply.
Windows 95 & 98
1. Click Start button, Settings and choose Control
Panel.
2. Double click
Configuration tab.
Select the TCP/IP line that has been associated
with your network card in the Configuration tab
and click Properties.
Make sure that "Obtain IP address automatically"
is selected and click apply.
please
Network icon and select
PLEASE REBOOT THE COMPUTER - FOR CHANGES TO TAKE EFFECT

MacOS X

1. Open the System Preferences utility and click
on the network icon.
2. Make sure your network card is selected
usually "built-in Ethernet" and set configure
using DHCP. Click on Apply Now to complete.

MacOS 9

1. Open the TCP/IP control panel. You can find
it in the Apple Menu under the folder "Control
Panels."
2. Make sure your network card is selected
usually "built-in Ethernet" and set configure
using DHCP. Close the window and save
changes if prompted.
