- Page 1 Phase rotation indicator 95608 PHASE ROTATION INDICATOR...
- Page 2 Introduction The phase rotation indicator is a handheld instrument designed to detect the rotary field of three-phase systems. Symbols The following symbols appear on the phase Rotation indicator or in this manual. Table 1. Symbols Earth Risk of electric shock Risk of Danger .

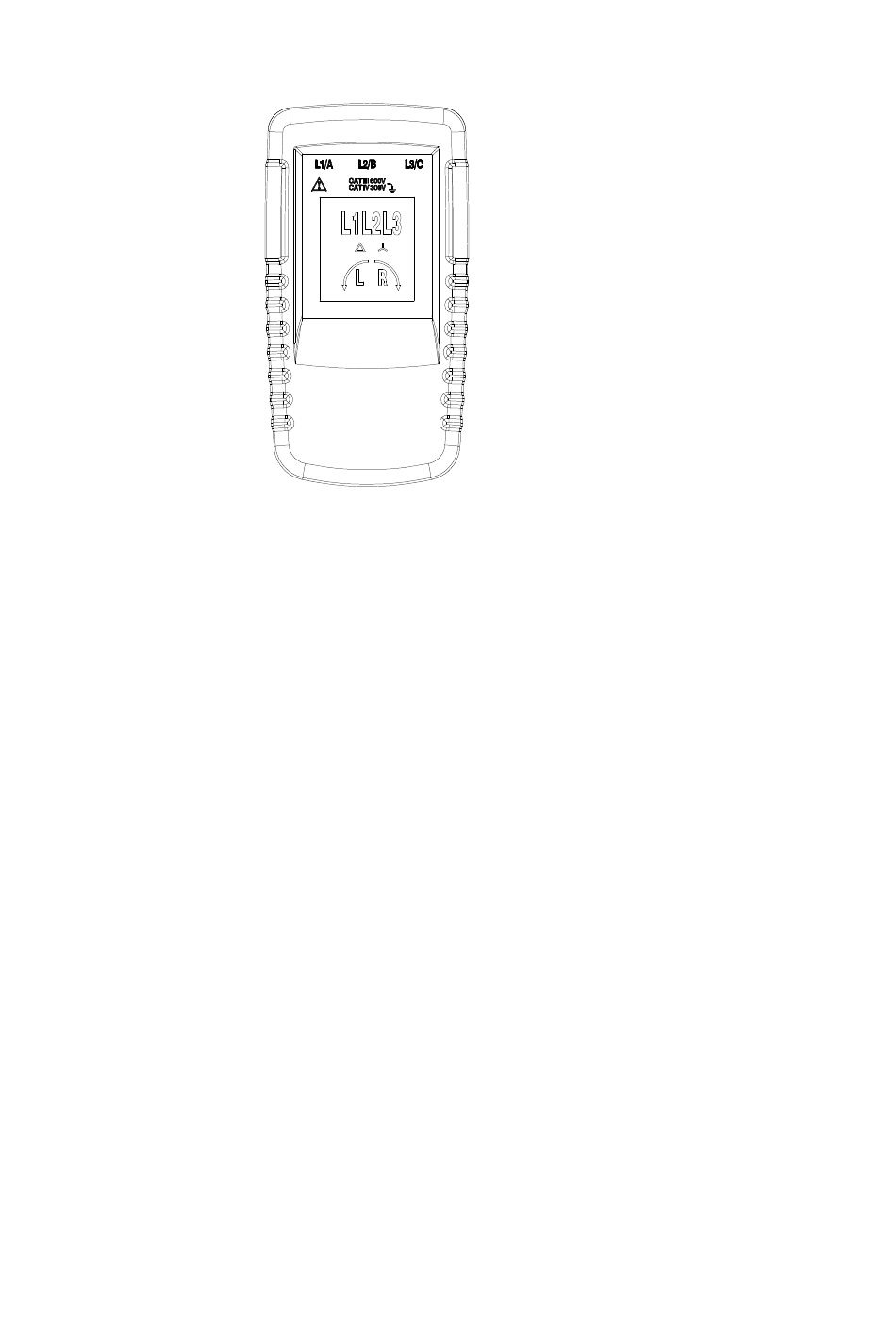

- Page 3 Elements of the phase Rotation indicator Indicators, buttons, and jacks are shown in Figure Test lead input jack L1,L2,L3 Indicators PHASE ROTATION INDICATOR Clockwise Rotation LCD Indicator Counter-Clockwise Rotation LCD Indicator Brief Instructions on instrument rear Figure 1. The phase Rotation Indicator Determine the Rotary Field Direction To determine the rotary field direction: 1.
- Page 4 3. The green ON indicator shows that the instrument is ready for testing. 4. Either the clockwise or counter-clockwise rotary indicator illuminates showing the type of rotary field direction present. 5. The rotary indicator lights even if the neutral conductor, N, is connected instead of the Test lead input jacks.
- Page 5 Safety Information C a u t i o n i d e n t i f i e s c o n d i t i o n s a n d a c t i o n s t h a t m a y d a m a g e t h e D T - 9 0 1 W a r n i n g i d e n t i f i e s c o n d i t i o n s a n d a c t i o n s t h a t p o s e h a z a r d t o t h e u s e r .
- Page 6 Inspect the test leads for damaged insulation or exposed metal. Check test lead continuity. Damage leads must be replaced. Do not use the phase Rotation indicator if it looks damaged. Be careful when working above 30V ac rms, 42V ac peak and 60V dc. Such voltages pose a shock hazard.
- Page 7 Specifications Environmental Operating Temperature 0℃ to +40℃ Pollution Degree 2 Type of protection IP 40 Mechanical Specifications Size (H x W x D): 130mm x 69mm x 32mm. Weight: 130g Safety Specifications Electrical Safety IEC 61010/EN61010, IEC 61557-7/EN 61557-7 Maximum Operating Voltage (Ume) 690 V Protection Levels CAT lll, 600V to ground Electrical Specifications...
- Page 8 Nominal Voltage 40 to 690 VAC Frequency Range (fn) 15 to 400HZ Current pickup 1 mA Nominal Test current (in per phase) 1 mA...
