HDMI HVY01 Operating Instructions

HDMI Converter
Operating Instructions
FEATURES
Two digital HDMI 19p female port(100%digital)

Convert HDMI input to RGB HV/YPbPr/YCbCr output with a 15 pin HD-sub(VGA

style)jack.
Two channels input can be switched easily

Users can choose RGBHV or component(YPbPr/YCbCr)output with a switch

RGB 4:4:4(8bits)digital input

YPbPr 4:4:4 or YCbCr 4:2:2 digital output

Stereo high-quality analog or digital/optical audio output(s/PDIF format)

HDCP Compliant &DVI 1.0 Compliant

Supports 1.5Gbps signaling rate

Supports HD format from 480i to 1080p

Green LED light indicates the connection status

1
TABLE OF CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Maintenance
Product Service
SPECIFICATIONS
Operating Temperature range ......................................-15 to +55ºC(-41 to +95°F)
Operating temperature range.................................... -5 to +35 ºC (-41 to +95°F)
Operating humidity range................................... 5 to 90 % RH (no condensation)
Input video Signal..............................................................................5 volts p-p(TTL)
Power Supply................................................................................................... 5VDC
Video Amplifier Bandwidth..........................................................165MHz(Max)
Dimensions..................................................................... 72mmW x 50mmH x 23mmD
Mass..........................................................................................................0.36 Kgs
Note: Specifications are subject to change without notice. Mass and dimensions are
approximate.
PACKING CONTENTS
1) Main Unit. HDMI-VGA Converter
2) 5VDC 1A Power Supply.
3) Operating Instructions
4) VGA to RCA cable
5) Toslink cable

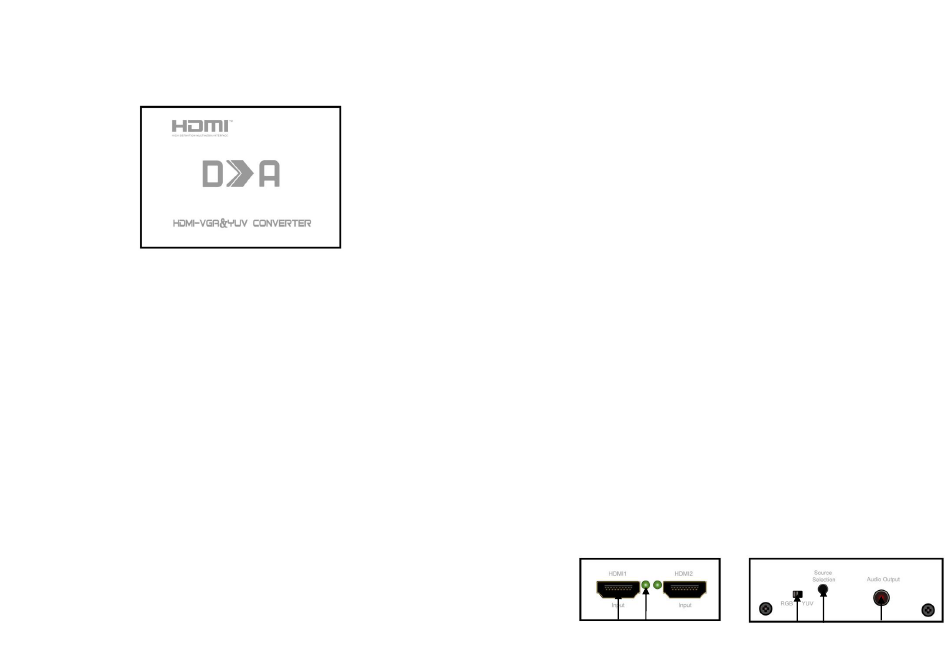

PANEL DESCRIPTIONS
Lift Panel
① ②
Front Panel
③ ④ ⑤
