Summary of Contents for Pilz PNOZ mc0p

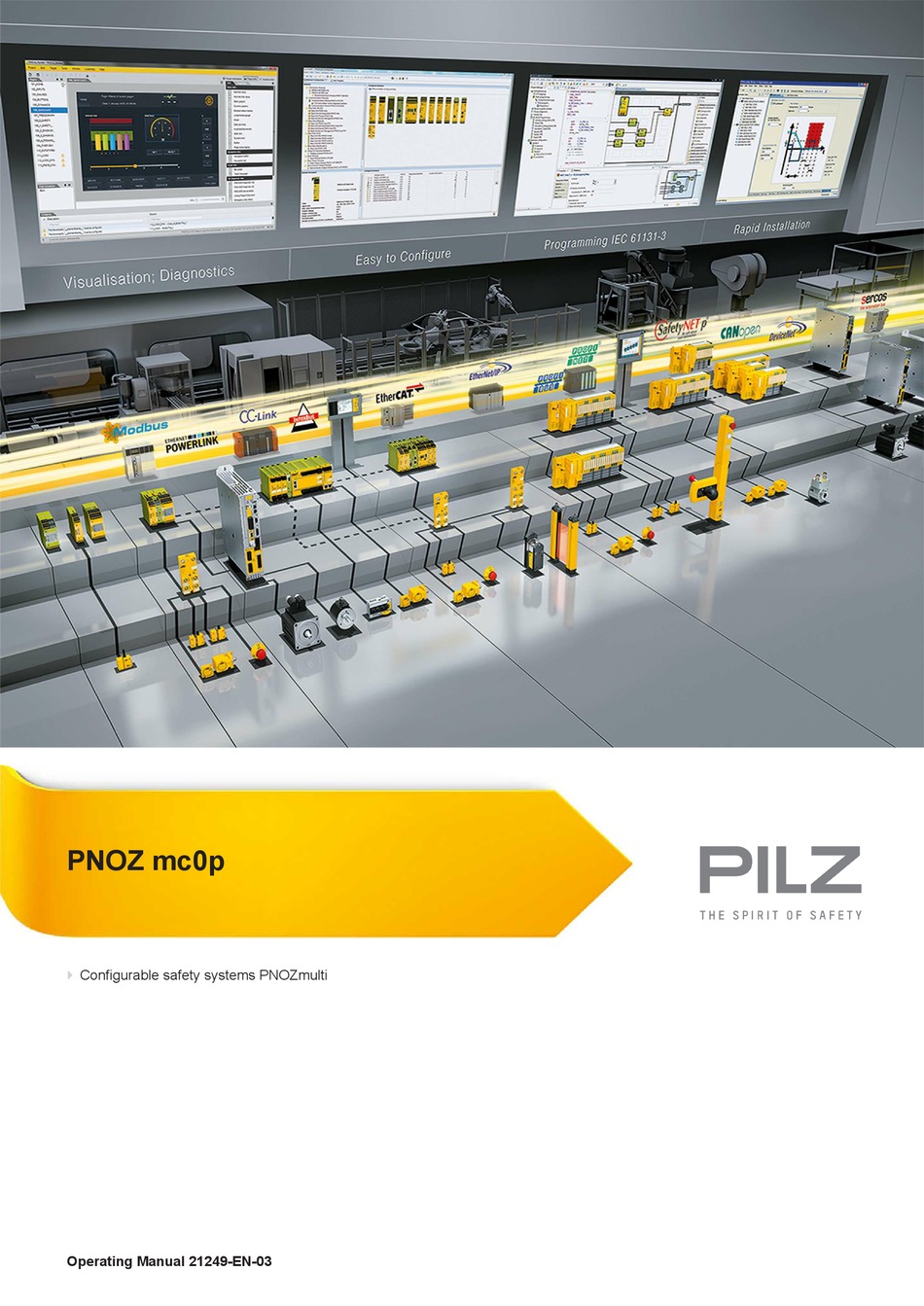

  • Page 1 PNOZ mc0p Configurable safety systems PNOZmulti Operating Manual 21249-EN-03...
  • Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
  • Page 3: Table Of Contents

    General installation guidelines Dimensions in mm Connect power supply to base unit and fieldbus module Section 6 Commissioning General wiring guidelines Connection Connection example Section 7 Operation Section 8 Technical details Section 9 Order reference Product Accessories Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 4: Operating Manual Pnoz Mc0P

    Introduction Introduction Validity of documentation This documentation is valid for the product PNOZ mc0p. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
  • Page 5 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 6: Overview

    Scope Expansion module PNOZ mc0p Jumper Unit features Using the product PNOZ mc0p: Power supply used to supply voltage to the fieldbus modules PNOZ mc5p or PNOZ mc5.1p LWL. The product has the following features: Interface to connect the base unit and a fieldbus module Galvanic isolation Max.
  • Page 7: Safety

    Damage can be attributed to not having followed the guidelines in the manual Operating personnel are not suitably qualified Any type of modification has been made (e.g. exchanging components on the PCB boards, soldering work etc.). Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 8: Disposal

    Do not open the housing or make any unauthorised modifications. Please make sure you shut down the supply voltage when performing maintenance work (e.g. exchanging contactors). Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 9: Function Description

    Function description Functions The PNOZ mc0p power supply provides the fieldbus module with the necessary internal supply voltage. This way the fieldbus module remains available even when the base unit is switched off. The power supply is connected to the base unit and fieldbus module via jump- ers.
  • Page 10: Installation

    Connect power supply to base unit and fieldbus module Connect the modules as described in the operating instructions for the base units. Install the power supply to the left between the base unit and fieldbus module. Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 11: Commissioning

    Commissioning Commissioning General wiring guidelines Please note: The PNOZ mc0p can be supplied by a separate power supply (see Connection example [ 12]). The power supply must meet the regulations for extra low voltages with protective separation (SELV, PELV). The torque setting of the screws on the connection terminals is specified under...
  • Page 12: Connection Example

    Commissioning Connection example Redundant power supply PNOZ m1p Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 13: Operation

    Operation The unit is ready for operation when the "POWER" LED is lit continuously. Status indicators: "POWER" is lit: Supply voltage is applied to PNOZ mc0p. "BASE" is lit: Supply voltage applied to base unit. Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 14: Technical Details

    In accordance with the standard EN 60068-2-27 Acceleration Duration 11 ms Max. operating height above sea level 2000 m Airgap creepage In accordance with the standard EN 61131-2 Overvoltage category Pollution degree Rated insulation voltage 30 V Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 15 Spring-loaded terminals: Terminal points per connec- tion Stripping length with spring-loaded terminals 9 mm Dimensions Height 94,0 mm Width 22,5 mm Depth 121,0 mm Weight 125 g Where standards are undated, the 2007-05 latest editions shall apply. Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 16: Order Reference

    Product type Features Order No. KOP-XE Jumper 774 639 Connection terminals Product type Features Order No. Set spring terminals 1 set of spring-loaded terminals 783 400 Set screw terminals 1 set of screw terminals 793 400 Operating Manual PNOZ mc0p 21249-EN-03...
  • Page 17 Front cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
