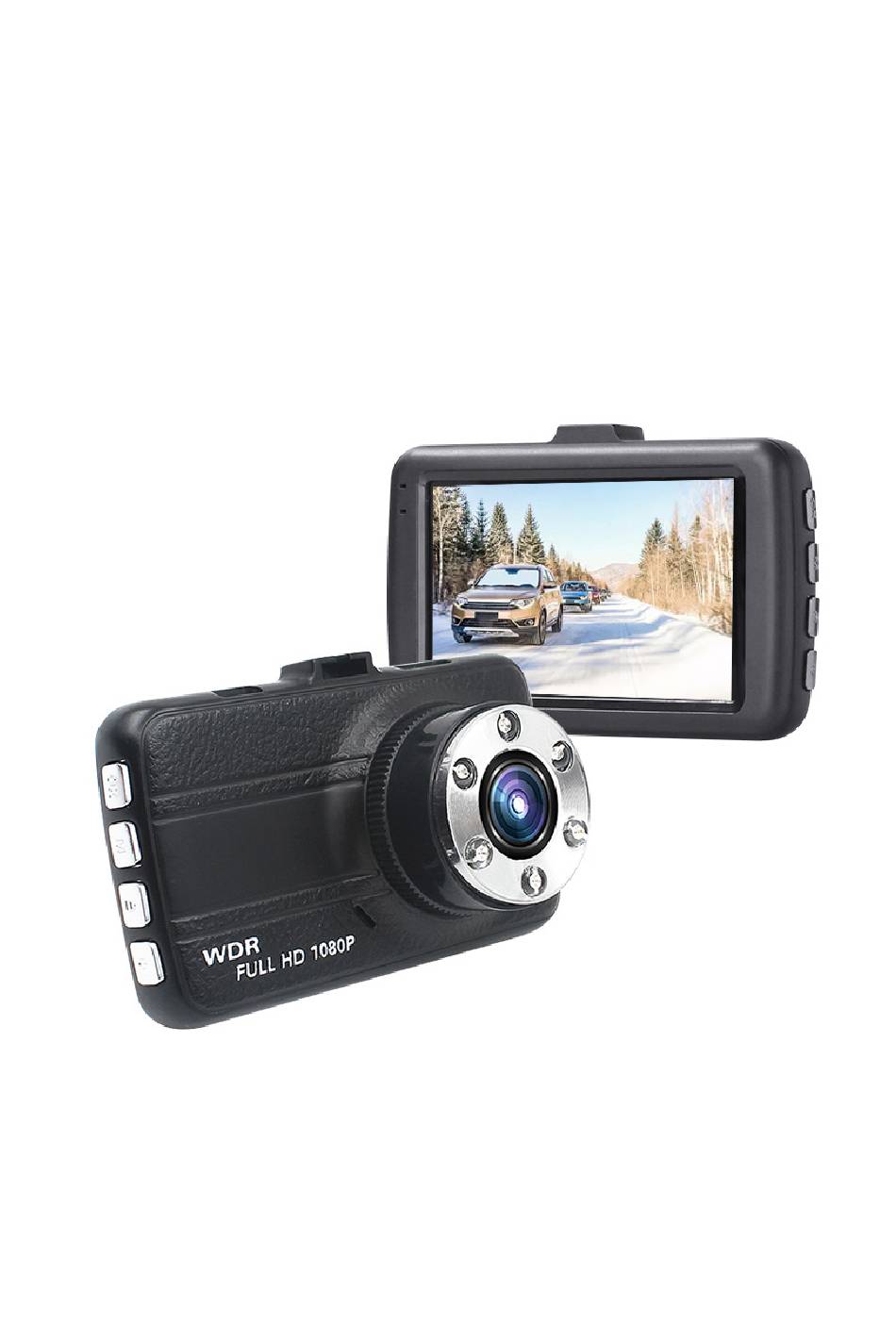

- Page 1 PNI VOYAGER S1250 USER MANUAL / MANUAL DE UTILIZACIÓN HASZNALATI UTASITTAS / INSTRUKCJA OBSŁUGI MANUAL DE UTILIZARE DASHBOARD DVR CAMERA / CÁMARA DVR AUTO AUTO DVR CAMERA / CAMERA DVR AUTO...
- Page 2 Caution! Read before use! 1. Please use only class 10 (or better) memory cards with this device, otherwise due to incompatibility, errors may occure like “file error” or “SD card error”. This device supports microSD memory cards up to 32Gb. 2.
- Page 3 USER GUIDE 1. ON/OFF: Short press power button to power on the device; long press to power off the device. Short press in video or photo mode to activate night mode. Note: The camera automatically powers on when you connect the power supply.
- Page 4 OVERVIEW 12 13 1. miniUSB port 9. M (Mode) 2. Windscreen mounting bracket 10. Lock 3. miniHDMI - AV output 11. Power (ON/OFF) 4. microSD card slot 12. Reset 5. Up 13. Microphone 6. Menu 14. Speaker 7. Down 15. IR LEDs 8.
-
Page 5: Video Recording
Video recording In Video mode, in the upper left corner of the screen the icon will be displayed, press OK to start recording. icon will be flashing in the upper left corner of the screen. To stop recording press OK button. The DVR camera splits the recordings into 3 minute files by default. -
Page 6: Taking Pictures
Taking pictures 1. Press Mode key untill the icon will be displayed in the upper left corner of the screen. 2. To take a picture press OK button. Note: Hold still the camera to take a clear picture. Playback 1. Browsing files: Press Mode key to switch to palyback mode. Browse files using Up/Down buttons and press OK to play back a file. - Page 7 2. Delete and protect: In playback mode, press Menu key and select one of the 2 options: “Delete” or “Protect”. Select “Delete”, then choose: “delete current?” to delete the selected file or “delete all?” to delete all the files on the memory card (except the protected files).
-
Page 8: General Settings
SETTINGS General settings In any mode, press Menu button twice to open general settings menu. Use Up/Down keys to brows though settings. To select and confirm settigns press OK button. Date/Time Set the current date and time Auto Power Off Adjust the power off time out timer Beep sound Activate / Deactivate key press beep... -
Page 9: Infrared Light
Display auto off Adjust the turn off screen time out timer. Infrared light Activate / Deactivate night mode Frequency 50 Hz or 60 Hz License No set Select to set the car plate number. To set the car license number, select “License No set“. Press Mode key to set the license plate number, use Up/Down buttons to browse letters/numbers, press OK button to confirm. -
Page 10: Default Setting
Format Select to format the memory card Default setting Select to return to factory settings Version Select to check current firmware version Video settings In video Mode, press Menu button to open video settings. Resolution Select video recording resolution Cyclic Record Adjust the file split limit or deactivate cyclic recording... - Page 11 Activate / Deactivate WDR function This function allows recording images in a higher dynamic range Exposure Adjust image exposure level Motion Detection Activate / Deactivate motion detection triggered recording Microphone Activate / Deactivate audio recording Date Stamp Activate / Deactivate date and time stamp on the recorded files Gravity sensing Adjust sensitivity level for the gravity...
-
Page 12: Photo Settings
Photo settings In photo mode, press Menu button to open photo settings. Capture mode Select ‘single’ to take a instant shot, or ‘timer‘ to take a timer delayed picture Resolution Select photo rezolution Sequence Activate / Deactivate burst photo mode Quality Select image quality level... - Page 13 Sharpness Adjust image sharpness level White Balance Adjust image white ballance level, according to the environment Color Set an image color effect Adjust light sensitivity level of the image sensor Exposure Adjust image exposure level Anti-Shaking Activate / Deactivate image stabilizer Quick Review Adjust image preview time after...
