These are instructions for swapping the extruder stepper motor wire pairs on a Clay DeltaWASP
3D printer.
This part replacement will require the use of safety knife, a pair of tweezers.
Before you begin, do the following:
Turn off the DeltaWASP 3D printer
•
Unplug power and USB cables
•

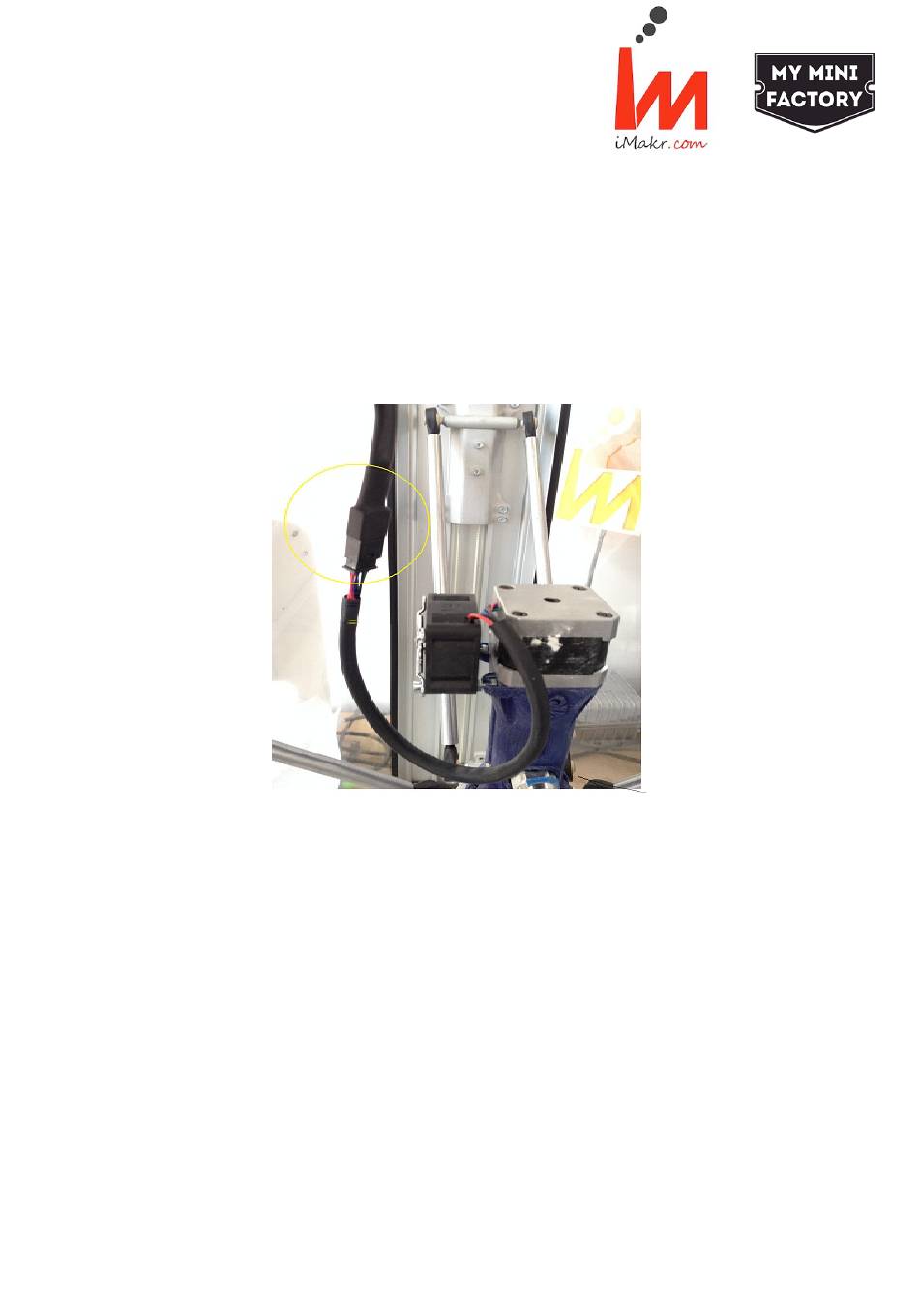

1. Disconnect the clay extruder connector shown in the picture.
2. Use a safety knife or a blade to carefully cut and remove the heat shrink tube as shown in the
picture. Make sure to cut the heat shrink very gently to avoid cutting the cable wires.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DeltaWASP and is the answer not in the manual?

Questions and answers

Summary of Contents for iMakr DeltaWASP

  • Page 1 These are instructions for swapping the extruder stepper motor wire pairs on a Clay DeltaWASP 3D printer. This part replacement will require the use of safety knife, a pair of tweezers. Before you begin, do the following: Turn off the DeltaWASP 3D printer •...
  • Page 2 3. As you can see in the below pictures, the cable is composed of six wires within a single connector which connects to the extruder extension cable connector. Out of these six wires, two wires are for the stepper motor cooling fan and four wires are for the stepper motor. Further, out of four wires of the stepper motor, Pink &...
  • Page 3 9. Connect the extruder cable back into the extruder extension cable connector. The swapping of the clay extruder stepper motor wires is now complete, plug in your Clay DeltaWASP 3D printer, power it on, load filament, and return to printing. For further assistance with...
  • Page 4 DeltaWASP 2040 3D printer, contact iMakr Technical Support at support@imakr.com. -iMakr Engineering Team...
