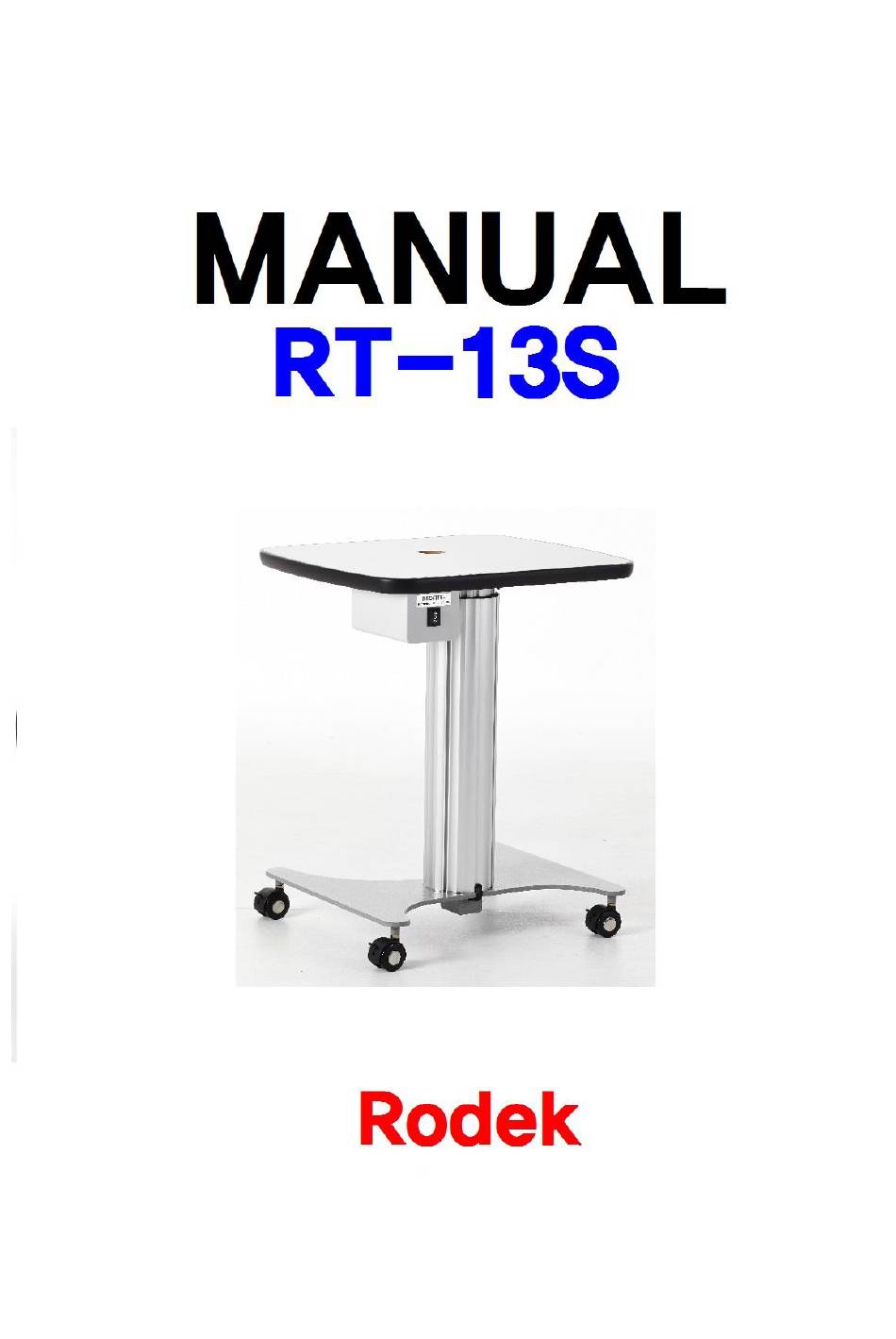

Summary of Contents for RoDEK RT-13S
-
Page 2: Table Of Contents
■ Table of Contents Preface---------------------------------------------------------------1 Safety Alert Signs----------------------------------------------------2 Safety precautions---------------------------------------------------4 Management---------------------------------------------------------5 Names and Function of Each Part----------------------------------6 User’s Guide----------------------------------------------------------7 Problems-------------------------------------------------------------10 References------------------------------------------------------------11 Management and Inspection----------------------------------------11 Fuse Replacement----------------------------------------------------11 Warranty Period----------------------------------------------------13 Precautions When Using-------------------------------------------13 Storage After Use & Maintenance --------------------------------14 Detailed Description------------------------------------------------14 Rough Map of company ------------------------------------------------15 ■... -
Page 3: Safety Alert Signs
Operating Environment Use the system under the following normal conditions: Operation : +5 to +40°C, 30 to 80% r.h., 70 to 106 kPa Make sure the system is properly plugged into the power source before use. Use the Power Supply (SMPS) within the range of 220-240V~ ... - Page 4 Symbols and Definitions Template for a prohibition sign (red circle and diagonal); The black symbol or text shall be placed centrally on the background and shall not obliterate the cross bar, or a supplementary text next to the sign. Template for a mandatory action sign (blue background); The white symbol or text shall be placed centrally on the background, or a supplementary text next to the sign.
-
Page 5: Safety Precautions
■ Safety Precautions Symbol Description Do not disassemble the table for repair. Electric shock may occur. Contact the sales shop for repairs. Do not place the table near water or another area with liquid. Fire or electric shock may occur. Connect the table to a single-phase AC power plug. -
Page 6: Management
■ Management Operator’s Management Other than what is indicated in this manual, for safety reasons, do not perform administrative maintenance tasks on the equipment; have qualified service people complete all maintenance and repairs. The items listed below can be managed by customers: ... -
Page 7: Names And Function Of Each Part
■ Name & Function of Each Part... -
Page 8: User's Guide
Name & Function of Each Part ① TABLE: Mounting base ② MAIN POWER Switch: The switch to turn ON & OFF the MAIN POWER ③ UP & DOWN Switch: The switch to turn UP & DOWN the table ④ BASE: Used to secure to the table to the floor ⑤... - Page 9 Operation Method and Procedures ① Insert the POWER CABLE into the input socket at the bottom of the equipment and connect it to a commercial power supply. Push the green switch on the control panel at the left of the ②...
- Page 10 Press the UP(▲)/DOWN(▼) Switch at the lower of the table to ③ adjust the table’s height. ④ Press the UP(▲)/DOWN(▼) switch to return the height of table to its original position. ⑤ Push the POWER switch on the control panel to the “I” position. The green light will turn off (POWER OFF).
-
Page 11: Problems
■ Problems Solutions Do not disassemble the table. You may get an electric Warning shock. Contact the sales shop for repairs. Do not open the cover. You may get an electric shock. Caution Contact the sales shop for repairs. Please refer to the following checklist if any problems occur. For other cases, contact the sales shop. -
Page 12: References
■ Reference Specifications and Performance Up and down moving range of table: 670~970mm Table Size: 550x500 Power Supply: 220-240V~ 50/60Hz Total Weight: approx. 22Kg Allowable weight on table: 60kg Maximum power consumption(Full road): 50VA ※... - Page 13 Open the fuse holder located at the bottom of the power input socket with a screwdriver. Replace the FUSE with a new one (250V F5AL). Cleaning of the External Cover Do not open the cover. Electric shock may occur. Caution Contact the sales shop for repairs.
-
Page 14: Warranty Period
When cleaning the external cover or the operation panel, use a soft cotton cloth and, if the dirt is severe, apply mild kitchen detergent to the cloth and wipe off carefully. ■ Warranty Period The warranty period of this product is one year from the date of purchase. -
Page 15: Storage After Use & Maintenance
Use the specified power frequency, voltage, and capacity (or power consumption). As specified by the manufacturer or supplier of the product using a different power line safety is not guaranteed. Observe the following precautions when using the equipment. Check the switch for normal connection and proper operation. ... -
Page 16: Detailed Description
Clean the accessories, power cords, etc. before storage. Clean the equipment thoroughly for future use. ■ Detailed Description 1. Manufacturer Name and Address • Company Name: Rodek Co.,Ltd. • Address: 61, Jikji-daero 456beon-gil, Heungdeok-gu, Cheongju-si, Chungcheongbuk-do, 361-290, Korea • TEL: +82-43-274-2520 • FAX: +82-43-275-2520 •... -
Page 17: Rough Map Of Company
■ Rough Map of the Company -16-...
