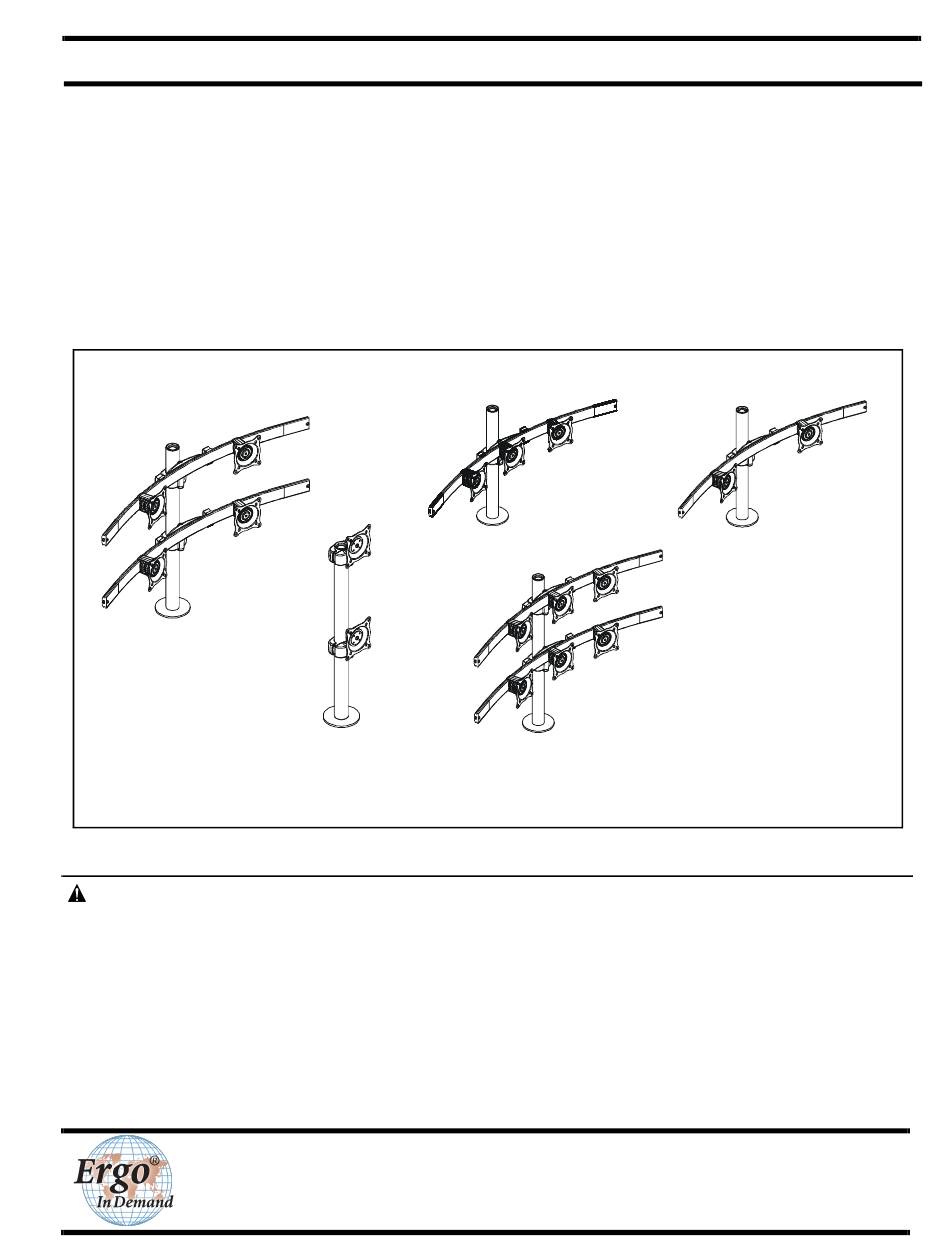

I N S T A L L A T I O N I N S T R U C T I O N S
Horizontal And Vertical Table Stands
and Accessories
Model: KTG-Series
The KTG-Series is a free standing, pole mount solution for multiple displays.
KTG-440 / KTG-445
BEFORE YOU BEGIN
CAUTION!
To prevent damage to the Kit, which could affect or void the Factory warranty, and to the equipment that will be
attached to it, thoroughly study all instructions and illustrations before you begin the installation.
KTG-320 / KTG-325
KTG-230
KTG-220 / KTG-225
KTG-330
4900 Industry Drive
Central Point, OR 97502
1-800-888-6024
www.ergoindemand.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KTG Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ergo In Demand KTG Series

Summary of Contents for Ergo In Demand KTG Series

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Horizontal And Vertical Table Stands and Accessories Model: KTG-Series The KTG-Series is a free standing, pole mount solution for multiple displays. KTG-320 / KTG-325 KTG-220 / KTG-225 KTG-440 / KTG-445...

  • Page 2: Tools Required For Installation

    Model: KTG-Series Installation Instructions TOOLS REQUIRED FOR INSTALLATION • Drill and 1/2" drill bit (larger if mounting through a flat surface and using cable management) • Phillips Head Screw Driver • 3/4" Wrench • 3/32" Hex Key (provided) • 5/32" Hex Key (provided) •...

  • Page 3: Item Description

    Installation Instructions Model: KTG-Series Table 1: Parts QUANTITY By MODEL ITEM DESCRIPTION CENTRIS HEAD ASSEMBLY, Pole Mount ARRAY ASSEMBLY, Dual, 27" ARRAY ASSEMBLY, Dual, 34" ARRAY ASSEMBLY, Triple, 42" ARRAY ASSEMBLY, Triple, 54" PIPE CAP, 1.75 OD POLE, Freestand, 14" POLE, Freestand, 28"...

  • Page 4: Assembly And Installation

    Model: KTG-Series Installation Instructions (160) (10 Includes 210, 220, 230) (180) (200) (120) (190) (20) (170) (130) (140) (30) (110) (100) (40) (80) (50) (70) (60) Figure 1: Parts ASSEMBLY AND INSTALLATION (50, 60, 70) Grommet Mount Installation To install on a flat surface: 1.
  • Page 5 Installation Instructions Model: KTG-Series 3. Secure pole mount back (240) to pole mount front and pole by tightening two BHCS (260) using a 5/32" hex key. (210) (60) Pole Pole Mount front (220) with Array (230) (250) Figure 3: Mount Centris Head with Pole Clamp (260) NOTE: Equally tighten screws (230) against front pole Pole Clamp Back (240)
  • Page 6 Model: KTG-Series Installation Instructions Attach Centris Head to Recessed Mount Display M4 x 12mm Phillips Pan Head Screw (30) NOTE: Refer to Table 1 to select the applicable screw and spacer combination. 1. Uninstall end lock using the 5/32" hex key (120). (see Figure 9) 2.
  • Page 7 NOTE: Repeat previous steps for each additional display. The KTG Series mount also allows a full 360 deg. of display rotation with a maximum pitch range of 15° up 8. Reinstall end locks into mounting rail using the 5/32"...

  • Page 8: Cable Management

    Figure 16: Cable Management Knob Figure 15: Display Pitch and Roll Adjustment CABLE MANAGEMENT The KTG Series mount includes cable management features used to properly route and secure display cables. To use the cable management features: 1. Connect cables to display.
