Summary of Contents for Beyond diplomat

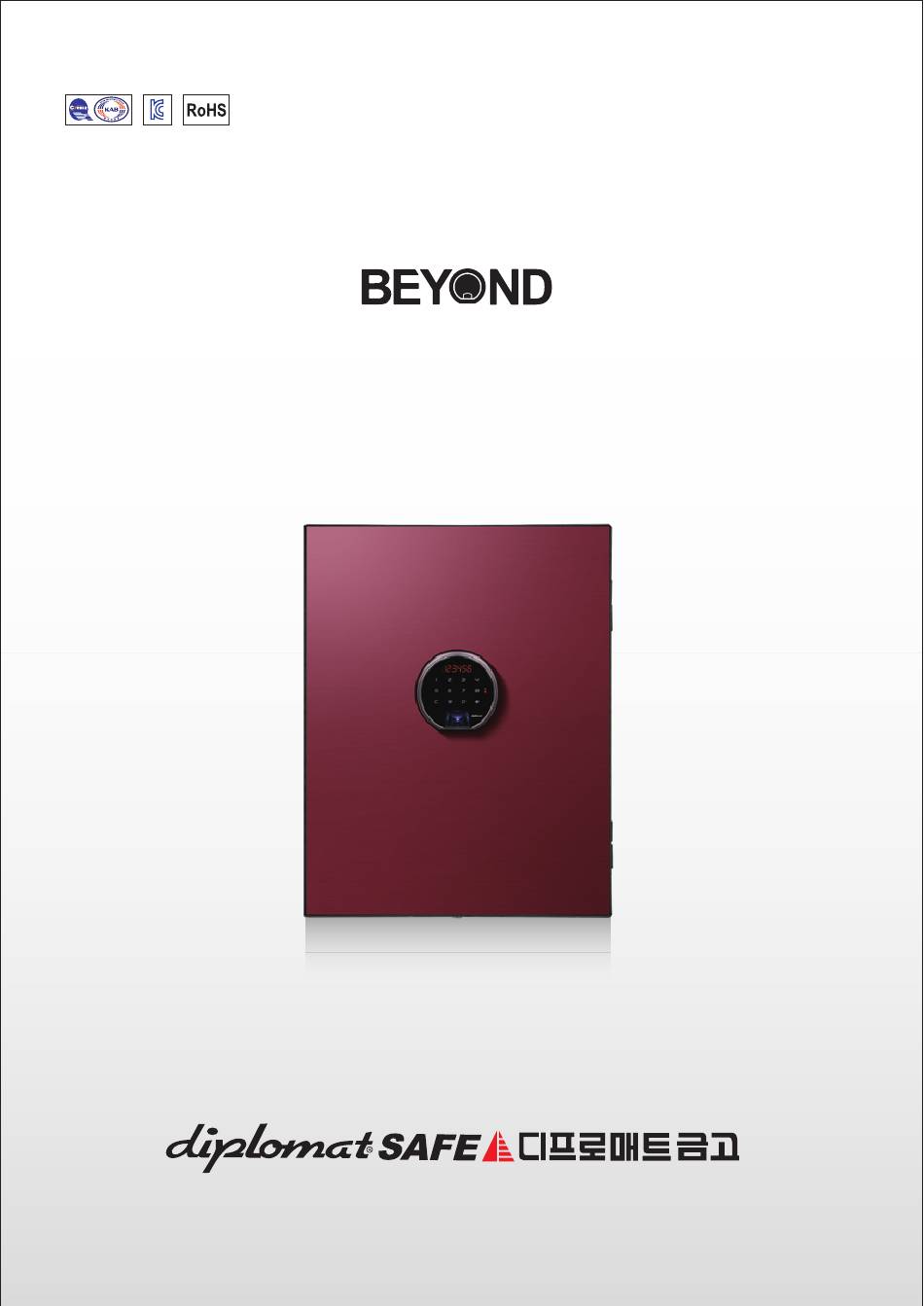

  • Page 1 INSTRUCTION...

  • Page 2: For Safety

    FOR SAFETY Followings are the safety instructions & rules. Prior to using the safe, please read the instructions carefully. Cautions when placing the safe. The safe is so heavy that it is to be handled very carefully. Never move the safe in door open. Place the safe on flat floor.
  • Page 3 1 ) When touching the pad, LobAtt appears on FND. 2) The battery icon alights on the pad. * Battery life span : 1 year (Average openings 3 times a day) * Even though batteries completely exhausted, the registered codes and finger-prints are not erased. BEYOND User Manual...
  • Page 4 2. Open with Code Touch Pad User Code Open the Door 1 ) Touch Pad 2 ) Touch User Code 3 ) Touch # 4 ) Open the door ( Bi sound, Pad lighted ) ( Bi sound ) ( Melody, OPEnd on FND ) ( Factory Code 1 2 3 4 ) * NOTE : If a wrong code entered, bi-ric sound and ErrOr on FND.
  • Page 5 1) No response against pad touch. 2) Paralysis Rest Time is indicated on FND as Min-Sec. In case of paralysis rest time 4 minutes and 29 seconds, 4_29 indicated on FND. 3) After 5 minutes, paralysis gets released. BEYOND User Manual...

  • Page 6: Led Light

    6. Delete Finger-prints Keep door open. 1 ) Press M Button on door back. 2 ) Touch # 3 ) Touch 3 4) Touch # . ( Bi sound ) ( Bi sound ) ( Melody, CLEAr on FND ) If one finger-print is removed, all the registered finger-prints are erased simultaneously.

  • Page 7: Multi Mode

    1 ) Touch Pad 2 ) Touch 1st Code or 3 ) Touch # 4 ) Open the door ( Bi sound, Pad lighted ) ( Bi sound ) ( Melody, OPEnd on FND ) 2nd Code BEYOND User Manual...
  • Page 8 10. Dual mode (Finger-print + Code) ㆍ Code and finger-print should be entered in a row for opening. * Dual mode and multi mode can not be used simultaneously. Finger-print 1 ) Press M Button on 2) Touch 5 3 ) Touch # 4) If there is no registered fingerprint ( Bi sound ) ( Bi sound )
  • Page 9 1 ) Touch Pad 2 ) Touch 1st Code 4 ) Touch 2nd Code 6 ) Open the door ( Bi sound, Pad lighted ) 3 ) Touch # 5 ) Touch # ( Melody, OPEnd on FND ) BEYOND User Manual...

  • Page 10: Alarm Setting

    12. Code and Sound Hide 1 ) Press M Button on door back. 2 ) Touch 7 . 3 ) Touch # ( Bi sound ) ( Bi sound ) ( Melody, Hide on FND ) Unset 1 ) Press M Button on door back. 2 ) Touch # 3 ) Touch 7 4) Touch #...
  • Page 11 2) Attach panel inside door frame. go down to fixing hole. Detach Panel Hinge Hole 1) Put finger into hinge hole on upper right side of 2) Lift it up to detach. door frame and push panel outward to detach. BEYOND User Manual...
  • Page 12 14. Open with Override Key(Optional) If you forget your code, you may open your safe Door(without Panel) using override key. 1) Detach Panel. (See previous page.) Then you can find the key hole. 2) Turn override key clockwise and open the door. Key Hole * Please keep override key apart from your safe.
