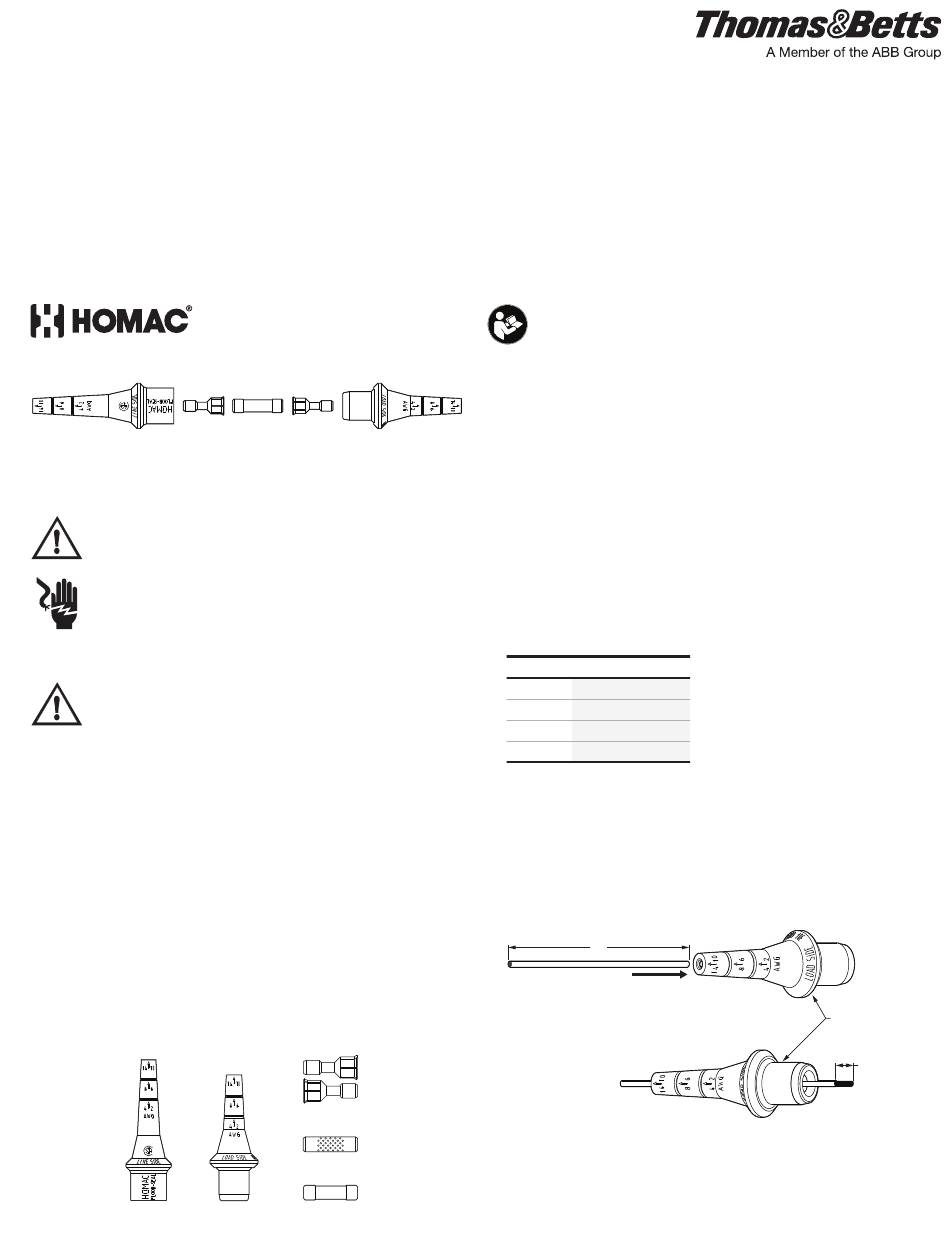

Thomas & Betts 65U Installation Instructions

1 of 2
I N STA LL ATI ON INSTR UC TI O N S
Street lighting kit, 65U / SLK / SDK
Inline fuse / Disconnect
WARNING:
power before installation
CAUTION:
qualified electrician in accordance with
national and local electrical codes.
CAUTION:
of wiring and molded connector bodies
before beginning installation. These
instructions are not intended as a
substitute for adequate training or
experience in such safety practices. These
instructions do not attempt to provide for
every possible contingency.
Contents:
• (A) Line side (Receptacle) housing
• (B) Load side (Plug) housing
• (C) Fuse holder
• (D) Connecting link (SDK only)
• (E) Fuse (Not included)
• Assembly Dowel
• Lubricant
(A)
Risk of shock, disconnect
Product must be installed by a
Identify LINE and LOAD sides
(C)
(D)
(B) (E)
IMPORTANT
Read and understand all instructions and
safety information before use. Be aware
of proper usage and potential hazards.
Step 1
• Measure cable diameter. Refer to Table 1, select
corresponding section on molded sleeve. Cut off remaining
sections of housing to size referenced in Range column,
Table 1. Example: If cable OD is 0.390 inch, it falls within the
AWG 4-2 range - cut at 4-2 line.
Table 1
Range Cable O.D. (inch)
14-10 0.120-0.205
8-6 0.195-0.330
4-2 0.320-0.430
Step 2
• Thoroughly clean approximately 8" along load side cable end.
Apply lubricant and insert cable through small hole in load
side (plug) housing. Push through a sufficient distance to
permit 3/8" stripping of insulation. Strip insulation a distance
of 3/8" as shown.
8"
Insert
Load side
(plug) housing
⅜" Strip
length
