November 2010
Product Specification
Industrial micro IDE Flash Module (MIF)
- HERMIT Series -
Doc-No: 100-XMIFHA-02V0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HERMIT Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Apro HERMIT Series

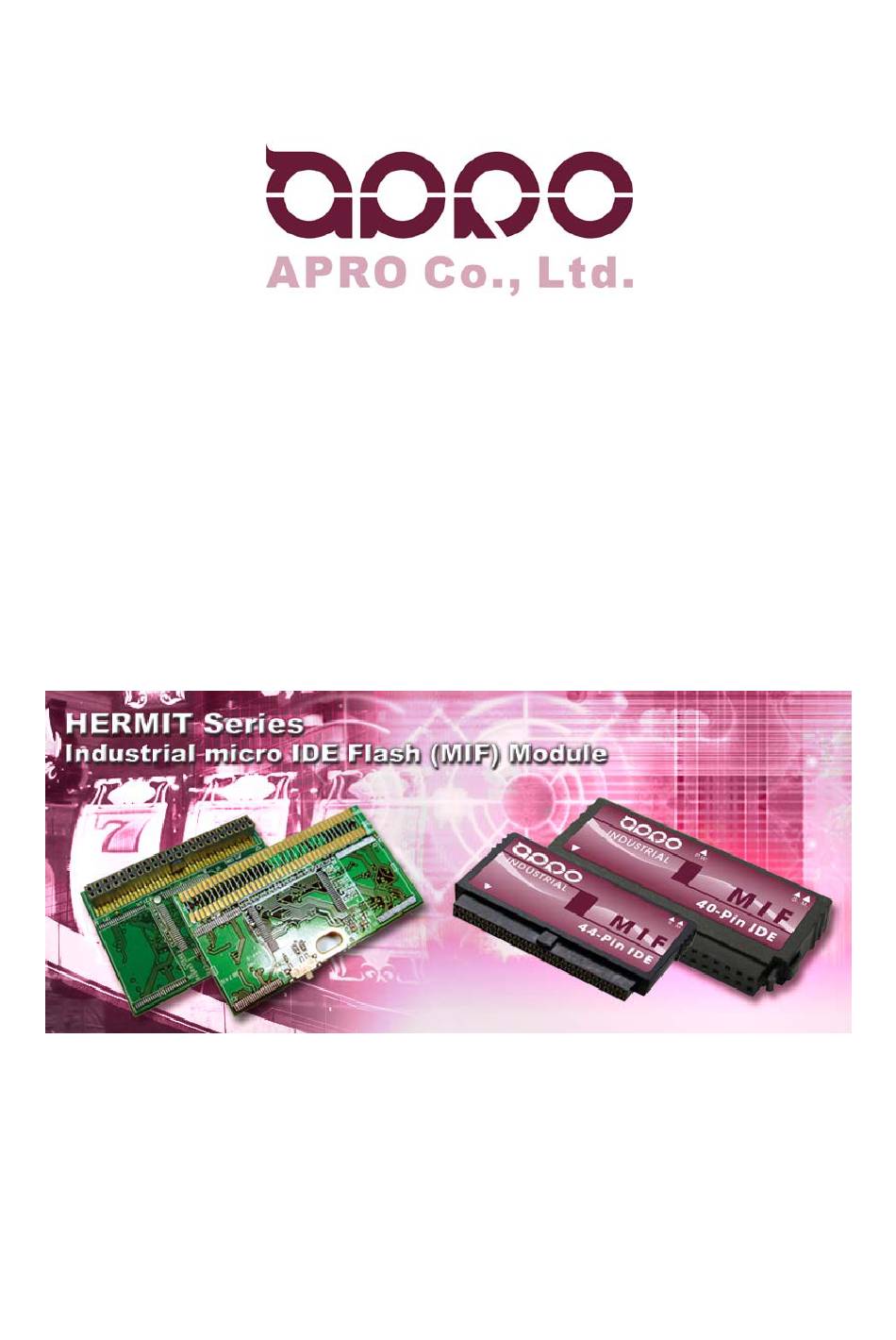

  • Page 1 November 2010 Product Specification Industrial micro IDE Flash Module (MIF) - HERMIT Series - Doc-No: 100-XMIFHA-02V0...
  • Page 2 This document is for information use only and is subject to change without prior notice. APRO Co., Ltd. assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material. No part of this document may be reproduced, transmitted, transcribed,...

  • Page 3: Table Of Contents

    ......................12 BSOLUTE AXIMUM ATING 3.4.2..................12 ECOMMENDED PERATING ONDITION 3.4.3. DC C ........................12 HARACTERISTICS 3.4.4........................13 IMING PECIFICATIONS PIO M ............................... 13 Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.
  • Page 4 ..........................21 EMOVING 5.5. IDE D ....................21 EVICE ETUP ETECTION 5.6. & F .......................... 21 ARTITION ORMAT ..........................23 RDERING NFORMATION ......................24 PPENDIX IMITED ARRANTY Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 5: Introduction

    40/44-pin micro IDE Flash (MIF) Disk Hermit Series, it uses intelligent controller which manages interface protocols, data storage and retrieval as well as ECC, defect handling and diagnostics, power management and clock control. Figure 1 shows a block diagram of the used high tech Industrial 40/44-pin micro IDE Flash (MIF) Disk Hermit Series controller.

  • Page 6: Scope

    APRO Industrial 40/44-pin MIF disks are fully compatible with the ATA/ATAPI-6 standard. 1.4. Technology Independence - Static Wear Leveling In order to gain the best management for flash memory, APRO Industrial CF Cards – Hermit series supports Static is to to manage the Flash system.

  • Page 7: Product Specifications

    Note: (1). All values quoted are typically at 25oC and nominal supply voltage. (2). Testing of the Industrial 40/44-pin micro IDE Flash (MIF) Disk Hermit Series maximum performance was performed under the following platform: - Computer with AMD 3.0GHz processor...

  • Page 8: System Reliability

    Vertical Type Horizontal Type 50.25 mm 48.00 mm Length: 27.27 mm 32.60 mm Width: 5.80 mm 4.50 mm Thickness: 15 g 10 g G. W. : Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.
  • Page 9 Figure 2 - 40-pin Vertical Type MIF Figure 3 – 40-pin Horizontal-leftward Type MIF Figure 4 - 40-pin Horizontal-rightward Type MIF Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.
  • Page 10 Figure 5 - 44-pin Vertical Type MIF Figure 6 - 44-pin Horizontal-leftward Type MIF Figure 7 - 44-pin Horizontal-rightward Type MIF Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 11: Capacity Specifications

    2.6. Capacity Specifications APRO Industrial 40/44-pin micro IDE Flash (MIF) Disks are built-in mainly Samsung NAND Type SLC Flash memory chips. The Table 6 shows the equipollent part number of applied Samsung Flash memory chips for each card. Table 6: Card Configuration vs. Samsung NAND SLC part number Card Capacity Samsung SLC Flash Memory Part Number * Q’TY...
  • Page 12 Unformatted Capacity Default Cylinder Default Head Default Sector Capacity 256,000 128MB 1,000 512,000 256MB 1,015 1,023,120 512MB 2,031 2,047,248 1,024MB 4,063 4,095,504 2.04GB 8,146 8,211,168 16,000 16,128,000 Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 13: Interface Description

    Host Data Bit 2 HDB[13] Host Data Bit 13 HDB[1] Host Data Bit 1 HDB[14] Host Data Bit 14 HDB[0] Host Data Bit 0 HDB[15] Host Data Bit 15 Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 14: Electrical Description

    4. Signal usage in Ultra DMA mode. 3.3. Electrical Description The Industrial 40/44-pin micro IDE Flash (MIF) Disk Hermit Series is optimized for operation with hosts. .Table 9: describes the signals of 40/44-pin interface. Table 9: Signal Description Pin No.

  • Page 15: Electrical Specification

    Vcch = 5V ±10% or 3.3V ± 10% Vccf = 3.3V ± 10% Vccf = 3.3V ± 10% Ta = 0°C to 70°C Ta = -40°C to 85°C Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 16: Absolute Maximum Rating

    Output low voltage 4mA) 2.4 (at Output high voltage 1mA) Operating CurrentV Sleep Mode Operation Input Leakage Current ±10 Output leakage current ±10 μA Input/output Capacitance Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 17: Timing Specifications

    HIOR-/HIOW- to address valid hold Read data valid to IORDY active (min.) IORDY setup time IORDY pulse width (max.) 1250 1250 1250 1250 1250 IORDY assertion to release (max.) Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 18: Multiword Dma

    HIOR- negated width (min.) HIOW- negated width (min.) HIOR- to DMARQ delay (max.) HIOW- to DMARQ delay (max.) CS1-, CS0- valid to HIOR-/HIOW- CS1-, CS0- hold DMACK- Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 19: Ultra Dma Mode

    Ultra DMA mode Figure 13: Ultra DMA Mode Data-in Burst Initiation Timing Diagram Figure 14: Ultra DMA Mode Data-out Burst Initiation Timing Diagram Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.
  • Page 20 Figure 15: Sustained Ultra DMA Mode Data-in Burst Timing Diagram Figure 25: Sustained Ultra DMA Mode Data-out Burst Timing Diagram Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.
  • Page 21 Setup and hold times for DMACK- (befo assertion or negation) Time from STROBE edge to negation of DMARQ or assertion of STOP (when sender terminate s a burst) Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 22: Command Descriptions

    Stan 96H or E2H Standby Immediate 94H or E0H Write Buffer Write Long Sector 32H or 33 H Write Multiple Write Sector or 31 Write Verify Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 23: Installation Procedure

    Blows are the important points for your attention to insert the MIF. Check the MIF housing to see if there are any damaged or loose parts and then check the femal connector carefully if they are intact. Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.
  • Page 24 Press it down gently and swing slightly a few times. If insertion is not smooth, DO NOT ATTEMPT TO INSERT FORCEFULLY. Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 25: Mif Removing

    Disk 1 may contain one extended partition, and a second MIF may contain a primary or extended partition. An extended partition may contain one or more logical MS-DOS drives. Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.
  • Page 26 When you run the fdisk and format commands, the Master Boot Record (MBR) and file allocation tables are created. The MBR and file allocation tables store the necessary disk geometry that allows MIF to accept, store, and retrieve data. Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 27: Ordering Information

    U : UDMA-4 mode : Controller version A : Auto PIO or UDMA mode A, B, C….. C : Reserved for specific requirement C : Conformal-coating Industrial micro IDE Flash (MIF) Module - HERMIT Series © 2010 APRO Co., Ltd.

  • Page 28: Limited Warranty

    In no event shall APRO be liable for any lost profits, lost savings or other incidental or onsequential dam ages arising out of the use of, or inability to use, this product.
  • Page 29  Email to rma@apro-tw.com.tw The description of the defect needs to be clear and complete in order for APRO to address the problem according to customer expectations. Without a clear description, APRO can only provide a basic test of the returned products.
  • Page 30 APRO cannot guarantee repair of any products beyond one year of End-of-Life due to limited availability of replac ement components. If repair components are not available, APRO will suggest equivalent products for p urchase and offer special pricing. 1.5. Shipping Charges...
  • Page 31 RMA is out of the warranty period   RMA or DOA terms apply, but it is determined by APRO’s RMA engineer that the defect was caused by abuse, misuse or unauthorized repair. 2.6. Package and Delivery to the customer We will properly pack the repaired product along with a RMA report.
