Summary of Contents for RGC 4110020

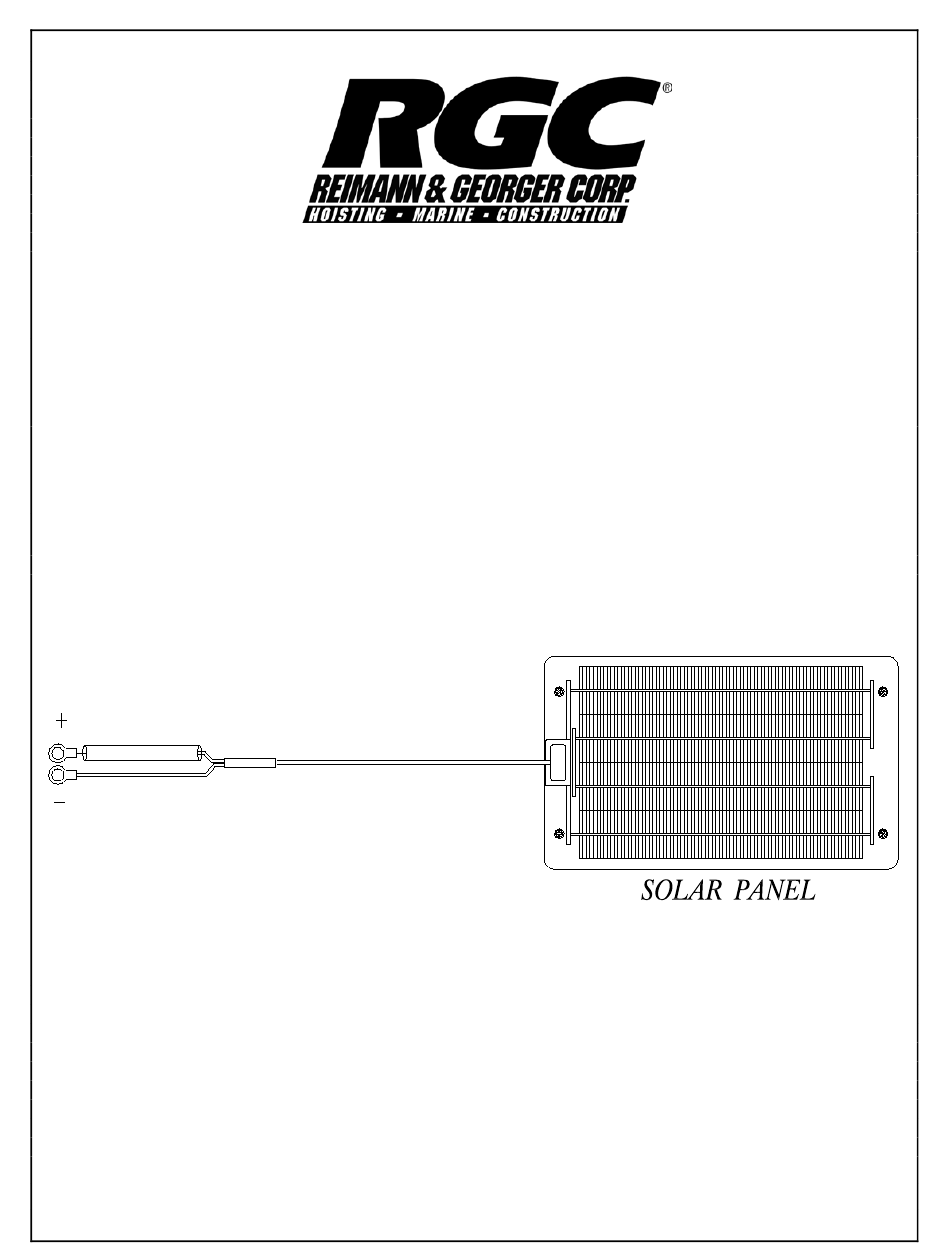

- Page 1 SOLAR PANEL 12 & 24 VDC INSTRUCTIONS (Applies to P/Ns 4110020 & 3641357) REIMANN & GEORGER CORPORATION MARINE PRODUCTS BUFFALO, NY P/N 6114200 04/09/18...
-
Page 2: Specifications
1 SPECIFICATIONS 1.1 TECHNICAL DATA Model 4110020 3641357 Solar Panel Operating Voltage 12VDC 24VDC Solar Panel Weight 3 lbs. 3 lbs. Solar Panel Power 10 Watts 10 Watts Current at PMax .58A .29A Voltage at PMax 17.3V 34.6V Short Circuit Current .66A... -
Page 3: Installation And Setup
2 INSTALLATION AND SETUP 2.1 SOLAR PANEL MOUNTING The solar panel must be mounted in a suitable location. Mount the solar panel so that it faces toward the south and angled toward the afternoon sun. Route the plug end of the solar panel through the flexible cable boot in the back of the control box or battery box. - Page 4 2.3 MAKING POWER CONNECTIONS 24V SOLAR PANEL Refer to figure 2-2. Attach the white solar panel lead to the positive battery terminal, and the black lead to the negative terminal. Tighten each wing nut with a pair of pliers, as even a slightly loose connection can cause the battery terminals to heat up.
-
Page 5: Troubleshooting
3 TROUBLESHOOTING The following chart is intended to assist with troubleshooting your hydraulic lift. While not all inclusive, the chart outlines the most common causes of a problem and the recommended course of action. CAUTION: IF THE PROBLEM WITH THE SOLAR PANEL IS NOT CERTAIN, ALWAYS FOLLOW THE MANUFACTURER’S WARRANTY POLICY BEFORE ANY OTHER REPAIR OR MAINTENANCE IS ATTEMPTED. - Page 6 SOLAR PANEL TEST Test #1- Open Circuit Voltage 1. Remove solar panel from the battery terminals. 2. Refer to figure 3-1. Using a multimeter, set the meter to read ‘Volts DC’. Check voltage across the two solar panel terminals. A +17 to +21V (12V solar panel) or +34 to +42V (24V solar panel should be present when solar panel is in the sunlight.
- Page 7 Test #2- Blocking Diode 1. Remove solar panel from the battery terminals. 2. Refer to figure 3-2, Diode test #1. Using a multimeter, set the meter to read ‘Ohns’. The ‘COM” probe must be placed on the diode as shown in Diode Test #1. Check ohms resistance across the blocking diode.
-
Page 8: Limited Product Warranty
Marine Products RGC Marine products, hereafter referred to as the “Manufacturer”, extend this limited warranty to the original purchaser of this product. The original purchaser, hereinafter referred to as the “Buyer”, is defined as the first legal owner of this product other than an authorized distributor or dealer who has bought the product from the Manufacturer for resale to the public. - Page 9 F. NO EXTENSION OF STATUTE OF LIMITATIONS ANY REPAIRS PERFORMED UNDER EITHER OF THESE WARRANTIES SHALL NOT IN ANY WAY EXTEND THE ONE-YEAR AND FIFTEEN-YEAR STATUTES OF LIMITATIONS CONTAINED IN THIS LIMITED WARRANTY. G. PROCEDURE FOR WARRANTY PERFORMANCE If the product fails to perform to the Manufacturer’s specifications, the Buyer must contact the dealer from whom the product was purchased.
- Page 10 M. RIGHT TO MODIFY PRODUCT The Manufacturer has the right to modify this product at any time without incurring any obligation to make the same or similar modifications on products previously purchased. N. NO AUTHORITY TO ALTER WARRANTY No agent, representative, distributor or dealer has any authority to alter the terms of this warranty in any way. O.
- Page 11 COMMERCIAL PRODUCT PROVISIONS II. ARTICLE II—COMMERCIAL PRODUCT PROVISIONS: THE FOLLOWING PROVISIONS SHALL BE APPLICABLE ONLY IF THIS PRODUCT IS BEING PURCHASED SOLELY FOR COMMERCIAL OR INDUSTRIAL USE. IF THIS PRODUCT IS BEING PURCHASED FOR PERSONAL, FAMILY OR HOUSEHOLD PURPOSES, THE PROVISIONS CONTAINED IN THIS ARTICLE II SHALL NOT BE APPLICABLE AND THE PROVISIONS CONTAINED IN ARTICLE I ABOVE SHALL APPLY.
- Page 12 I. PREAPPROVAL OF LABOR COSTS All labor costs related to a dealer’s performance of the warranty obligations under this limited warranty must be pre-approved by Reimann & Georger Corp. Marine Products. J. EXCLUSIONS FROM WARRANTY. THIS LIMITED WARRANTY DOES NOT COVER ANY OF THE FOLLOWING: Equipment which has been abused, damaged, used beyond rated capacity, or which is damaged or has defects caused by repairs or service completed by persons other than authorized service personnel.
