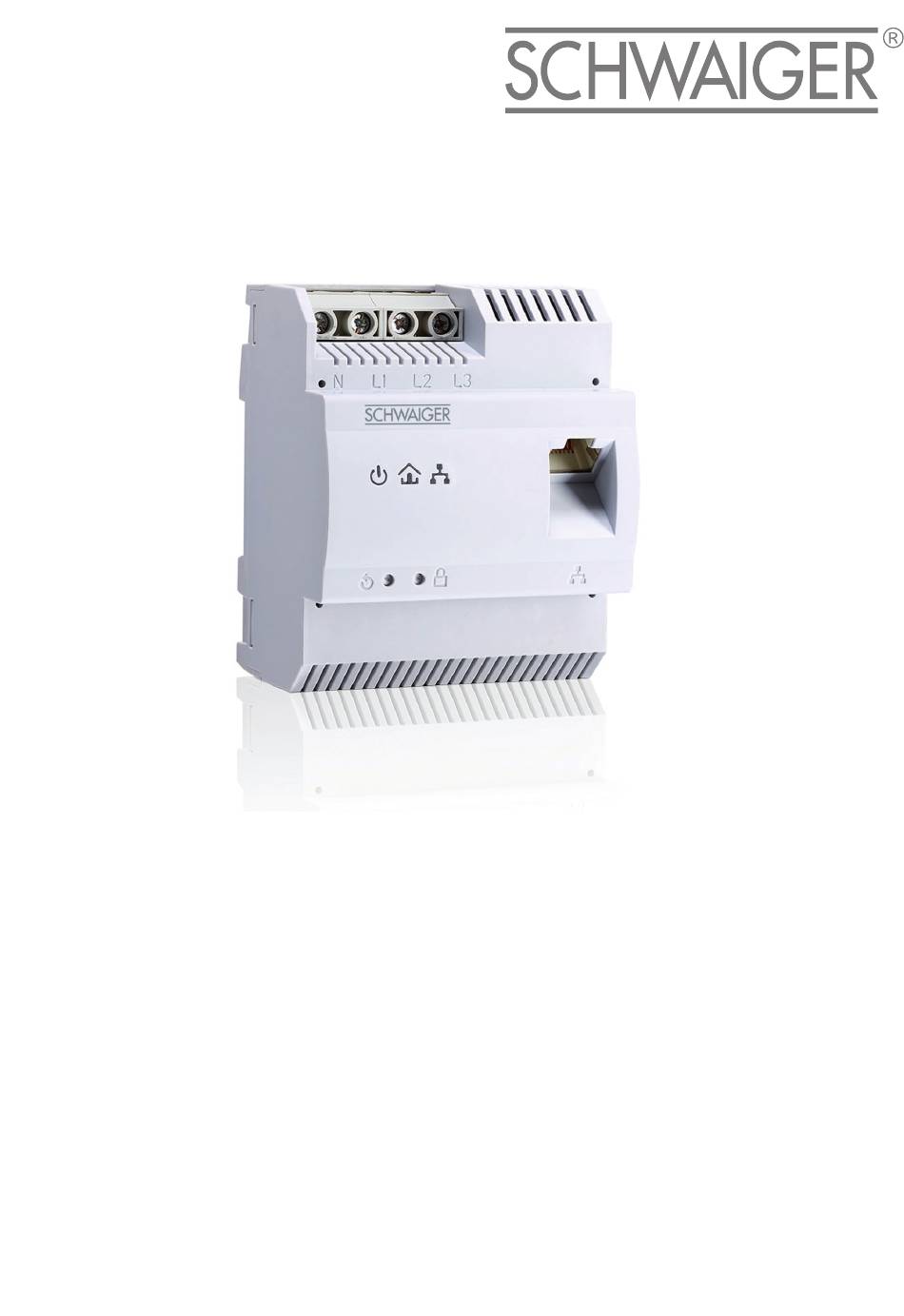

- Page 1 Inhouse-Powerline AV 200PRO...
- Page 2 While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. The manufacturer shall be liable only to the degree specified in the terms of sale and delivery. The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from the manufacturer.
-
Page 3: Table Of Contents
Contents 1 Introduction ........................ 4 What does HomePlug stand for? ................4 AV200pro ........................4 1.2.1 Functions ....................5 1.2.2 Ports ......................6 1.2.3 Control lamps ....................6 1.2.4 Buttons .......................7 Sample applications ....................7 2 Installation ........................9 Important safety instructions ...................9 Electrical installation .....................10 3 Configuring the HomePlug network ................. -
Page 4: Introduction
4 Introduction Introduction This chapter gives an overview of the HomePlug technology and briefly intro- duces the adapter. Practical examples are listed at the end of the chapter. What does HomePlug stand for? HomePlug (“Inhouse Powerline”) is an intelligent, secure technology that lets you set up a home network easily, quickly and economically via your electri- cal wiring, without the need for complex and expensive dedicated cabling. -
Page 5: Functions
Introduction 5 of up to 200 Mbps, the AV200pro is also ideally suited for high-speed Inter- net. Line connections Control lamps Reset Encryption Ethernet Fig. 1 Fig. 1 1.2.1 Functions • Direct installation in the control cabinet or power distribution box •... -
Page 6: Ports
6 Introduction 1.2.2 Ports Line connections (Fig. 1) This is where you connect the conductors to the corresponding line connec- tions. NOTE: Single-phase connection: Neutral conductors and external conductors are connected to terminals N and L1. Three-phase connection: Neutral conductors and external conductors are connected to terminals N and L1. -
Page 7: Buttons
Introduction 7 Ethernet (Fig. 1) • Illuminates green if there is a connection to the Ethernet network; flashes when data is being transmitted. 1.2.4 Buttons Encryption button (Fig. 1) Data encryption at the touch of a button; for a functional description of the encryption button, please continue reading in chapter . - Page 8 8 Introduction AV200pro as a link between the power industry and telecommunica- tions for recording energy data (Fig. 3) Fig. 3 AV200pro...
-
Page 9: Installation
Installation 9 Installation In this chapter we describe the electrical installation of the AV200pro on the top-hat rail in the power distribution box. Systemvoraussetzungen • Operating systems: Windows XP (32 bit), Windows Vista Home Premium (32 bit/64 bit), Windows 7 Home Premium (32 bit/64 bit), Linux (Ubuntu), Mac (OS X) or all operating systems with network support •... -
Page 10: Electrical Installation
10 Installation •liquid has been spilled on the device or objects have fallen into the device. wenn das Gerät Regen oder Wasser ausgesetzt war. •the device has been exposed to rain or water. •the device does not work, even though the operating instructions have been followed properly. - Page 11 Installation 11 Single-phase connection Fig. 4 Three-phase connection In general, connection of the AV200pro to one phase is adequate, even for communicating over multiple phases. To optimise the data transmission, however, we recommend the three-phase connection. After installing the protective cover, the AV200pro can be connected via Ethernet to the desired network device (e.g.
- Page 12 12 Installation HomePlug network'. Fig. 5 AV200pro...
-
Page 13: Configuring The Homeplug Network
Configuring the HomePlug network 13 Configuring the HomePlug network Use the encryption button to set up custom encryption for your network. Encrypting the HomePlug network at the touch of a button To encrypt a Homeplug network simply press the encryption button that is located on the device. - Page 14 14 Configuring the HomePlug network Once both adapters have been successfully connected, press each encryp- tion button for one second within two minutes of one another. That's it! Your HomePlug network is now protected against unauthorized access. Expanding an existing HomePlug network with a new AV200pro Fig.
-
Page 15: Appendix
Appendix 15 Appendix Technical data AV200pro Standards Ethernet specification IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI/X HomePlug AV Protocols CSMA/CD Transfer rate 200 Mbps Transfer procedure Asynchronous Modulation OFDM—1155 Carrier, 1024/256/64-QAM, QPSK, BPSK Data path Ethernet <-> power supply Range 300 m via power supply Security... -
Page 16: Disposal Of Old Devices
16 Appendix Disposal of old devices To be used in the countries of the European Union and other European coun- tries with a separate collecting system: The icon with crossed-out wastebasket on the device means that this adapter is an electrical or electronic device that falls within the scope of application of the German Electrical and Electronic Equipment Act ("Elektrogesetz"). -
Page 17: Warranty Conditions
Appendix 17 Warranty conditions The warranty is given to purchasers of the manufacturer's products in addition to the warranty conditions provided by law and in accordance with the following conditions: Warranty coverage a) The warranty covers the equipment delivered and all its parts. Parts will, at the manufactu- rer's sole discretion, be replaced or repaired free of charge if, despite proven proper hand- ling and adherence to the operating instructions, these parts became defective due to fabrication and/or material defects. - Page 18 18 Appendix d) if the damage occurred due to incorrect handling, especially to non-observance of the sys- tem description and the operating instructions, e) if the device was opened, repaired or modified by persons not contracted by the manufac- turer, if the device shows any kind of mechanical damage, or g) if the warranty claim has not been reported in accordance with 3a) or 3b).
- Page 19 MANUFACTURER INFORMATION Dear customer, should you require technical assistance and your dealer or installer was not able to help, please contact our technical support. Schwaiger GmbH Wuerzburger Straße 17 90579 Langenzenn Hotline: +49 (0) 9101 702-299 www.schwaiger.de info@schwaiger.de Business hours:...
