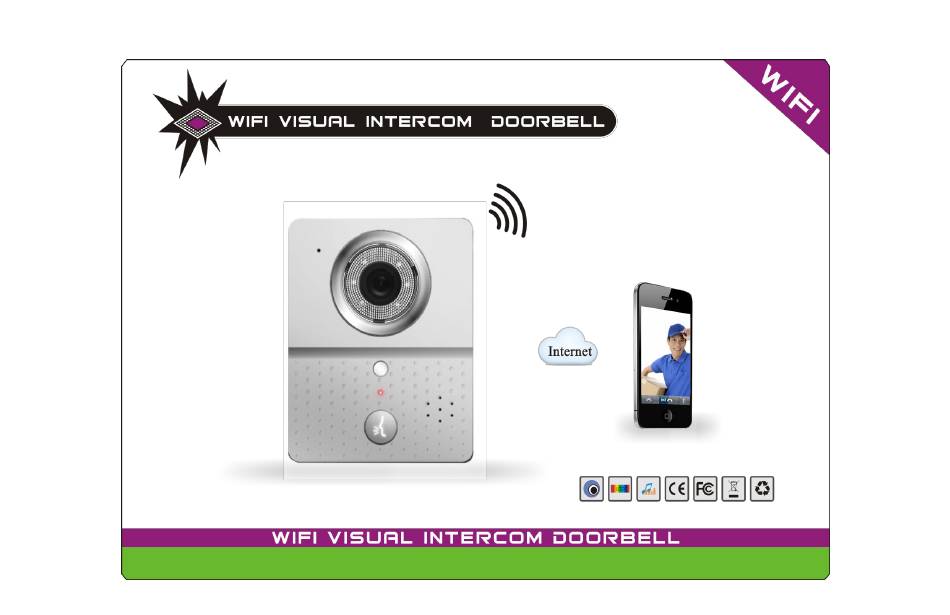

ACTOP WIFI601 User Manual

Wifi visual intercom doorbell
Hide thumbs Also See for WIFI601:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIFI601 and is the answer not in the manual?

Questions and answers

Summary of Contents for ACTOP WIFI601

  • Page 2: Table Of Contents

    Contents 1、Introduction of product……………………………………………………………………………………………… 1 2、Installation ……………………………………………………………………………………………………………2 3、Port definition…………………………………………………………………………………………………………3 4、 Initial use and operation instruction………………………………………………………………………………4 5、Doorbell Setting………………………………………………………………………………………………………5 5.1、Add doorbell settings……………………………………………………………………………………………5 5.2、System settings…………………………………………………………………………………………………. 6 5.3、White list settings…………………………………………………………………………………………………7 5.4、Alarm settings……………………………………………………………………………………………… 5.5、Equipment clock settings.……………………………………………………………………………………… 9 5.6、Interface settings………………………………………………………………………………………………….9 5.7、Wifi settings.………………………………………………………………………………………………………10 6、Introduce of functions………………………………………………………………………………………………11 6.1、Intercom ………………………………………………………………………………………………………… 11 6.2、Monitor.
  • Page 3: 1、Introduction Of Product

    1、Introduction of product Wifi Visual intercom doorbell is a doorbell work with wifi . It connect with home wifi or wired LAN achieve two-way intercom between doorbell and cell phone .When visitors press the doorbell ,doorbell sounds and meanwhile camera will start to work sending real-time picture and call to smart phone .
  • Page 4: 2、Installation

    2、 Installation Diagram open surface shell from midde plosition 3. Cover up the cover just 1. Switch four screws in the top part and bottom part . Open 2. Fix the doorbell and 86 opened , and install the 4 screws to the cover from middle position ,connect 12V/1A power wire .
  • Page 5: 3、Port Definition

    3、 Port Defination Microphone photoresistance RJ45 port Infrared light Power Socket Fixed the screw Camera lens LED light PIR sensor Work indicator LED Reset switch Speaker Call button Rear view front view Rear connection diagram...
  • Page 6: 4、 Initial Use And Operation Instruction

    4、 Initial use and operation instructions 1. According to the installation diagram and connection diagram install doorbell , connect to power and lock to door bell . 2. Wait about one minutes , after speak “Sucessfully start system,welcome to smart home” . 3.
  • Page 7: 5、Doorbell Setting

    5、Door bell setting 5.1、Add door bell 3.When search over LAN,pls make 4.When operation is 2.Can choose to manually input, 1.Click add door bell sure mobile phone is the same LAN complete,click”done” QR code scanning,or LAN with door bell device,then select the to finish search to find the door bell and target device,regular target device...
  • Page 8: System Settings

    5.2、System settings 1.Voice prompt switch : turn on or turn off . Turn on by factory settings. 2.Configuration mode switch: turn on or turn off .Turn on by factory settings. 3.Monitoring the maximum length of time : Range from 10 to 300 S. 4.Call maximum length of time: Range from 10 to 300 S.
  • Page 9: White List Settings

    5.3、White list settings 1.Administrator can add and delete other 2.Add new cellphone user cellphone user . Common cellphone user only 3.Modify user password can Modify own password .Same user log in different cell phone is not allowed .
  • Page 10: Alarm Settings

    5.4、Alarm settings 1.When alarm turn off (Disarm )Any alarms are not notified to cellphone 2.When alarm turn on(Arming) User can set up other parameters further A. Alarm type : Motion detection ,PIR and so on B. 1-5 C. Alarm delay D.
  • Page 11: Equipment Clock Settings

    5.5、Equipment clock settings According to actual situation , set correct local time .Time automatically be same with internet 5.6、Port definition Used to define extended IO control , as well as the linkage function. 1.Equipment time setting 2. Port setting...
  • Page 12: Wifi Settings

    5.7、WiFi settings 3.Doorbell will show all 1.Click setting icon enter into 2.Click wifi setting enter the valid routes in the list , setting interface into wifi settings select destination routing (SSID)and click it to finish .
  • Page 13: 6、Introduce Of Functions

    6、Function introduction 6.1、Intercom 3.Any cell phone answer it,others moblie will 2.Slide right or left side to 1.Visitors press the door bell automaticly hand up.In the precess of intercom,can answer or hand up support taking video,picture,and remotely unlock door.Press micphone on screen to send voice to doorbell.Delay button can extend the talk time.Ending a call can press”end call”button...
  • Page 14: Monitor

    6.2、Proactive Monitor 1.In main interface,directly click the 2.In monitor interface,user can take door bell device(online),user can video,picture,but don’t support remotely proactively monitor unlocking...
  • Page 15: Real-Time Alerts

    6.3、Real-time alerts 1.when alarm accurs,all registered mobile phone will receive instant notification,Slide green answer key,can 2.Alarm monitoring connect with door bell device and real time monitor,slide red hand up key to hand up...
  • Page 16: Video Replay

    6.4、Video Replay 1..In process of intercom and 3.Video playback,use a video player installed 2.Click“Video”file list,select object file. monitor,user can take videos. in mobile phone for video playback,Storm media player is recommended.
  • Page 17: Local Pictures

    6.5、Local picture 3.Click to see larger 1.select online door bell 2.Group and sort by time picture device...
  • Page 18: Visitors/Alarm Record

    6.6、Visitors/Alarm record 1.Navigate to record interface,select 3.View the associated pictures 2.Overview a target device,visitors call and alarm information are all saved...
  • Page 19: 7、Software System Settings

    7、System setting 1.Navigate to above interface,click 3.View software version 2.Set door bell ringtone 4.set alarm ringtone “modify”button,appears tone setting,software version etc...
  • Page 20: 8、Specification Of Product

    8、Speclfications Model WIFI601 Camera 1/4”/F2.4/110° Distinguishanility 420line Illumination 2LUX Light source 6pcs lnfeared light Power Standbay;DC 12V 1A Powerdissipation Stanbay;working;3.8W Dimensions 120*96*34mm...
  • Page 21: 9、Components

    9、Components in cluded 1.Outdoor camera 2.Screws(standard) 3.User manual 4.Power Supply 5.The interface line 6.IOS APP and Android APP for mobile [NOSE] (1)Our Company is committed to reform and innovation,and reserves the right to make changes and improvements without further notice.Illustrations in this manual are for reference only. (2)All warranty and liability is void should you or your dealer open the unit with out authorization or remove/deface the product labeling (3)Warranty:For one year from purchasing this product,we promise to provide you with free maintenance and technical support.This excludes damage during installation,unauthorized tampering and willful damage.
