Summary of Contents for Revez HD-TRIO

  • Page 3: Safety Precaution

    Preface Please read this manual carefully before using your Digital Satmeter for the first time. This operating manual will help you in the Appropriate, Safe Favorable The technical specifications and operating methods included in this manual are subject to changes without notice. In case of any inquires after a period of usage, please contact the manufacturer.
  • Page 4  Liquid: The receiver shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus. Ventilation: Keep the slots on top of the receiver uncover to allow sufficient airflow to the unit. Do not put the receiver on soft furnishings or carpets.

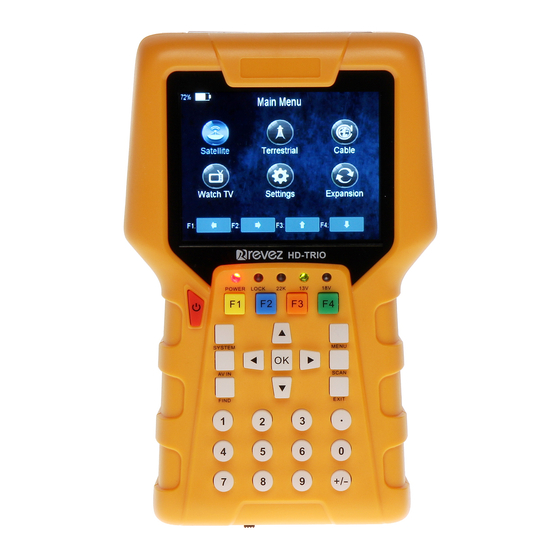

  • Page 8 Red: the product is power on Green: the product is power off 4. LOCK light This light will be on when signal is locked 5.13V/18V light: Indicate the 13V/18V 6. Function key Made of 4 keys, F1 - F4 7. Arrow key and OK key Press the Arrow key to select the right item then press OK key to confirm 8.
  • Page 9 You can connect one receiver directly to the ANT IN. IV. Detailed operation Guide You should installation the receiver when powering on your product for the first time after purchase. 4.1 Powering On 1. Connect the power cord of the product to a wall outlet. 2.Power on by pressing the POWER button on the panel.
  • Page 10 satellite. When you fixed on a satellite, then press OK the following window will appear. Use [S/T] button to move cursor, it’ll show the satellite name, Transponder , LNB , 22KHz, DiSEqC port . When all parameters confirm, press F2 button search the channels.
  • Page 11 4.2.4 DiSEqC Search Main Menu-> Satellite -> DiSEqC Search Press OK enter the DiSEqC search in this menu, connect the DiSEqC port, the view will be display the sat which can connect, then you can search the channel by DiSEqC. Press F4 button to switch LNB Type. 4.2.5 Motor Search Main Menu->...
  • Page 12 Press the F1 button to keep the spectrum , and press the F2 button to analyze spectrum , and press the F3 button to mark spectrum , and press F4 button to next page. Press the F1 button to change Polarization control Hor / Ver, and press F2 button to switch 22khz signal on or off, and Press the F3 button to switch DiSEqC , and press F4 button to previous page .
  • Page 13 In this menu, you can Delete, Add, Manual Search, Auto Search transponders. ¾ Delete In this menu, when you highlight the channel item, you can press the W/X key to choose the transponder which you want to delete, then press the F1 key to delete. ¾...
  • Page 14 1. MER: Modulation error rate 2.SNR: It will show you the Carrier to Noise Ratio of the transponder you selected. 3.Pre BER Forward Error Correction 4.Post BER Afterward Error Correction 5. Strength: It will show you the strength of the transponder you selected. 6.
  • Page 15 In this menu, you can know the strength of all transponders. 1. W/X : Press the W/Xkey to change the transponder. 2. S/T : Press the S/Tkey to change the range of the Y-axis. 3. Low Speed/High Speed: Press the F3 key to change the speed of refresh rate. 4.
  • Page 16 In this menu, you can Delete, Add, Manual Search, network search, blind search. ¾ Delete In this menu, when you highlight the channel item, you can press the W/X key to choose the transponder which you want to delete, then press the F1 key to delete. ¾...
  • Page 17 1. MER: Modulation error rate 2.Pre BER Forward Error Correction 3.Post BER Afterward Error Correction 4. Strength: It will show you the strength of the transponder you selected. 5. Modulate: Modulation efficiency. 4.4.3 Packet Control Main Menu-> Cable-> Packet Control In this menu, you can know the strength and quality of each transponder.
  • Page 18 1. W/X : Press the W/Xkey to change the transponder. 2. S/T : Press the S/Tkey to change the range of the Y-axis. 3. Low Speed/High Speed: Press the F3 key to change the speed of refresh rate. 4. Save Spectrum: Press the F4 key to save the picture of spectrum. 4.5 Watch TV Main Menu->...
  • Page 19 4.6 Settings 4.6.1 System Main Menu-> Settings-> System In this menu, you can set all the settings here by pressing the W/Xkey. Press OK enter the setting menu, in this menu, you can set OSD Transparency /signal Audio tone / TV Screen Format/ volume/ language adjust display currently.

  • Page 20: Color Settings

    3. Screen Mode: Set the display format according to the screen ratio. Select TV screen mode either 4:3 or 16:9 according to the TV type, or press the MODE button of RCU directly. 4. OSD Timeout: Set the display time of the program information. 4.6.3 Times Menu->Settings>Times 1.

  • Page 21: System Info

    You can set the Brightness/Contrast/Saturation in this menu. 4.6.6 Screen Main Menu-> Settings-> Screen In this menu, you can set up Sharpness/Brightness /Contrast/Saturation/LCD Backlight/LED Backlight. 4.6.7 System Info Main Menu-> SETTINGS-> System Info In this menu, you can get the information about the STB, such as Model ID, Hardware & Software version, Load version and Date.
  • Page 22 ¾ Record Partition Select the Partition where save your record or other result of your operation. ¾ Record Mode Set the Record Mode Channel or Transponder. ¾ Record Type Set the Record Type TS or PS. ¾ Record Time Set the Record Default Time off, 30, 60, 90, 120 minute or input number directly. ¾...
  • Page 23 4.7.1.3 Music It supports *.mp3 format music files. OK: Play the selected file. S/T: Change the highlighted item. W/X : Adjust volume. EXIT: Exit the current menu. ¾ Play/ Pause Pause or play the selected file in play list. ¾ Forward Fast forward.

  • Page 24: Basic Operation

    4. Press the OK button, then input the right password. 5. Enter Menu-> Expansion->IP Setting. If the Network is connected, it should get the correct IP address and display the “Connected”. 4.7.3 IP Setting Menu->Expansion>IP Setting If the Network is connected fine, it will display “Connected”. In this menu, you can set IP address manually, also you can get IP address automatically.
  • Page 25 1. Start Recording 1) You can press the F4 key then highlight the PVR item and press the OK key to start recording while watching program. 2) After you recording a program, you can press the S/T key to switch to another programme and press the F4 key to record at the same time.
