Owner's Detailed Manual

Thank you for purchasing ELECKEY E6.

Please refer to this guide for all operation.

Please contact us freely if you need any help.

Email:

eleckey@ieleckey.com

Table of Contents

Need help?

Do you have a question about the E6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eleckey E6

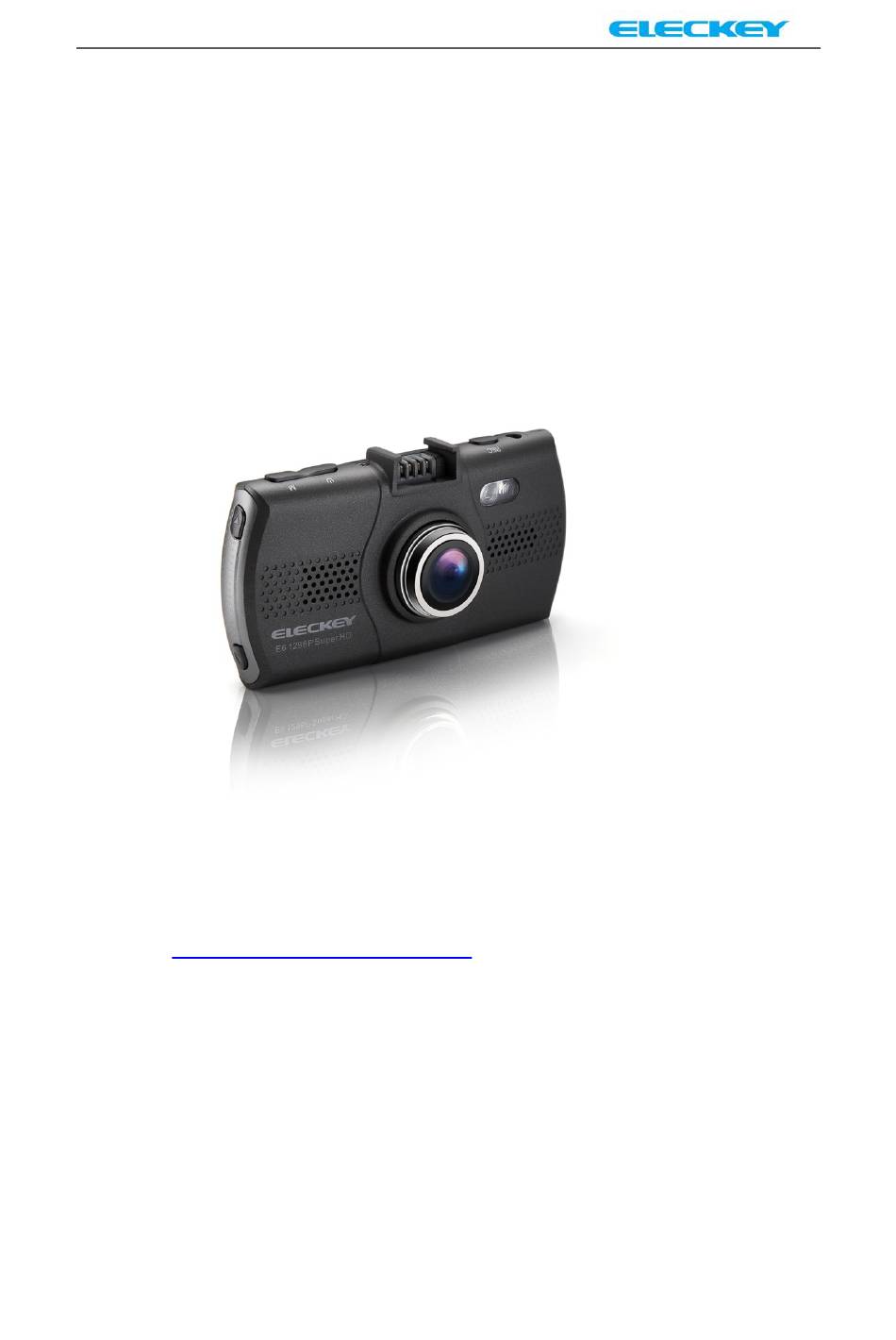

Page 1 Owner’s Detailed Manual Thank you for purchasing ELECKEY E6. Please refer to this guide for all operation. Please contact us freely if you need any help. Email: eleckey@ieleckey.com...
Page 2: Table Of Contents
Table of Contents Layout............................3 Quick guide.......................... 4‐5 Menu operation.........................6‐10 Audio Recording System....................... 10 Supplement lamp........................10 Automatic Recording......................10 Emergency Record Lock......................11 Auto LCD OFF ........................11 In case of emergency......................11 Playback on dash cam ...................... 11‐15 Take a photo with dash cam....................11‐15 Lock or Delete the video file manually.................
Page 3: Layout
Layout...
Page 4: Quick Guide
Quick Guide Install microSD card into the card slot with correct direction. Reminder: No memory card, Samsung Evo 32GB card is recommended. If you are using a 64GB card, please format it to FAT32 before use. Slide the camera to the fixed plate and adjust proper vertical and horizontal positions.
Page 5 Connect the power cord to charging port of the camera. Connect the car charger to the cigarette lighter socket in your car. And then start your vehicle. Wish you enjoy with E6 recording system. Signals of “Automatic Recording Mode” show as below picture.
Page 6: Menu Operation
Menu Operation E6 is turning into the “Automatic Recording Mode” when the power is connected. Under the “Automatic recording mode”, red led signal will flash on the LCD. Press to stop recording. ( red led signal will disappear) And then press...
Page 7 RESOULTION 2304*1296/30F 1920*1080/30F 1920*1080/30F(HDR) 1280*720/60F 1280*720/30F 2560*1080/30F Default setting: 2304*1296/30F VIDEO QUALITY QUALITY:S.Fine / QUALITY: Fine / QUALITY:Normal Default setting: QUALITY:S.Fine RECORD OVERWRITE 1MIN /3MIN/5MIN/OFF Default setting: 1MIN MOTION DETECTION OFF /ON Default setting: OFF POWER ON RECORD ON/OFF Default setting: ON POWER OFF DELAY 30SEC /OFF/10SEC/20SEC Default setting: 30SEC...
Page 8 CAR NUMBER SET TV TYPE NTSC/PAL Default setting: NTSC AUTO POWER OFF 3MIN/5MIN/OFF Default setting: 3MIN AUTO LCD OFF 3MIN/OFF/30SEC/60SEC Default setting: 3MIN TIME SETUP Please active the Menu selection and then press to find the “TIME SETUP” Then press to active “TIME SETUP”...
Page 9 STAMP Default setting: DATE/TIME STAMP BEEP SOUND VOLUME:100% VOLUME:20% VOLUME:40% VOLUME:60% VOLUME:80% Default setting: VOLUME:100% FLICKER 50Hz /AUTO/60Hz Default setting: 50Hz CONTRAST STANDARD /HARD/SOFT Default setting: STANDARD SHARPNESS STANDARD /HARD/SOFT Default setting: STANDARD WHITE BALANCE AUTO/SUNNY/CLOUDY/FLUORESCENT/INCANDESCENT Default setting: AUTO EV SETTING 0/0.3/0.7/1/1.3/1.7/2/-2/-1.7/-1.3/-1/-0.7/-0.3 Default setting: 0 G-SENSOR SET...
Page 10: Audio Recording System
And you press “up” button again, it will turn off. Automatic Recording The E6 is automatically configured to start recording anytime the power is received through the cigarette lighter plug. The camera will shut off a few seconds after power is turned off. It is set to automatically loop the SD card as well.
Page 11: Emergency Record Lock
In Case of Emergency The E6 is equipped with a built-in battery. In case of emergency, and in the event of a power loss, this will ensure the camera finishes recording the file and does not corrupt the SD card.
Page 12 Press to start “Photo Mode” You can take a photo by pressing under “Photo Mode” Press again under “Photo Mode” The system will log into “system files” Page as below picture.
Page 13 And then Press to start “Preview Mode” You can select the video or picture by “up” and “down” button. Please select the last file which is shown on the screen and then press “down” button. The recording video files will show on the screen now.(They are hidden before this step) Please select the video that you want to view.
Page 14 Press again under “Full screen Mode” to start the “playback mode”. Press “down” under “playback mode” to start “Fast forward”. And press ”up” under “playback mode” to start “Slow motion”.
Page 15 Finish viewing and want to go back to “Automatic recording mode” 1.Press under “system files” Page or “Preview mode”, the system will go back to “Recording Pause Mode”. And then press to start “Automatic recording Mode”. 2. Long press for 3 seconds to turn the dash cam off; Pull out the charging cable from the dash cam.
Page 16: Lock Or Delete The Video File Manually
Lock or Delete the video file manually Under the “Preview mode” You can lock the selected video file by pressing You can delete the selected video file by long press for 2 seconds. And then press the again to delete the file.
Page 17: Parking Mode
Parking Mode(Not commonly use) To use the parking mode, please connect it with an external battery because the battery of dash cam itself is small-capacity. Please connect the external battery to the dash cam and start the machine. And then active the Menu selection and then press to find the “MOTION DETECTION”...
Page 18: Reset
LED indicator when driving. Wish you a wonderful experience with E6. Warranty We ELECKEY provide free warranty service for parts and labor within 12 Months from the date of purchase. Contact Us...
