AT25AFS
Air Filter

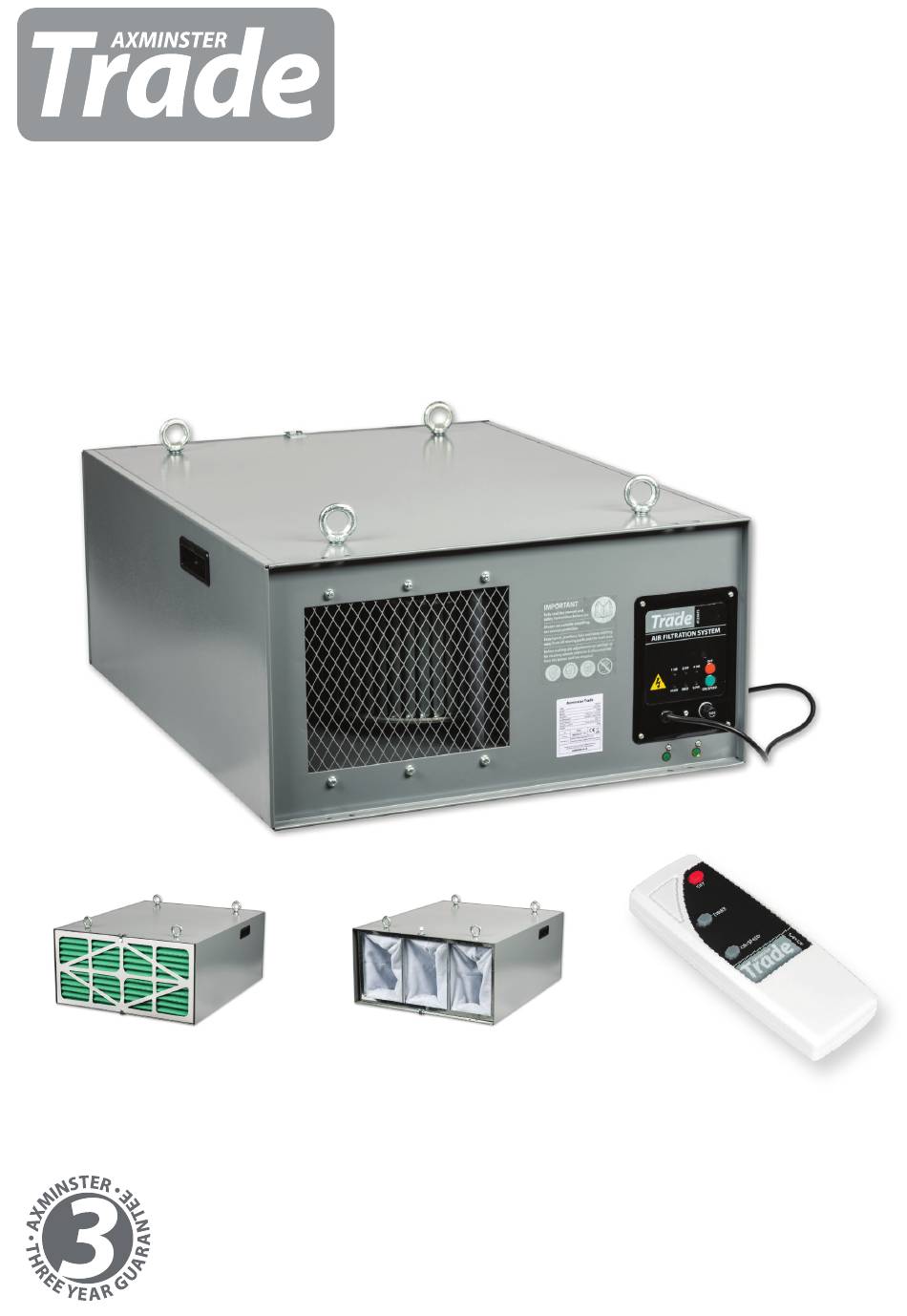

• Powerful air filter system for workshops up to 300m³
• Collects dusts "hanging" in the air, improving air quality
• Twin filters, electrostatic outer filter, pleated deep inner filter
• Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size
• Optional charcoal filter for removing odours, organic fumes and pollen
• Three speeds plus timer periods, controlled by remote handset
• Performs at its best when hung from a ceiling
Code 105074
Original Instructions
AT&M: 30/01/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT25AFS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axminster Trade AT25AFS

  • Page 1 Code 105074 Original Instructions AT25AFS Air Filter • Powerful air filter system for workshops up to 300m³ • Collects dusts “hanging” in the air, improving air quality • Twin filters, electrostatic outer filter, pleated deep inner filter • Filtering 98% of all particles 5 microns in size and 85% of all particles 1 micron in size •...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS Motor…………………………………………………………… 1/5 HP, 110-120 V, 60 Hz, 1 Phase …………………………………………………………or 1/5 HP, 230-240 V, 50 Hz, 1 Phase Outer Filter …………………………………………………………………………………5 Microns Inner Filter …………………………………………………………………………………..1 Micron Sound Rating ………………………………………… High Speed - 68 dB, Low Speed - 63 dB Air Flow ….…….….High Speed 1044 CFM, Medium Speed 702CFM, Low Speed - 556 CFM...

  • Page 3: Specific Safety Rules

    PERSONAL SAFETY 9. Stay alert. Watch what you are doing, and use common sense when operating a power product. Do not use a power product while tired or under the influence of drugs, alcohol, or medication. 10. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts.

  • Page 4: Extension Cords

    machine is placed securely on a flat, level surface, capable of supporting the weight of the machine. 5. If attaching the Air Filtration System to a ceiling, make sure the machine is attached securely to joists capable of supporting the weight of the machine. 6.
  • Page 5 2. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible product damage. (See Figure C,) 3.

  • Page 7: Troubleshooting

    abnormal noise or vibration occurs, have the problem corrected before further use. Do not use damaged equipment. 3. Periodically, inspect the Filter Net (1) for dirt and debris, and if necessary, remove and change the Filter Net (1). On the rear of the unit, unlatch the two metal clasps to release the Filter Net (1).

  • Page 8: Wiring Diagram

    WIRING DIAGRAM...
  • Page 10 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
