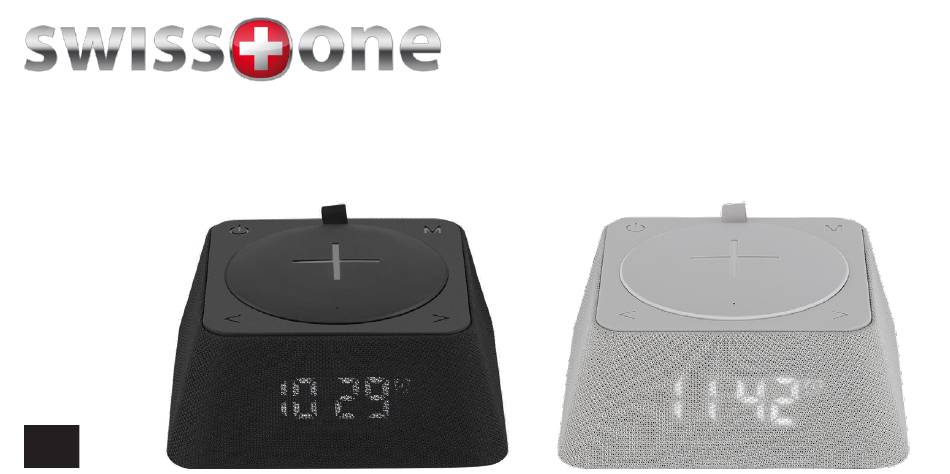

- Page 1 Q-BOX Instructions...

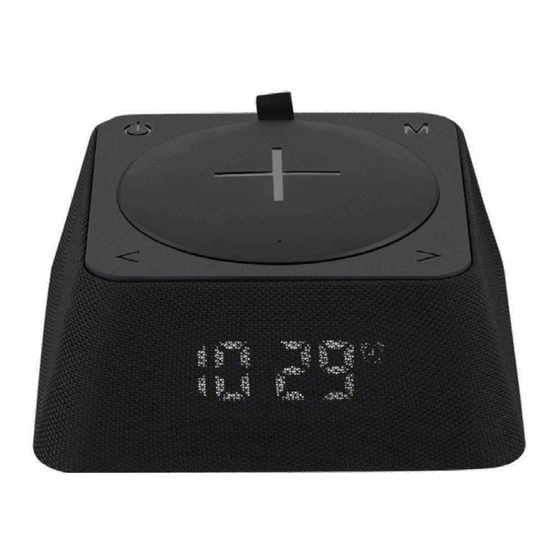

- Page 2 INSIDE PACKAGE Thank you for purchasing swisstone Q-BOX. Q-BOX is a wireless charger with Powerbank function as well as a bluetooth speaker, FM-radio and alarm clock. We recommend you take some time and read this instruction manual in order to fully understand all of it‘s operational features.
- Page 3 OVERVIEW 1. Clock settings and confirmation key 2. Alarm settings and confirmation 3. DC input: 9V / 3A 4. USB1 output: 5V smart charge / USB playback 5. USB2 output: 5V smart charge 6. Wireless charging indicator 7. Power bank charge status indicator 8.
- Page 4 1. Connect the mains adapter to the DC input socket on the Q-BOX and an electrical wall socket. 2. Turn on the Q-BOX by long pressing the power button !. The blue LED will flash quickly in pairing mode. 3. Activate the Bluetooth on the device you want to connect to Q-BOX.
- Page 5 Set the alarm on your Q-BOX (not possible in Bluetooth, USB, Radio mode) 1. Press the ALARM button 1 time and the clocks hour indicator will flash slowly. Enter the hour for the alarm with </>. 2. Press the ALARM button 2 times and the clocks minute indicator will flash slowly.
- Page 6 GENERAL OPERATION – BUTTONS In Bluetooth or USB disk mode, press to play - pause. In FM radio mode, short press once to start the FM-radio station search. Q-BOX will automatically search and store all found FM-stations. Long press to power on/off.
- Page 7 GENERAL OPERATION – INDICATING LIGHTS Blue blinking Bluetooth mode, pairing mode. Blue steady Bluetooth mode, successfully paired. White blinking Powerbank is charging, USB disk mode, suspended. White steady USB disk mode, active. Green steady Wireless charging. Wireless charging completed. The green light will turn off after a while. Please note that the light will not turn off for some phones.
-
Page 8: Wireless Charging
WIRELESS CHARGING Place your device on the charging area marked with the plus sign. If you want, you can disconnect the wireless mobile power bank and bring it with you. Gently disconnect the wireless mobile power bank from the base by lifting it by the handle. Use the USB Type C two-way charging socket to charge the wireless mobile power bank outside the base or to charge another device via the cable. -
Page 9: Specifications
SPECIFICATIONS Bluetooth (GHz) [maximum radio-frequency power/dBm]: 4.2 (2.4) [10] Bluetooth pairing name: swisstone Q-BOX Bluetooth distance: 10 m Dimensions, base Length: 150 mm, Width: 150 mm, Height: 56 mm wireless mobile power bank Diameter: 100 mm , Height: 14 mm... -
Page 10: Safety Instructions
SAFETY INSTRUCTIONS WARNING The unit and the accessories can contain small parts. Keep all of the equipment out of the reach of small children. The mains adapter is the disconnect device between the product and mains power. The mains socket outlet must be close to the equipment and easily accessible. -
Page 11: Li-Ion Battery
Li-ion battery This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60°... -
Page 12: Care And Maintenance
CARE AND MAINTENANCE Your unit is a technically advanced product and should be treated with the greatest care. Negligence may void the warranty. • Do not use or keep the unit in dusty, dirty environments. The unit’s moving parts and electronic components can be damaged. •... -
Page 13: Declaration Of Conformity
Declaration of Conformity Hereby, Doro declares that the radio equipment type swisstone Q-BOX is in compliance with Directives: 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: www.swisstone.de Warranty In case you need support during setup or usage of your mobile phone you will find the relevant contact details on the following website: www.swisstone.de. - Page 16 Changes and errors excepted. © IVS GmbH 2018 • All rights reserved Manual_swisstone_Q-BOX_EN_140x74mm_v10...
