Summary of Contents for Veon Pro Series

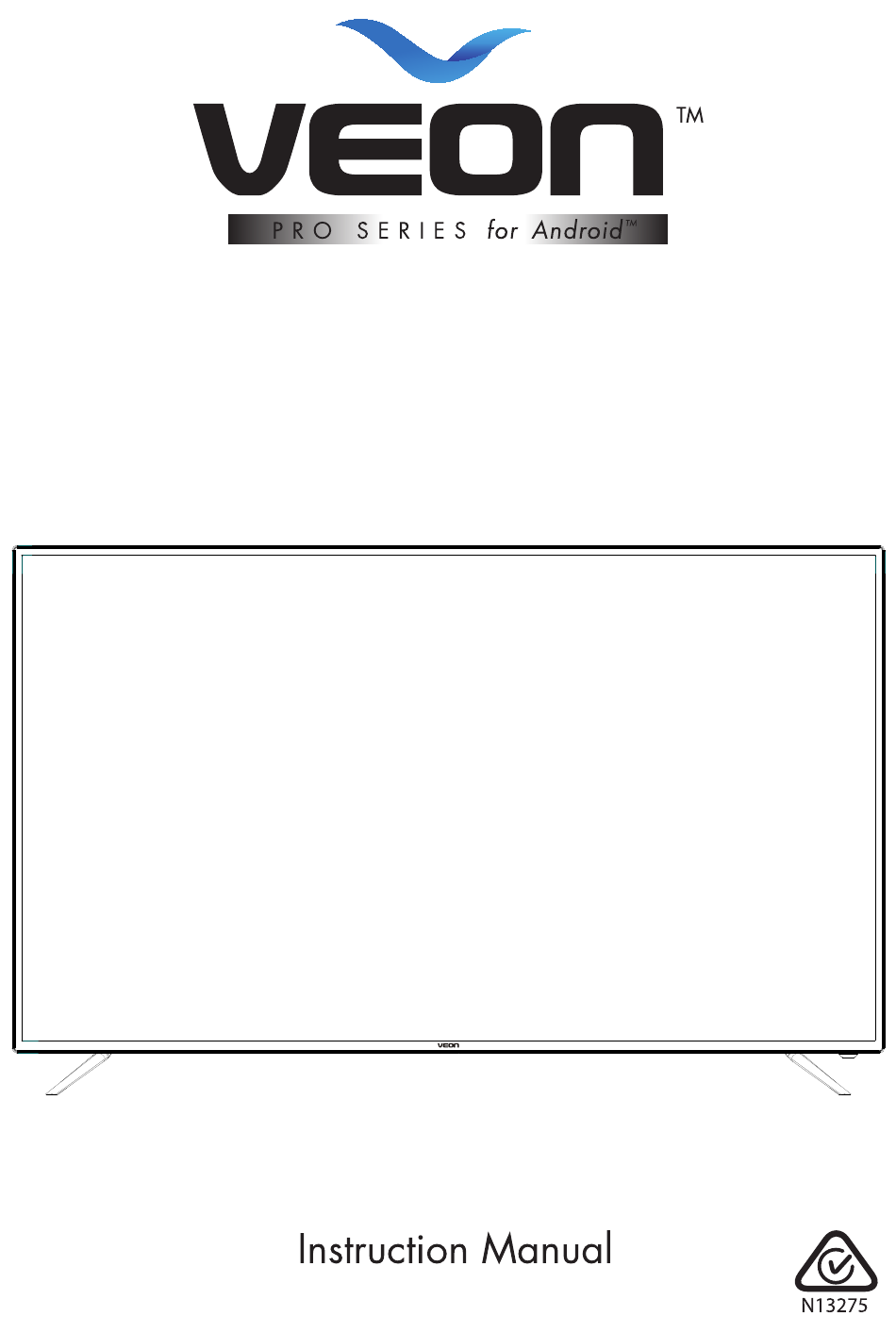

- Page 1 55”/ 75” 4K ULTRA HD LED/LCD SMART TELEVISION MODELS: VPS55UHD/VPS75UHD...
- Page 3 Welcome Congratulations on choosing to buy a VEON product. All products brought to you by VEON are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.
- Page 4 Remote Control POWER: Set the unit to standby mode; press it again to switch it on. : Play/Pause in Timeshift and USB mode. : Move fast backward. 43/53 : Stop playing. 49/15 : Play the previous file. FAV: Display your favourite program list.
- Page 5 Remote Control (Cont.) 14 MENU: Display the main menu; press again to return to the previous menu page. 15 MEDIA: Enter Media (USB) mode directly. 43/53 4F/09 16 SUBTITLE: Enable/disable subtitles.** 49/15 17 INFO: Display information of the current program (DTV). 18 EPG: Launch the Electronic Program Guide (DTV).
- Page 6 Remote Control (Cont.) There is a built-in keyboard on the back of the remote control for easy operation (for Smart Hub). TIPS: • To enter UPPERCASE letters, press the ‘Caps’ button first, followed by the chosen letter button. • To enter the numbers and characters shown on the keys in yellow, press the ‘Alt’...
- Page 7 Remote Control (Cont.) Using the Remote Control To use the remote control, point it towards the remote sensor at the front of the TV. The remote control has a range of up to approximately five metres (5m) from the TV at an angle of up to 30 degrees each to the right and left of the sensor.
- Page 8 Contents Welcome Remote Control General Safety Instructions Installation Controls and Connections Getting Started Basic Operations Electronic Program Guide (EPG) Recording Smart TV Media Mode Menus FAQs Specifications viii...
- Page 9 General Safety Instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to.
- Page 10 General Safety Instructions (Cont.) Installation Follow instructions: Only install this TV set in accordance with the instructions in this manual. • This TV is equipped with standard wall-mounting points, and we recommend that a wall bracket be installed between the TV and the wall to prevent the TV from falling from a cabinet.
- Page 11 General Safety Instructions (Cont.) • Moving: When moving the unit, be sure to turn it off and unplug it from the wall outlet. Moving the unit with the power cord connected to the outlet may cause damage to the cord, resulting in fire or electric shock. •...
- Page 12 Installation Your TV is packaged with the two stand legs separate from the cabinet. Before using the TV, install the stand as described below. Or if you want to mount it to a wall, see the following page for mounting advice (the wall mount itself is not supplied).
- Page 13 Installation (Cont.) Wall-Mounting Instructions IMPORTANT! • Make sure the TV set is unplugged from the power supply before removing the stand and mounting it to a wall. • We recommend you contact a professional for assistance when wall- mounting the TV. We assume no liability for any damage to the product or injury to yourself if you mount the TV.
- Page 14 Controls and Connections Front View Back View LCD Display Screen IR (infra-red) Sensor for Remote Control Power Indicator: In standby mode the indicator light is red; when switching on the unit the indicator light will illuminate blue. VOL + / - : Increase/decrease the volume level or move left/right. CH + / - : Select the next/previous channel or move up/down.
- Page 15 Controls and Connections (Cont.) Main Unit Back View Controls and Sockets (4K/ 30Hz) (4K/ 30Hz) VIDEO MICRO SD (TV) (COMPOSITE) (AUDIO IN) (ARC) 1. POWER CORD: 1A: Model VPS75UHD, 1B : Model VPS55UHD 2. MICRO SD CARD INPUT (for Model VPS75UHD only): 3.
- Page 16 Controls and Connections (Cont.) IMPORTANT! Read through the instructions before connecting the TV to other equipment. Connecting to an AC Power Source Main Unit To Power Outlet Connecting an External Antenna For the best picture quality, we recommend connecting the TV set to an external antenna.
- Page 17 Controls and Connections (Cont.) Composite Video (CVBS) Connection VIDEO MICRO SD (TV) (COMPOSITE) (AUDIO IN) (ARC) AV Cable For a non high-definition (included) connection, use the composite Audio L/R (white/red) and video (yellow) cable to connect the unit with other devices. HDMI Connection VIDEO MICRO SD...
- Page 18 Controls and Connections (Cont.) USB Connection Insert a USB memory device into the USB port for PVR recording, time-shifting and playback of video/music/photo multimedia files. VIDEO MICRO SD (TV) (COMPOSITE) (AUDIO IN) (ARC) USB Device (not included) Optical (S/PDIF) Connection Connect to an amplifier or other audio decoding devices for a high quality digital audio connection.
- Page 19 Controls and Connections (Cont.) Component (YPbPr) Connection VIDEO MICRO SD (TV) (COMPOSITE) (AUDIO IN) (ARC) YPbPr Component Cable (not included) AV Cable (included) • Use a YPbPr component cable (not supplied) complete with green, blue and red terminals to connect to your external device. •...
- Page 20 Controls and Connections (Cont.) Internet Connection VIDEO MICRO SD (TV) (COMPOSITE) (AUDIO IN) (ARC) LAN Cable Use a RJ45 LAN cable (not included) to connect (not included) this TV with an available network. Earphone Connection VIDEO MICRO SD (TV) (COMPOSITE) (AUDIO IN) (ARC)
- Page 21 Getting Started IMPORTANT! Make sure all relevant equipment is properly connected (as illustrated on the previous pages) before connecting the unit to a wall socket and turning on the power. Powering the TV • Plug the power cord into a suitable power outlet, then turn on the power at the outlet.
- Page 22 Getting Started (Cont.) Step Two: Network Setup: NOTE: Make sure your Cable/DSL modem/router is turned on. • If an Ethernet cable is already connected to the TV, the TV will automatically connect to the Internet. Select ‘OK’ and press ‘OK’ to move to the next step.
- Page 23 Getting Started (Cont.) Step Three: Usage Mode: Use the buttons to select the usage mode of your new TV and then press the OK button button to go to the next step. Press the MENU button to go to the previous step. Step Four: Auto Tuning: •...
- Page 24 Basic Operations Selecting an Input Source • Press the SOURCE button at the lower-right side of the back panel, or on the remote control, to display the input source list. • Press the / buttons to select the desired input source, and then press OK to confirm your selection from the following options: DTV, Analogue TV, AV, YPbPr, HDMI1, HDMI2, Smart TV.
- Page 25 Basic Operations (Cont.) Quick Select • While viewing a channel, press the OK button to enter the Channel List directly. • Press the / buttons to select the channel and press OK to watch it. Subtitles • Press the SUBTITLE button on the remote control to enter the subtitle menu and select the available subtitle language.
- Page 26 Electronic Program Guide (EPG) EPG TV Guide (for DTV mode only) EPG stands for Electronic Program Guide. It is supplied by the program providers and offers information about the programs to be broadcast. You can access it in digital mode by pressing the EPG button on the remote control. •...
- Page 27 Smart Hub (Cont.) FreeviewPlus FreeviewPlus is a service provided by Freeview New Zealand, which provides a state of the art Electronic Program Guide (EPG) and seamless access to catch-up TV across the free-to-air networks. FreeviewPlus uses HbbTV technology which combines broadcast and broadband. An Internet connection and an aerial are required.
- Page 28 Recording IMPORTANT! Before you can record with this TV set (including time-shift recording), you must insert a FAT32 formatted USB storage device into the USB (TV) port. USB storage devices do not come with the TV. • First, insert your USB memory device into the USB port. When Watching a Program in DTV Mode: •...
- Page 29 Recording (Cont.) Time-Shift Recording and Playback (in DTV mode only) IMPORTANT! Before you can record with this TV set (including time-shift recording), you must have inserted a FAT32 formatted USB storage device into the USB (TV) port. USB storage devices do not come with the TV. The time-shift function allows you to pause the live TV signal, then resume playback at your convenience.
- Page 30 Recording (Cont.) Important Notes When using the USB/Media function, remember the following important points: • We strongly recommend you back up all data in the USB storage device to another storage device so you do not risk losing any data in case of an unexpected device failure or accident.
- Page 31 Media Mode Media Playback • First insert a USB memory device into the USB port. • Press the MEDIA button to switch the unit to Media mode. • Use the buttons to move the cursor. Press the EXIT button to return to the previous menu page. •...
- Page 32 Media Mode (Cont.) Music • Press the / buttons to select Music in the main menu, then press OK to enter it. Music files can only be played in this menu category. • Use the / / buttons to navigate to the desired folder or file, then press OK to select and press the OK button for playback.
- Page 33 Media Mode (Cont.) Movie / buttons to select Movie in the menu, then press OK to enter. • Press the Movie files can only be played in this menu category. Use the / / buttons to navigate to the folder or file, then press OK •...
- Page 34 Menus This TV set contains different settings menus where you can program your preferred settings. Once you have programmed any settings, the unit will retain them in its memory until you change them, even when switching the unit to standby mode. This means you can always operate the system under the same conditions.
- Page 35 Menus (Cont.) Picture To access the Picture menu, press the MENU button, select PICTURE and then press OK ITEM SETTING OPTIONS EXPLANATION Picture mode Standard / Mild / Movie / Select Picture mode. When Personal / Dynamic ‘Personal’ setting is selected, you can adjust the Contrast, Brightness, Colour and Sharpness settings.
- Page 36 Menus (Cont.) Sound To access the Sound menu, Press the MENU button, select SOUND and then press OK.
- Page 37 Menus (Cont.) SOUND ITEM SETTING EXPLANATION OPTIONS Sound Mode Standard Select Sound mode. When ‘Personal’ / Music / setting is selected, you can adjust the Movie / Treble and Bass settings. Sports / Personal Treble 0-100 Adjust Treble. Bass 0-100 Adjust Bass.
- Page 38 Menus (Cont.) To access the TV menu, press the MENU button, select TV and then press OK.：From this menu you can access the following options: Auto Tuning, Digital Manual Tuning, Channel Edit, Signal Information, Recorded List and Schedule List. Auto Tuning the OK button Press to enter.
- Page 39 Menus (Cont.) DTV Manual Tuning the OK button Press to enter. Press the buttons to select the channel. Press OK to start scanning. Channel edit Press the OK button to enter. • Press the / buttons to highlight the desired channel. •...
- Page 40 Menus (Cont.) Signal Information This item is used to display signal details such as Channel Number, Frequency, Quality and Strength. Recorded List Shows the list of recorded programs (you can also use the INDEX key on the remote to access this page). •...
- Page 41 Menus (Cont.) Schedule List Shows the list of programs scheduled to be recorded. (For instructions on how to schedule a recording, please see ‘Scheduled Recording’ section on page 19.) BLUE button repeatedly to sort the scheduled list by • Press the scheduled time or Channel name.
- Page 42 Menus (Cont.) Lock Menu • To access the Lock menu, press the MENU button, select Lock and then press OK. • Input the factory default password “0000” using the number buttons on the remote control. • NOTE: If you foget the password, use the master password “4711”.
- Page 43 Menus (Cont.) Time • To access the Time menu, press the MENU button, select Time and then press TIME ITEM SETTING OPTIONS EXPLANATION Clock Displays the current time information. Off / Once / Everyday / Automatically turn off the TV Off Time Mon-Fri / Mon-Sat / Sat- according to specified days and time.
- Page 44 Menus (Cont.) Network Settings For a stable internet connection, it is recommended that you use a wired connection or place the wireless router close to the TV. Wired Wired Connection For a Wired network connection, make sure to connect the TV to your Internet router using an RJ45 Ethernet cable before starting the setup process.
- Page 45 Menus (Cont.) Item Support Mode Explanation Internal Protocol Manual / Auto Manually set the IP information Setup of the wireless network or automatically acquire IP information of the wireless network. xxx.xxx.xxx.xxx Under “Manual” setup enter the IP address using the numerical keypad.
- Page 46 Menus (Cont.) Wi-Fi For ‘Wi-Fi Network Connection’, make sure to place your Wi-Fi router close to the TV. Press the buttons and select ‘Wi-Fi’ network type. Then press highlight ‘Wi-Fi’ and press OK. Press the OK button on ‘Wifi Auto Search’ and the TV will automatically begin searching for nearby Wi-Fi Access Points (WAP).
- Page 47 Menus (Cont.) • Press the up/down buttons to select your home WAP, and press OK. • If the WAP has a security password, enter the password using the remote control or the on-screen keypad, and then press OK. • If the connection is successful, the ‘Connected’...
- Page 48 Menus (Cont.) System SYSTEM SETTING ITEM EXPLANATION OPTIONS English, Spanish, Select the On Screen Display (OSD) Language Italian, Dutch, language. Portuguese Select the primary audio language Multiple Audio languages (only available in DTV mode and must languages be supported by viewing program). Select the secondary audio language Multiple Audio Languages 2...
- Page 49 Menus (Cont.) SYSTEM Select the secondary subtitle language Multiple Subtitle Languages 2 (only available in DTV mode and must languages be supported by viewing program). Turn the Hearing Impaired function On/Off. (Only available in DTV mode Hearing Impaired On/Off and must be supported by viewing program).
- Page 50 Menus (Cont.) SYSTEM Turn CEC On/Off. HDMI CEC: On/ Turn On CEC to activate Auto Standby and ARC settings. When turned On, the CEC-enabled Auto Standby: HDMI CEC external device will go into standby On/Off when the TV is placed in standby. When turned On, send audio back ARC: On/Off to the ARC-enabled external audio...
- Page 51 Smart TV First Time Setup Press the Smart TV/TV button on the remote control to switch the unit to Smart TV mode. When turning to Smart TV mode for the first time, you will be prompted to select the following settings: Language •...
- Page 52 Smart TV (Cont.) Terms and Conditions • Use navigation buttons to select an option. • To skip this step, select “Continue” and press the OK button to enter the next page. Wi-Fi (only appear when a LAN cable is not connected) •...
- Page 53 Smart TV (Cont.) Smart TV Operations • Press the navigation buttons on the remote control to select your desired option, and press the OK button to confirm your selection. • Press the RETURN button on the remote control to return to the previous page.
- Page 54 Smart TV (Cont.) 1. Wireless & Network Select “System Settings” on the home page and press the OK button. Wi-Fi: • Turn on/off Wi-Fi and select an available Wi-Fi account. Then connect a Wi-Fi ID following the on-screen instructions. If a password is required: •...
- Page 55 Smart TV (Cont.) 2. Browser • Use the navigation buttons to highlight (Browser) on the HOME page and press the OK button to open it. • Use the navigation buttons to move the cursor to the URL input field. • Press the OK button to open the on-screen keyboard.
- Page 56 Smart TV (Cont.) 3. Apps Downloading and installing apps • To install apps, click on Google Play Store to browse or search for the desired app. Click on INSTALL and follow on-screen instructions to install the app. • • Once installed, click on the app icon to start the app. Saving an app to Favourites •...
- Page 57 Smart TV (Cont.) 5. Settings Use the navigation buttons to highlight (System Settings) on the home page and press the OK button enter it. Basic Operations • Press the navigation buttons to highlight your desired option. • Press the OK button to enter a submenu. •...
- Page 58 FAQs (Cont.) General Problems with the TV Set (Cont.) No key operation (by Disconnect the power plug and then reconnect the main unit and/or it. (The unit may not be operating properly due to the remote control) is lightning, static electricity or some other factors.) effective.
- Page 59 FAQs If you experience any problems with your TV, check the list below and take any necessary steps before calling for service. If none of the solutions help you solve the problem, turn the power off and contact the After Sales Support line for advice.
- Page 60 Specifications 55” 4K Ultra High 75” 4K Ultra High Specification Definition LED LCD Definition LED LCD Smart TV Smart TV Screen Size 55” (140 cm) 75” (189 cm) Resolution 3840 x 2160 3840 x 2160 Contrast Ratio 3000:1 3000:1 Brightness 220 cd/m 220 cd/m Aspect Ratio...
- Page 61 Responsible Disposal Packaging The packaging of your TV has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of.
-
Page 62: Warranty Card
Warranty Card This product is guaranteed against faulty materials and workmanship for a period of three years from the date of purchase with proof of purchase. The obligation to the purchaser under this warranty is limited to servicing the unit and replacing defective parts or refund when product is returned fright prepaid to the retailer with proof of purchase.
