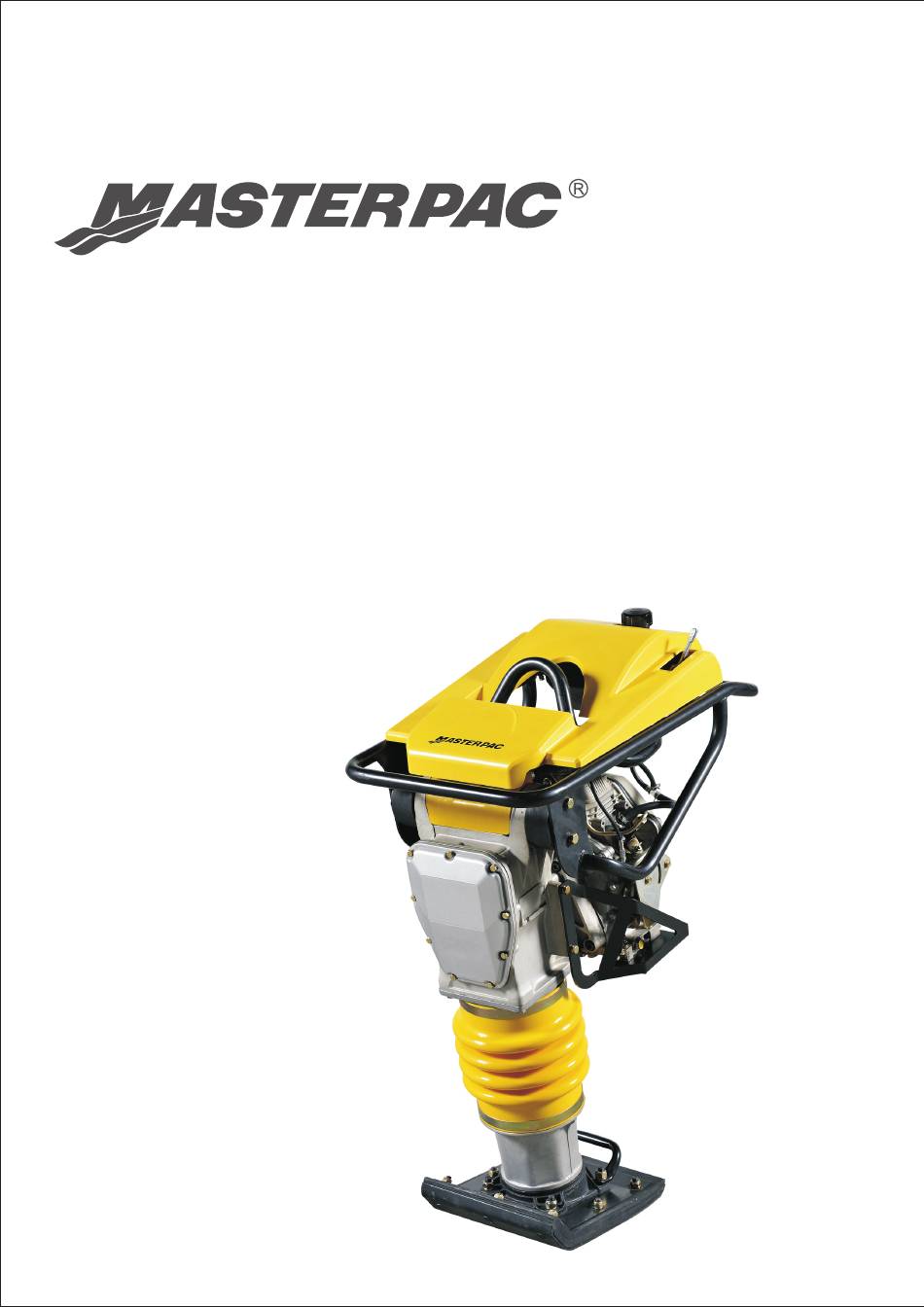

  • Page 1 Professional Compaction OPERATION MANUAL TAMPING RAMMER PMR85D...

  • Page 2: Table Of Contents

    Table of Contents 1. SAFETY INFORMATION . …………………………………………………………………. 2 1.1 Safety Precautions …………………..…………………………………………………… 2 1.2 Operating Safety……………………………………………………………………………3 1.3 Operator Safety while using Internal Combustion Engines…………………..………..4 1.4 Service Safety ……………………………………………………………………..……….5 1.5 Label Locations………………………………………………………………..……………6 1.6 Safety Labels……………………………….…………………………... ….……………7-8 1.7 Operating Labels……………………………….…………………………... …………… 9 2.

  • Page 3: Safety Information

    SAFETY INFORMATON 1.1 Safety Precautions Before using this equipment, study the entire owner’s manual to become familiar with its operation. Do not allow untrained or unauthorized personnel, especially children, to operate this equipment. Use only factory authorized parts for service. This manual contains DANGER, WARNING, CAUTION callouts which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service.

  • Page 4: Operating Safety

    Burns will result. NEVER  use accessories or attachments which are not recommended by MASTERPAC for rammer. Damage to rammer and/or injury to user may result.  NEVER leave a running machine unattended.  NEVER run machine indoors or in an enclosed area such as a deep trench unless adequate ventilation is provided.

  • Page 5: Operator Safety While Using Internal Combustion Engines

    SAFETY INFORMATON Operator Safety while using Internal Combustion Engines Internal combustion engines present special hazards during operation and fueling. Read and follow the warning instructions in the engine owner‟s manual and the safety guidelines below. Failure to follow the warnings and DANGER safety guidelines could result in severe injury or death.

  • Page 6: Service Safety

     ALWAYS do Periodic Maintenance as recommended in Operation Manual.  ALWAYS clean debris from engine cooling fins.  ALWAYS replace worn or damaged components with spare parts designed and recommended by MASTERPAC for servicing this rammer.

  • Page 7: Label Locations

    SAFETY INFORMATION Label Locations...

  • Page 8: Safety Labels

    SAFETY INFORMATION 1.6 Safety Labels MASTERPAC machines use international pictorial labels where needed. These labels are described below: Label Meaning This model-in label contains important safety and operating information. If it becomes illegible, the cover must be replaced. Refer to the Parts Manual for ordering information.
  • Page 9 SAFETY INFORMATION Label Meaning CAUTION! For optimal control, performance, and minimal hand/arm vibration, grasp handle as shown. CAUTION！ Do not lay down! WARNING! Serious injury if struck by compressed spring or cover. If the spring system cover is removed improperly, the springs can eject. Guaranteed sound power level in dB(A).

  • Page 10: Operating Labels

    SAFETY INFORMATION 1.7 Operating Labels MASTERPAC machines use international pictorial labels where needed. These labels are described below: Start the engine: ① Turn the fuel valve by moving th fuel cock level to the open position. ② Press down the decompression lever.

  • Page 11: Operation

    OPERATION Operation 2.1 Application Rammers are designed to compact loose soils and gravel to prevent settling and to provide a firm, solid base for the placement of footings, concrete slabs, foundations, gas piping works, water pipe works and cable backfill works, etc. Please do not use in such as following cases.

  • Page 12: To Start

    OPERATION 2.4 To Start 1. Turn the fuel valve by moving the fuel cock level to the open position. 2. Press down the decompression lever. (When pulling the recoil starter rope, the decompression lever will automatically return to initial position.) 3.

  • Page 13: Operation

    OPERATION 2.6 Operation 1. Turning the choke level to open the choke. Running the engine for 5 minutes at low speed to warm the engine. 2. Move the throttle level quickly to the “FULL OPEN” position. DO NOT move the throttle level slowly as this may cause damage to the clutch or spring.

  • Page 14: Maintenance

    MAINTENANCE 3 MAINTENANCE 3.1 Periodic Maintenance Schedule The chart below lists basic maintenance. Refer to engine manufacturer‟s Operator‟s Manual for additional information on engine maintenance. A copy of the engine Operator‟s Manual was supplied with the machine when it was shipped. Daily After Every...

  • Page 15: Transporting

    MAINTENANCE 3.2 Transporting 1. Shutdown engine for transportation. 2. For transportation, tighten fuel tank cap securely and close fuel cock to prevent fuel from spilling. 3. Drain fuel for transportation over long distance or bad road. 4. Secure machine firmly to prevent it from moving or tipping. 5.

  • Page 16: Storage

    MAINTENANCE 3.4 Storage Rammer should be stored in such position as it is placed on level after engine and machine have been cooled down. Be sure to secure the rammer as necessary to avoid falling down. 3.4.1 Long-Term Storage  Drain fuel from fuel tank, fuel line and carburetor.
  • Page 17 MAINTENANCE SYMPTOM POSSIBLE CAUSE SOLUTION Indicator Stays On – Key Switch is Turned from Start to ON (START→ON) See authorized Yanmar Engine oil pressure Faulty engine oil pressure industrial engine dealer or indicator stays On switch distributor Engine Does Not Start No diesel fuel Refuel fuel system Replace with recommended...

  • Page 18: Technical Data

    TECHNICAL DATA 4. TECHNICAL DATA Model PMR85D Engine type YANMAR L48N Engine speed 3600±100 operating rpm Power kw (hp) 3.5 (4.76) Weight kg (lb) 89 (196) Impact Force kN 18KN Jumping stroke 40-80 (1.6-3.1) mm (in) Fuel tank Capacity L Shoe Size 285x330 (11.2x13.0)

  • Page 19: Warranty

    WARRANTY MASTERPAC products are covered by warranty for a period of twelve (12) months from the date of purchase against defects in material or workmanship provided that: The product concerned has been operated and maintained in accordance with the ...

  • Page 20: Maintenance Record

    MAINTENANCE RECORD PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN MASTERPAC rammer has been assembled with care and will provide years of service. Preventative maintenance and routine service are essential to the long life of your rammer. After reading through this manual thoroughly, you will find that you can do some of the regular maintenance yourself.

  • Page 21: Ec Declaration

    Tamping Rammer Type / Typ / Tipo / Type: PMR85D Has been sound tested per Directive 2000/14/EC/ In Übereinstimmung mit Richtlinie 2000/14/EG bewertet worden ist / Ha sido ensayado en conformidad con la norma 2000/14/CE/ A éré mis à I‟épreuve conforme aux dispositions de la directive 2000/14/CEE:...
  • Page 22 MASTERPAC INTERNATIONAL: Add. Z.A.C du trou grillon P.O Box 38. 91280 St PIERRE DU PERRAY. FRANCE Tel. +33-6-12-70-02-63 E-mail. intlsales@masterpac.eu MASTERPAC ENGINEERING CO.,LTD Add. Weisi Road, Baohe Industrial Estate, Hefei 230051.China Tel. 86-551-4846601 Fax. 86-551-4846616 E-mail. sales@masterpac.eu www.masterpac.eu Version: 01/12/01...
