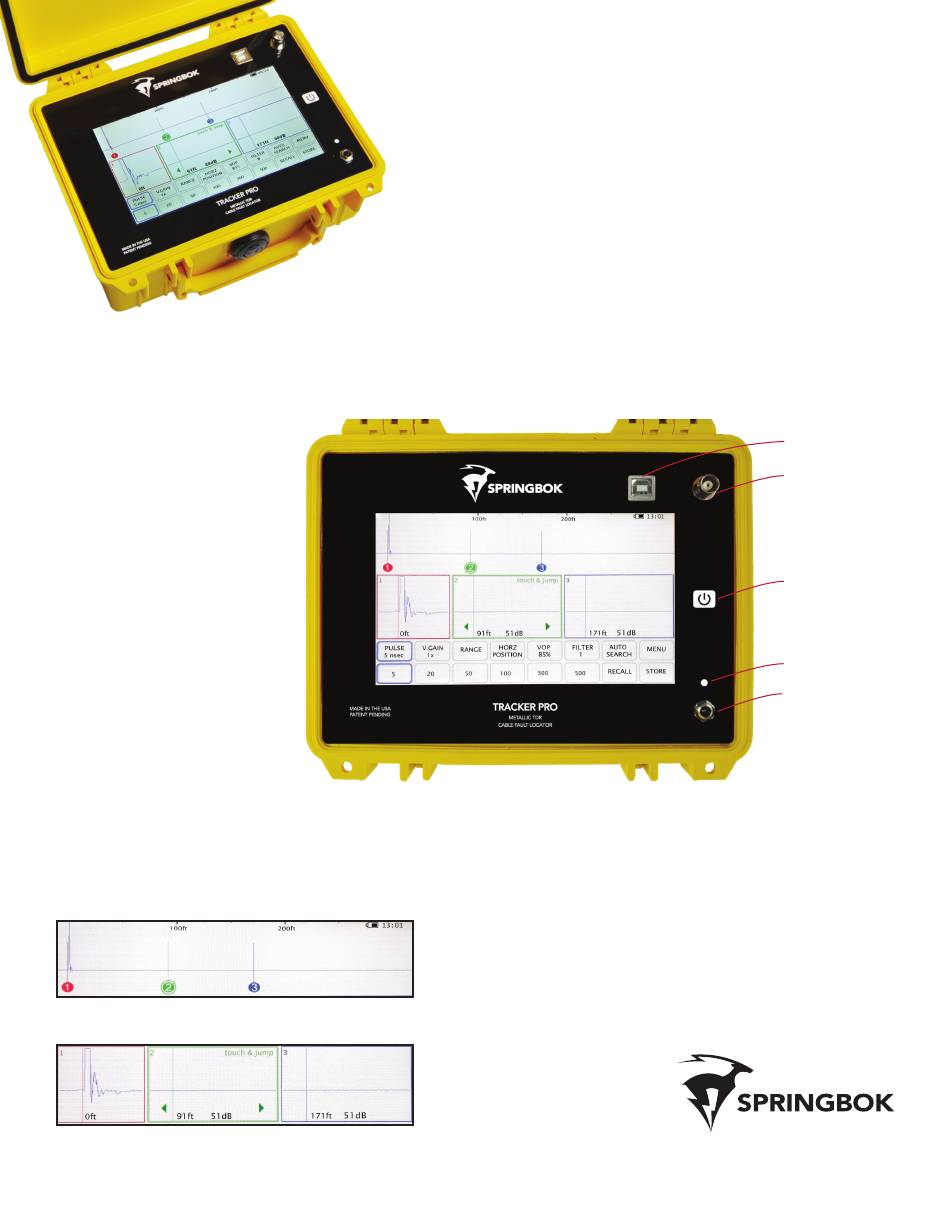

Springbok Tracker Pro Quick Start Manual

Navigation

Tracker Pro uses a touch screen navigation. By touching the PULSE, V.GAIN, RANGE, HORZ POSITION, VOP or
FILTER button, you will be given sub-choices in the buttons below.

Pulse (nsec)

5, 20, 50, 100, 300 and 500

V. Gain

1x, 2x, 4x and 8x

Range

1, 2, 3, 4, 5 and 6

Horz Position

left and right

VOP

up and down

Filter

1, 4, 8 and 16
The zoom windows provides a more detailed view of the waveform by being further horizontally magnified.
To move the zoom window to a different position on the waveform, touch the desired window and use the left
and right arrows.

Overview window

Zoom windows (1, 2 and 3)

Tracker Pro

Quick Start Guide

For more information about the Tracker Pro,
please refer to the instruction manual.
Splash Proof USB
BNC
Splash Proof USB

Touch and Jump

BNC
The Tracker Pro has the unique feature of touch &
jump. Touching inside of a zoom window, will select the
corresponding cursor. Once the desired cursor is selected
Power Button
touching the overview window will jump the cursor to that
location on the waveform.
Power Button
Charging LED
Charging Port
Charging LED
Charging Port
Splash Proof USB
BNC
Power Button
Charging LED
Charging Port
