Summary of Contents for PI S7-Firewall

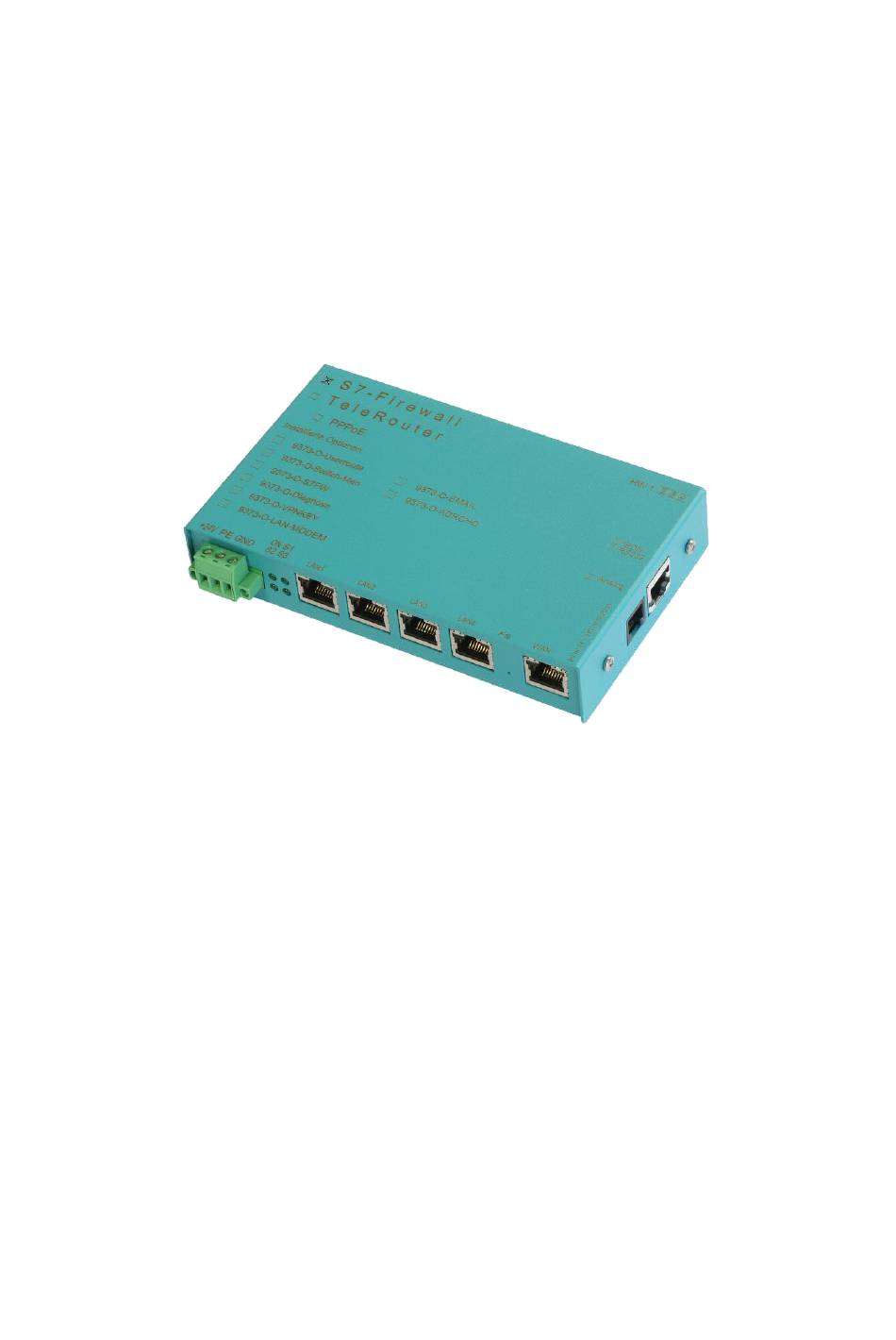

- Page 1 S7-Firewall user manual (english) Art.Nr. 9373-S7-FIREWALL 17.05.2019 © PI 2019...
-
Page 2: Table Of Contents
1.12 entering of the HMI / PG station ....................8 1.13 entering of the SPS station ......................8 1.14 entering of the S7 firewall connections ..................9 1.15 The rulescript ..........................9 2 Technical data ..........................10 2.1 pin assignment power supply ....................10 2.2 Pinning Ethernet ........................10 Handbook S7-Firewall Page 2 of 12... -
Page 3: Installation
There are only configured connections permitted. 1.4 hardware execution 1.4.1 standard hardware execution In the standard execution the S7 firewall is equipped with a WAN port and 4 LAN ports configured as a switch. Page 3 of 12 Handbook S7-Firewall... -
Page 4: Configuration
• If the LED S3 (bottom right) lights press the button again. Then the device will boot in the default settings. Now, the desired changes to the Network settings can be made. These settings are only after restart the device active. 1.6 configuration Handbook S7-Firewall Page 4 of 12... -
Page 5: Network Configuration
WAN/IP IP routing via WAN modem IP routing via modem WAN/PPPOE IP routing via PPPoE at the WAN-Port WAN/OVPN routing via OVPN at the WAN-Port WAN/Bridge ethernet routing at the WAN-Port 1.7 network configuration Page 5 of 12 Handbook S7-Firewall... - Page 6 For the operation as a DHCP / server there can be set fixed assignments MAC IP address (See below "DHCP fixed MAC /IP address mapping"). Further defines what services are available at the port (Web config), ping, SSH (for developers only) Handbook S7-Firewall Page 6 of 12...
-
Page 7: Dhcp Fixed Mac /Ip Address Mapping
Here the mask for entering the web user interface. Different permissions can be assigned per user. Generall, only one user is allow to make "SU"-changes. U1 - U5 only can use the interface. In the TeleRouter expansion modules "U1" - "U5" have more precisely specified operation rights. Page 7 of 12 Handbook S7-Firewall... -
Page 8: S7 Firewall Settings
Siemens PG software always uses the PG channel. Unfortunately, different software on the market is in use, which does not have the know-how to set this channel. To figure that out, you have to Handbook S7-Firewall Page 8 of 12... -
Page 9: Entering Of The Sps Station
"link" to open and edit the control script yes (x) connections with this station are processed by the firewall active connections with this station will not be processed, i. e. they are no () blocked Page 9 of 12 Handbook S7-Firewall... -
Page 10: The Rulescript
The following area is only to read (read operand / area) only) operand / area (see The following area is only to write (write below) only) The following area is to read and to write (read/write) Handbook S7-Firewall Page 10 of 12... -
Page 11: Technical Data
Easy to start with operands, -, specify the end operands (end address). The end address is included! 2 Technical data 2.1 pin assignment power supply Pin number Short form Designation Direction P24V 24V DC voltage input earthing input M24V mass input Page 11 of 12 Handbook S7-Firewall... -
Page 12: Pinning Ethernet
2.2 Pinning Ethernet Pin no. Short name Notation Direction TX + receive line + TX – receive line – RX + send line + RX – send line – Handbook S7-Firewall Page 12 of 12...
