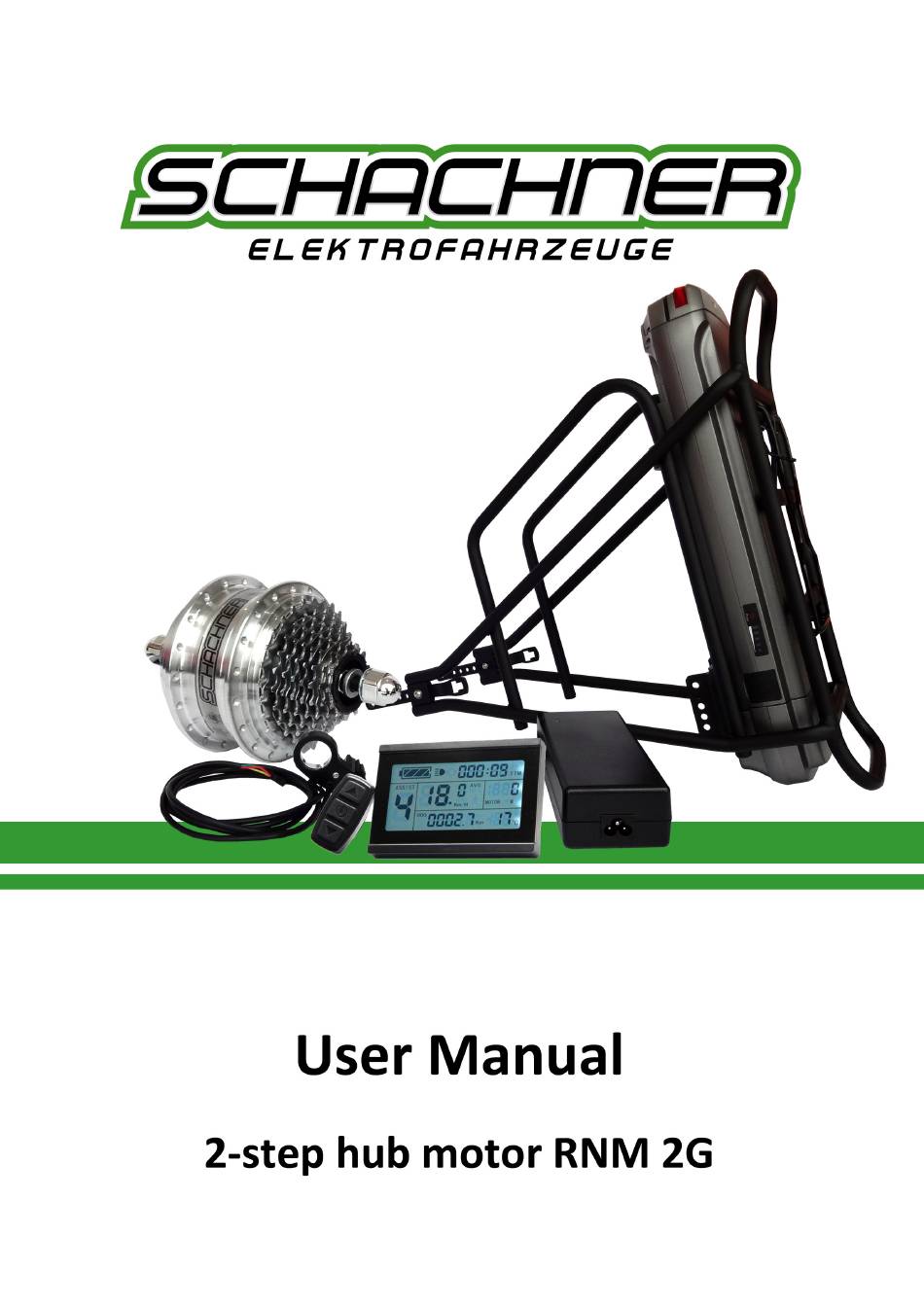

Summary of Contents for Schachner RNM 2G
- Page 2 Stand Jänner 2015...
- Page 3 Preface Dear client! We want to congratulate on your acquisition of a Schachner cen- tral motor – electric kit. We are glad to inform you about opera- tion, maintenance and care of our e-kits on the following pages. You bought a product from Austria which have been technically improved during more than 24 years and is approved in Europe for 10.000 times.
-
Page 4: Table Of Contents
1 Content Content ................3 Warranty ................. 5 Scope of supply ............... 7 Driving operation ............. 9 Function description: Controller ........10 Function description: Speed sensor ......... 10 Function description: motor 2-step ......... 10 Function description: carrier ........... 11 Function description: charger ......... 11 10 Function description: Battery .......... - Page 5 To avoid faults please read the operating instructions very carefully before putting the e-kit into operation. This kit offers numerous functions which can only be used opti- mally by using the kit in the right way. This is also important to reach optimal life cycle and distance.
-
Page 6: Warranty
2 Warranty Gemäß dem seit 1. Jänner 2002 gültigen europäischen Gewähr- leistungsrecht steht Ihnen eine gesetzliche Gewährleistung von 2 Jahren zu. Die Gewährleistungsfrist beginnt mit der Übergabe des Bausatzes. Zum Nachweis des Kauf- bzw. Über-gabedatums heben Sie die Rechnung für die Dauer der Gewähr-leistung auf. Werden Ersatzteile im Rahmen eines Gewährleis-tungsfalles ein- gebaut, wird die Frist nicht zusätzlich verlängert. - Page 7 the complained damage or fault already existed at the time of hand over to the customer, the damage or the fault causally occurred because of an in- tended deallocation from Schachner GmbH. The warranty includes all necessary spare parts. Further demands are excepted.
-
Page 8: Scope Of Supply
3 Scope of supply When you acquire an e-kit from Schachner GmbH, it consists of the following parts: LCD-Display with connection cable and control unit Switch for choosing the gear of the motor Throttle grip with connection cable ... - Page 9 Assembly plan Throttle grip with cable Display with cable and control unit Geschwindigkeits- battery sensor carrier controller Speed sensor Motor with motor cable...
-
Page 10: Driving Operation
4 Driving operation A bicycle, with Schachner e-kit is according to the European draft standard prEN 15197 an “EPAC” (Electically Power Assisted Cycle) also called “pedelec” (pedal electric cycle). The Schachner Pedelec is a bicycle including drive support. It is equipped with an electromotive auxiliary drive with a maximum continuous rating of 250 Watt. -
Page 11: Function Description: Controller
5 Function description: Controller The controller is situated in the battery holder on the carrier. It’s function is required to control the electric power of the bicycle. 6 Function description: Speed sensor The speed sensor (mounted between the cranks and the bottom bracket) with the magnetic disc is required to record the pedal frequency. -
Page 12: Function Description: Carrier
8 Function description: carrier The battery is located in the carrier or directly fixed in the frame (depending on the model) and it has a cable which leads to the controller. The lock protects the battery from dropping out of the carrier and from thefts. 9 Function description: charger For charging you can take out the battery or charge it directly on the bike. -
Page 13: Function Description: Battery
The charging procedure takes about 3-7 hours, depending on the power of the battery. The charging rate is approximately 2 Am- pere and the charging voltage is 36V. As soon as the battery is completely loaded the charging will be stopped automatically. - Page 14 The state of charge of the battery you can control on the integrated display on the bat- tery, when you push the red button. The bat- tery is empty if only the red lamp is light. The length of the way you can drive with a full battery charge depends decisive on structure of the way, ambient temperature, head wind, tyre pressure, weight of the driver, age of the battery as well as how often you use the motor and how strong you pe-...
-
Page 15: Handling And Function Of The Lcd-Display
11 Handling and function of the LCD-display Outlook and size ON-button Supporting modes Bedienung und Einstellung Press this button and the display is powered on and supplies electricity to the controller. Press this button for short time again and the display is switched off. If the bicycle is not used, the display switches off automatically after 5 minutes. - Page 16 Functions Background light Press this button when the display is powered on, and the background light is switched on. Press this button again and the light is switched off. On the homescreen follwoing functions are shown: battery indica- tor, current time, supporting modes, driving speed, driven kilome- tres, motor power, temperature, background light.
- Page 17 Delete recorded data When the display is powered on, push and hold for two seconds. Driven time and driven kilometres start flashing. After that, press and both information are deleted. When the display is powered on, press within the next 5 seconds to enter the settings menu. Maximum speed Press either to adjust the maximum driving speed.
-
Page 18: Driving Mode
12 Driving mode Insert the battery into the carrier, lock up the carrier and remove the key. Hold on the display to switch-on the system. The bicycle is ready to start. The gear switch does have three posi- tions: „L“, „A“ and „H“. „L“... -
Page 19: Disposal
13 Disposal The battery needs to be disposed according to the Guideline 2006/66/EG from European parliament and council with separate waste and may not be dis- posed with the normal garbage. As consumer you are legally liable to dispose the old battery-pack according to the regulations. - Page 20 To have an idea from the energy content of your small and harmless looking battery, please consider that it would be pos- sible to start a big, heavy diesel engine of a truck without any problems with this battery! - Project the electric drive unit from moisture. Avoid dropping, spraying and rain water.
-
Page 21: Technical Data
Charging current: 1,5 Ampere Charging time: 3-7 hours We hope you enjoy using your e-kit and wish you always a good ride with your Schachner electric drive unit! Schachner GmbH, Gewerbepark Pölla 6, A-3353 Seitenstetten Tel. +43 (0) 7477/42973, Fax DW 13, UID Nr.: ATU52754700...
