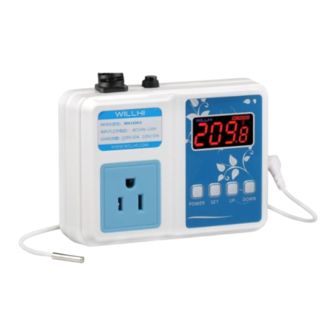

WILLHI Digital Temperature Controller
User's Guide
Model: WH1436A

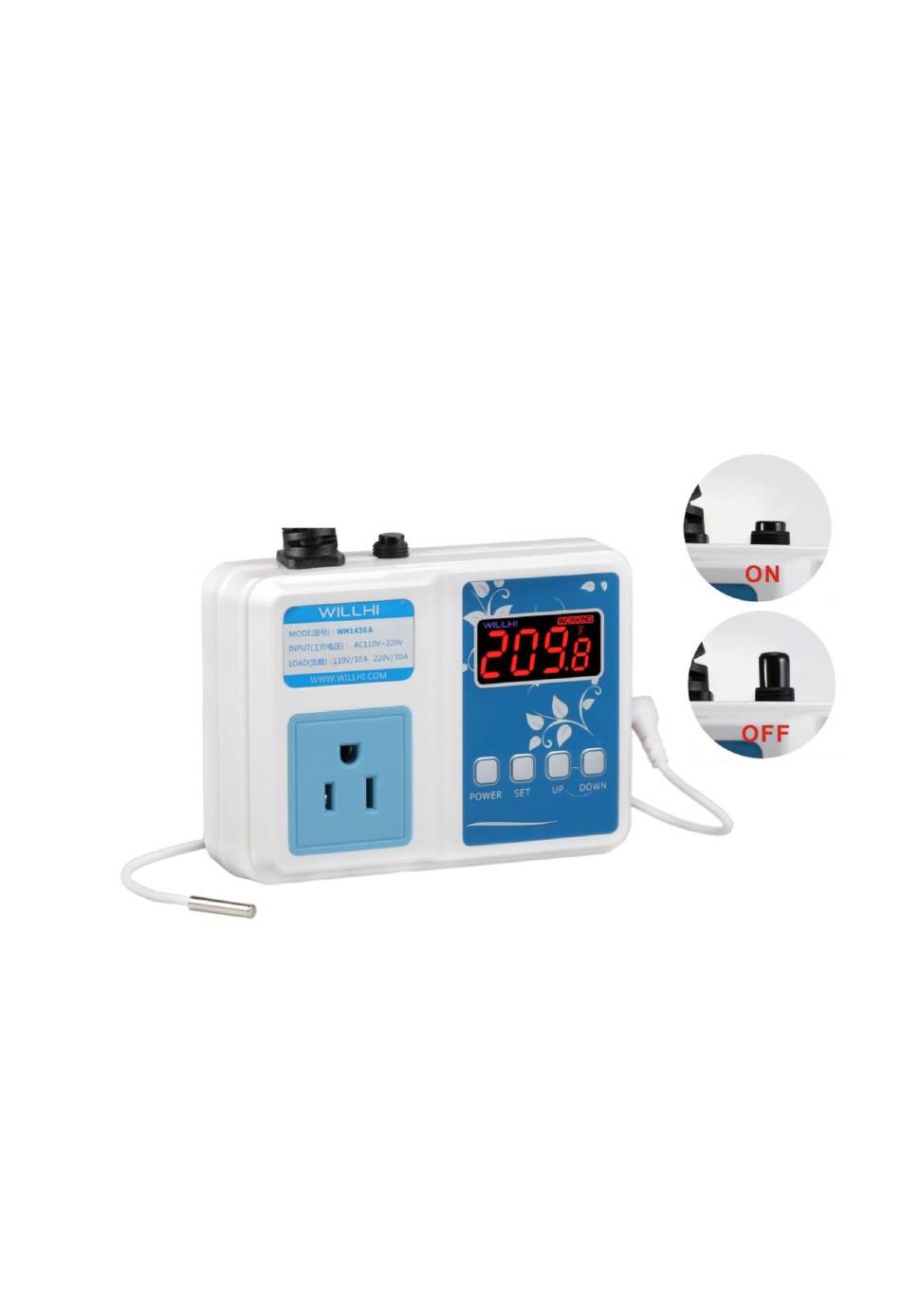

New Safety Feature:
The fuse reset button pops out when a short
※
or overloading is detected. If the fuse reset pops out, the short or
overloading condition must be fixed before the button will stay
pushed in. Do not manually hold the button in as this will create a
dangerous condition. The button needs at least 2cm(0. 8 inches)
clearance to pop out. Be sure it's not blocked.
Search "WH1436A INSTRUCTION" for the video on YouTube
Shenzhen Bayite Technology Co., Ltd
Email: service@bayite.com
Advertisement
Table of Contents
Summary of Contents for Willhi WH1436A
- Page 1 Do not manually hold the button in as this will create a dangerous condition. The button needs at least 2cm(0. 8 inches) clearance to pop out. Be sure it's not blocked. Search "WH1436A INSTRUCTION" for the video on YouTube Shenzhen Bayite Technology Co., Ltd Email: service@bayite.com...
-
Page 2: For Safe Operation
Precautions WARNING ※ This temperature controller is rated for 10 amps maximum. This is 1100 watts at 110 volts or 2200 watts at 220 volts. Check the power requirements of your intended output device prior to use to ensure compatibility. ※... - Page 3 Thank you for choosing this WILLHI Digital Temperature Controller! Please read through this manual for trouble free operation. Features: Turn device on and off at desired temperatures. Settings are saved even when powered off. Temperature calibration correction ...
-
Page 4: Quick Start
Using your Digital Temperature Controller SET indicator is on In setting mode SET indicator is off In control mode HEAT/COOL indicator is on Supplying output power HEAT/COOL indicator is off Not supplying output power HEAT/COOL is flashing Time delay in effect 1. -
Page 5: Troubleshooting
Menu Key: Code Default Range Definition Explanation -58 ~ 230 Temperature at which the unit supplies output power. -58 ~ 230 Temperature at which the unit shuts off output power. -9~9 Calibrate the reading Optional. If displayed temperature is 3 degree higher than the actual temperature, set CA to -3. -
Page 6: Advanced Settings
Advanced Settings: Hold SET and UP buttons for 3 seconds to enter the advanced settings menu. Code Default Range Definition Explanation F or C F or C Temperature The default unit is set according to region. unit 1 or 10 Number Optional.
