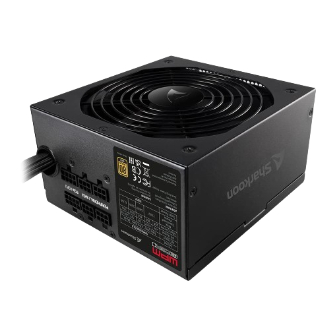

Summary of Contents for Snarkoon WPM Gold ZERO Series
- Page 1 MANUAL...
-
Page 2: Table Of Contents
Content Specifications ....... . . 3 General ....... . . 3 1.2 Package Contents. -
Page 3: Specifications
1. Specifications 1.1 General Power 550, 650 or 750 Watt Warranty 2 Years PCIe Connector 4x 6+2-Pin 140 mm Fan with Fluid Dynamic Bearing 20 % Load: min. 87 % Efficiency 50 % Load: min. 90 % 100 % Load: min. 87 % 80 PLUS Certification Gold 1.2 Package Contents... -
Page 4: Model-Specific
1. Specifications 1.3 Model-Specific Model WPM Gold ZERO 550 Voltage Current Frequency Input (AC) 100 - 240 V 8 A / 4 A 47 - 63 Hz Output Voltage (DC) +3.3 V +5 V +12 V -12 V +5 Vsb Max. -
Page 5: Safety Standards And Protections
2. Safety Standards and Protections This power supply is designed for a mains voltage of 100 - 240 volts. It complies with CE, FCC and CB safety standards and has the following protection features: Over Power Protection (OPP) If the system demands more power than the specifications allow, the power supply will switch off to protect the electronics from damage. -
Page 6: Installation
3. Installation 3.1 Removal of Existing Power Supply from PC Case If installing into an empty PC case, proceed to the section “Installing the Power Supply in a PC Case“. For a PC case with an already installed power supply, first remove this from the case. Proceed as follows: 1. -
Page 7: Connection Options
4. Connection Options The WPM Gold ZERO has a semi-modular cable system. In addition to the permanently attached ATX cable and the 4+4-pin CPU cable, only those cables are used on the power supply which are actually needed when connecting hardware and peripherals. The complete wiring and the inside of the case thus remain tidy, and the air flow is not unnecessarily obstructed. -
Page 8: Cable Diagram
5. Cable Diagram The WPM Gold ZERO comes with a range of modular ribbon cables with the following connectors: 70 cm 85 cm 55 cm 1x Cable with 24-Pin Mainboard Connector (permanently attached cable) 2x Cables each with 1x 4+4-Pin CPU Connector (1x permanently attached cable) 2x Cables each with 2x 6+2-Pin PCIe Connectors 3x Cables each with 3x SATA Connectors 1x Cable with 3x IDE Connectors 1x Floppy Connector... -
Page 9: Connecting
6. Connecting 6.1 Connection for Mainboard and Graphics Card 1. Connect the cable with the 24-pin mainboard connector to the appropriate sockets on the mainboard. 2. If your mainboard has an additional 4-pin / 4+4-pin CPU connection, plug the connector into the socket on the mainboard and the power supply. -
Page 10: Troubleshooting
7. Troubleshooting If the power supply is not functioning correctly, check the following points: 1. Is the power cord correctly connected to the wall outlet and the socket of the power supply? 2. Make sure the on/off switch is in the “I“ position. 3. - Page 11 Legal Disclaimer For potential loss of data, especially due to inappropriate handling, Sharkoon assumes no liability. All named products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at Sharkoon, the design and specifications are subject to change without prior notice.
