Hubbell Dual-Lite CVT3 Series Installation Instructions

Combination emergency unit/ led exit signs

Advertisement

Quick Links

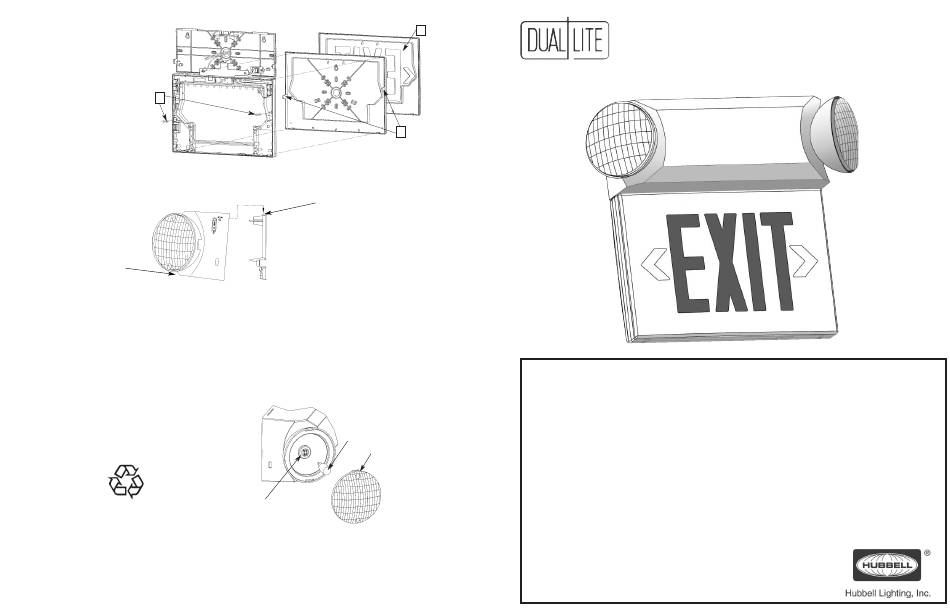

Double Face Applications (Universal Models Only)

1. Remove safety tabs to free back plate
retainer clips.
2. Disengage detents on bottom edge of back
plate and press both retainer clips inward to
remove back plate.
3. Place double face stencil assembly onto
back side of exit frame and snap into place.
1

Final Assembly

1. Dress wires neatly to prevent pinching.
3. Pivot housing and
snap closed.

TROUBLE SHOOTING

AC-On Light does not illuminate
• Check AC wiring connections.
Exit Sign does not illuminate
• Check AC wiring and ribbon cable connections.
Emergency lamps do not work
• Battery is shipped disconnected. Connect red lead from PC
board to positive (+) battery terminal and
charge before testing.
• Make sure charger board is properly seated.
• Check wiring connections.

MAINTENANCE

Units should be tested and maintained in accordance with National
Electrical Code and NFPA 101 Life Safety Code requirements. It is rec-
ommended that emergency lighting units be tested for 30 seconds once
a month and for 90 minutes once a year.

RECYCLING INFORMATION

All thermoplastic parts
are recyclable.
All cartons contain recycled
materials. Please recycle.
NOTICE:
Units contain rechargeable lead-acid or nickel-cadmium batteries
which must be recycled or disposed of properly.
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright© Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
2
2. Align housing slots over
back plate tabs.
4. Energize unit. Charge a minimum of
24 hours prior to testing.
5. Press test switch and hold. Aim lamp
heads for proper light distribution.

LAMP REPLACEMENT

CAUTION: Allow defective lamp to cool completely before
attempting replacement.
1. Remove plastic lamp lens by prying carefully with screwdriver at
arrow locations.
2. Pull defective lamp from lighting head assembly and unplug lamp
from socket.
3. Plug replacement lamp into socket and install lamp into lighting
head assembly.
4. Re-install lamp lens.
Wedge-base
incandescent lamp
Lamp lens
2-pin lamp socket
0603192 1/08
3
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Do not use outdoors.
2. Do not mount near heaters or hot surfaces.
3. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering
by unauthorized personnel.
4. The use of accessory equipment not authorized by the manufacturer may cause an unsafe condition.
5. Do not use this equipment for other than its intended purpose.
6. Service of this equipment should be performed by qualified service personnel.
Emergency Lighting And Power Equipment For Use In Damp Locations
Damp location listed units are suitable for installation in:
1. Interior locations subject to moderate degrees of moisture, such as some basements, some barns, some
cold-storage warehouses, and the like.
2. Partially protected locations under canopies, marquees, roofed open porches
and the like.
SAVE THESE INSTRUCTIONS
Combination Emergency Unit/

Installation Instructions

IMPORTANT SAFEGUARDS

CVT3 Series
LED Exit Signs
