Artillian 3pt Quick Hitch Adapter Installation Instructions

For the artillian jdqa & jdpo pallet fork frames

1. Remove the fork tines from your Artillian frame.

2. Dangle the Tethered Lock Keys over the front side of the adapter plate.

3. Lift the adapter plate with the 3pt connection points facing away from the fork frame rails. The

away facing side will have the "hooks" that will mount on the rails of your fork frame.

4. Approach the fork frame at either end of the fork rails. Set a top hook of the adapter plate on the

upper fork rail, align the lower hook with the lower rail then carefully slide the adapter plate

completely on to the center of the fork frame. WATCH FOR PINCH POINTS AS YOU SLIDE THE

PLATE ON. See Fig 1

5. Once the plate is centered on the fork frame, install the two Lock Keys through the plate and

through the aligned slots in the fork rails. See Fig 2

3pt Quick Hitch Adapter Installation

For the Artillian JDQA & JDPO Pallet Fork Frames

Please review these instructions before installing!

Caution – Close Fit

Watch for Pinching!!

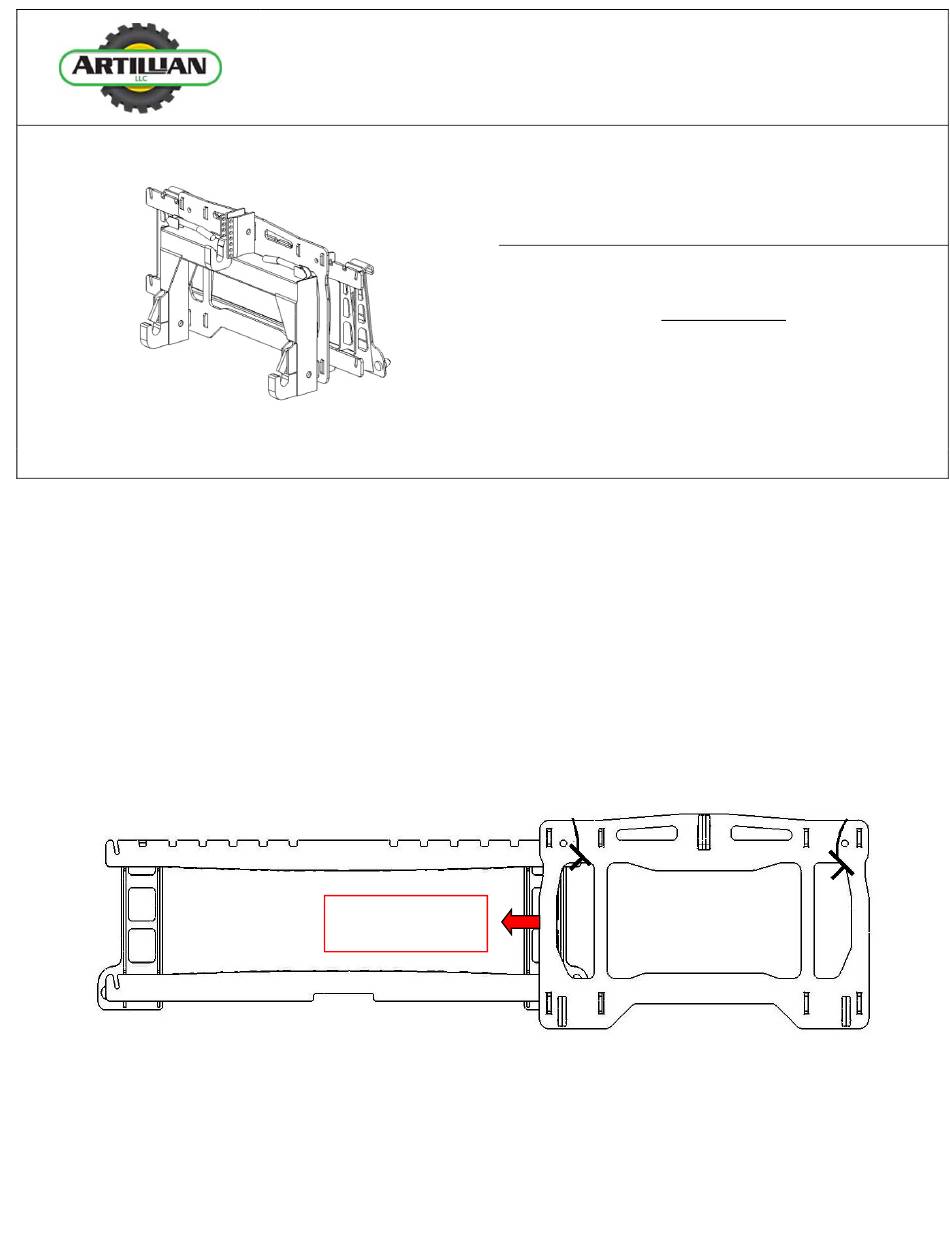

Fig 1

Instructions

The Artillian 3pt Quick Hitch adapter turns your

Artillian pallet fork frame into a tool to attach 3pt

tractor implements to the front end loader of your

tractor, such as landscape rakes, plows, aerators,

1. (1) Adapter Plate

2. (2) Tethered lock keys

trenchers, etc.

Parts Included

IM‐5‐QHA

Rev. A, 05/08/2017

Table of Contents

Do you have a question about the 3pt Quick Hitch Adapter and is the answer not in the manual?

Page 1 For the Artillian JDQA & JDPO Pallet Fork Frames The Artillian 3pt Quick Hitch adapter turns your Artillian pallet fork frame into a tool to attach 3pt tractor implements to the front end loader of your tractor, such as landscape rakes, plows, aerators, trenchers, etc.
Page 2 8. Remember to lower the locking levers on your Quick Hitch after your implement is attached! All safety guidelines illustrated in your tractor and loader owner’s manuals should be observed whenever using Artillian attachments. Thank you and be safe! Be especially cautious when back dragging with any implement. Debris can be thrown directly at you.
