Hydrel TPS3 Series Installation Instructions

Yoke mount

Advertisement

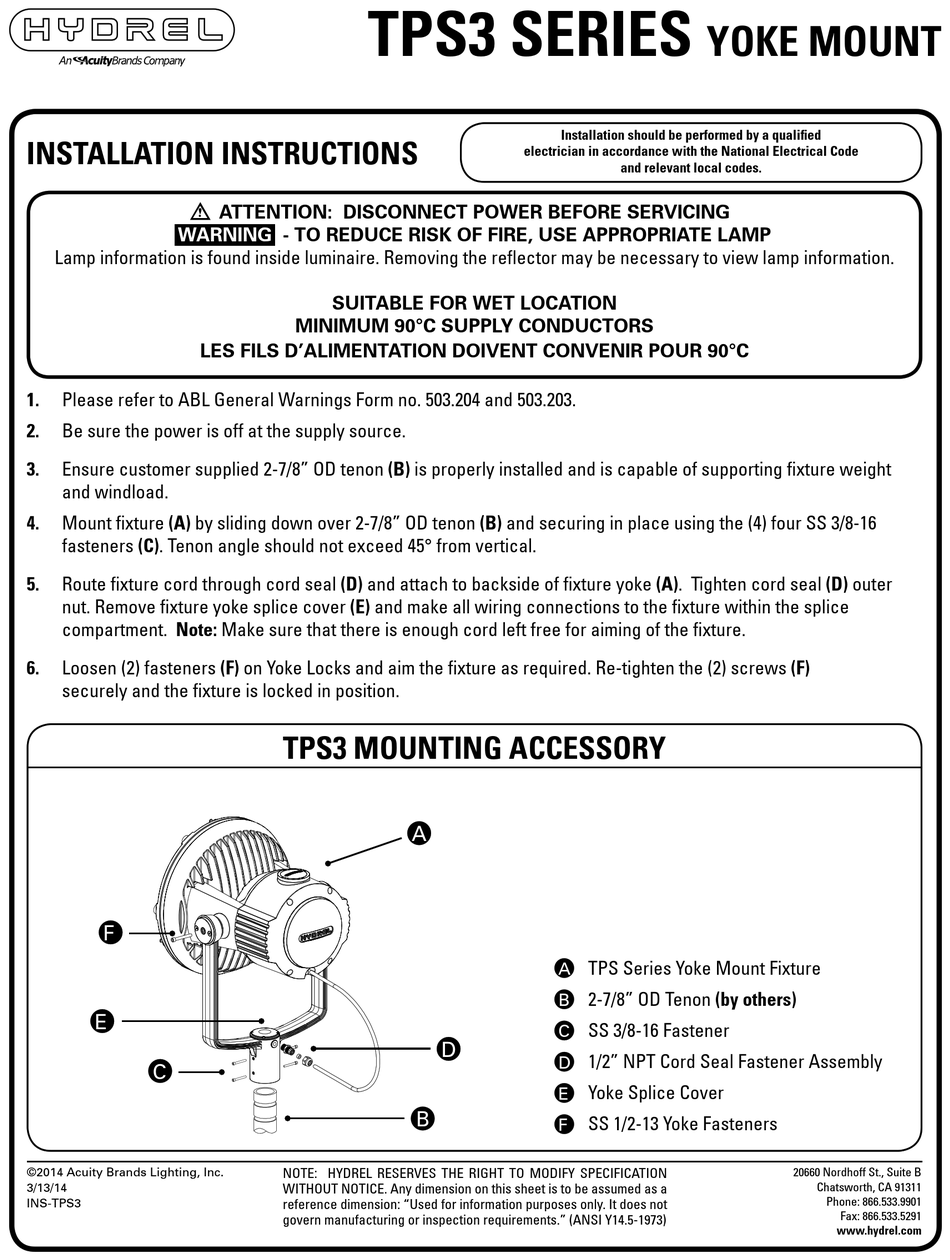

INSTALLATION INSTRUCTIONS

p
!
WARNING
Lamp information is found inside luminaire. Removing the reflector may be necessary to view lamp information.
LES FILS D'ALIMENTATION DOIVENT CONVENIR POUR 90°C
Please refer to ABL General Warnings Form no. 503.204 and 503.203.
1.
Be sure the power is off at the supply source.
2.
3.
Ensure customer supplied 2-7/8" OD tenon (B) is properly installed and is capable of supporting fixture weight
and windload.
4.
Mount fixture (A) by sliding down over 2-7/8" OD tenon (B) and securing in place using the (4) four SS 3/8-16
fasteners (C). Tenon angle should not exceed 45° from vertical.
5.
Route fixture cord through cord seal (D) and attach to backside of fixture yoke (A). Tighten cord seal (D) outer
nut. Remove fixture yoke splice cover (E) and make all wiring connections to the fixture within the splice
compartment. Note: Make sure that there is enough cord left free for aiming of the fixture.
Loosen (2) fasteners (F) on Yoke Locks and aim the fixture as required. Re-tighten the (2) screws (F)
6.
securely and the fixture is locked in position.
F
E
C
©2014 Acuity Brands Lighting, Inc.
3/13/14
INS-TPS3
TPS3 SERIES
ATTENTION: DISCONNECT POWER BEFORE SERVICING
- TO REDUCE RISK OF FIRE, USE APPROPRIATE LAMP
SUITABLE FOR WET LOCATION
MINIMUM 90°C SUPPLY CONDUCTORS
TPS3 MOUNTING ACCESSORY
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION
WITHOUT NOTICE. Any dimension on this sheet is to be assumed as a
reference dimension: "Used for information purposes only. It does not
govern manufacturing or inspection requirements." (ANSI Y14.5-1973)
Installation should be performed by a qualified
electrician in accordance with the National Electrical Code
A
TPS Series Yoke Mount Fixture
A
2-7/8" OD Tenon (by others)
B
SS 3/8-16 Fastener
C
D
1/2" NPT Cord Seal Fastener Assembly
D
Yoke Splice Cover
E
B
SS 1/2-13 Yoke Fasteners
F
YOKE MOUNT
and relevant local codes.
20660 Nordhoff St., Suite B
Chatsworth, CA 91311
Phone: 866.533.9901
Fax: 866.533.5291
www.hydrel.com
