AbleNet Relax Quick Start Manual

Quick Start Guide
Relax™ IR Learning Remote
www.ablenetinc.com
1-800-322-0956
PN 98000042 (10/14 Rev. A - FN 70500204)

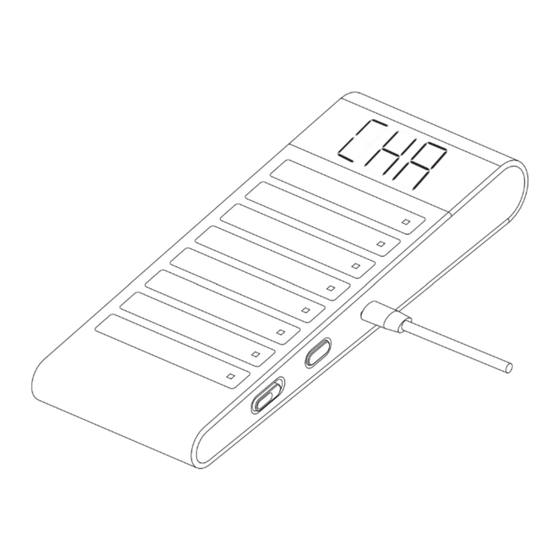

Charging
Plug Micro USB
charger into
Charging Jack.
= Charging
= Full Charge
Product Overview
Switch
Input
Scan
Speed
Learn
Button
On/Off Micro USB
Switch Charging Jack
Program
Unlike some universal remotes that use a code to program the whole remote at
one time, the Relax remote records the IR signal of your remote and programs one
function at a time. You specify which Programmable Function Button on the Relax
remote the IR signal is recorded to and can program one to eight separate functions
to the Relax remote. To program your Relax remote follow these instructions:
1. Turn the Relax remote ON
2. Hold the Learn button down approximately 5 seconds until
the LED Display.
3. Select a Programmable Function Button that you would like to record to. Once
selected the Programmable Function Button LED will turn red.
4. Position IR remote as shown.
5. Activate desired function button on IR Remote. When the Relax remote
successfully records the IR signal, the Programmable Function Button
LED will turn orange.
6. To program additional Function Buttons on the Relax remote, repeate steps 3
through 5 above.
7. Once finished programming the Relax remote, press the Learn button and
will disappear from the LED Display.
Lock
Switch
Programmable
Function
Buttons
appears on
Approximate Location of
IR Transceivers
LED
Display
Mounting Plate
Attachment
Screw Threads
Programmable
Function
Button LEDs
Place remotes less
than 6-in/15-cm apart
