MusicCast Surround Setup with AV Receivers
Using wireless surround speakers
(MusicCast Surround function)
Using devices that support the MusicCast Surround function, you can enjoy a 5.1.2-channel
or 5.1-channel theater system with wireless surround speakers and subwoofer.
■
Devices supporting MusicCast Surround
Wireless streaming speakers
MusicCast 50
MusicCast 20
■

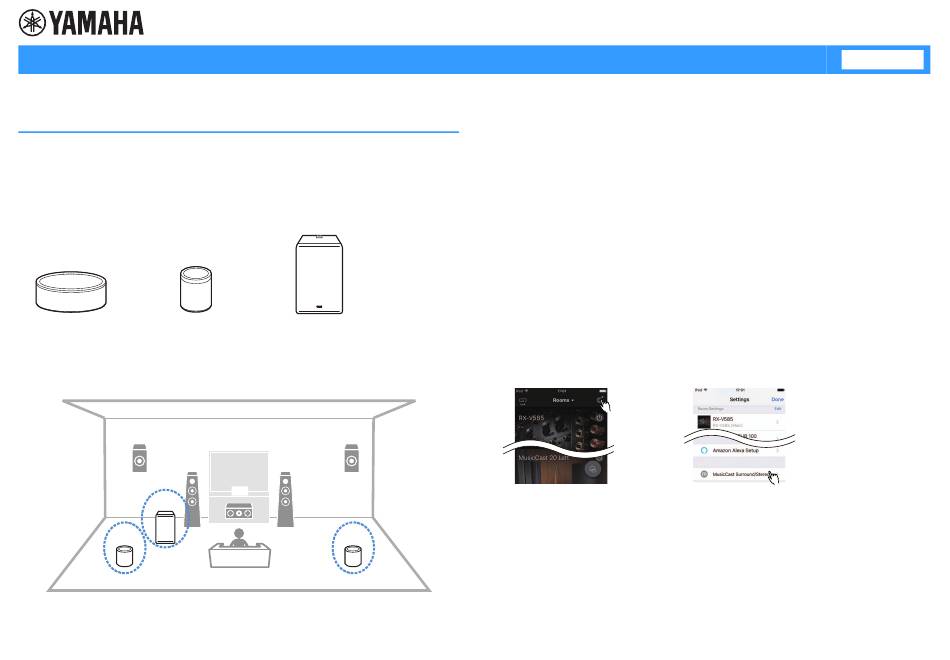

Sample speaker layout
For a 5.1.2-channel system using two MusicCast 20 speakers and one MusicCast SUB 100.
E
1
9
4
As of October 31, 2018
Network subwoofer
MusicCast SUB 100
R
2
3
5
Note
• In a 5.1.2-channel or 5.1-channel system, the surround speakers and subwoofer can be wireless. With other
systems, only the subwoofer can be wireless.
• With wireless surround speakers
– Sound will not be output from the speaker terminals (SURROUND) and pre-out jacks (SURROUND) on the
main unit.
– Surround back speakers and rear presence speakers cannot be used.
• With a wireless subwoofer
– One subwoofer can be wireless.
– Sound will not be output from the pre-out jacks (SUBWOOFER or SUBWOOFER 1 and 2) on the main unit.
Therefore, another subwoofer cannot be used by connecting it with an audio cable.
• The following audio cannot be output from the wireless surround speakers and subwoofer.
– Signals with a sampling frequency of 352.8 kHz or 384kHz
– DSD audio
– DVD-Audio and Super Audio CD (SACD) from HDMI input
1
This unit and the devices supporting MusicCast Surround must be
registered with the same location on the MusicCast CONTROLLER app.
2
Follow the app's on-screen instructions to complete setup of the
MusicCast Surround function.
Tap the
settings icon.
For detailed setup instructions, refer to the following.
https://download.yamaha.com/files/tcm:39-1212383
3
Adjust the speaker settings automatically (YPAO).
Note
• For details on YPAO, refer to the manual for this unit.
• Multi measurement and angle/height measurement cannot be used.
4
Confirm and check your YPAO settings, manually adjust if necessary,
and then enjoy content playback.
English
Tap "MusicCast
Surround/Stereo".
