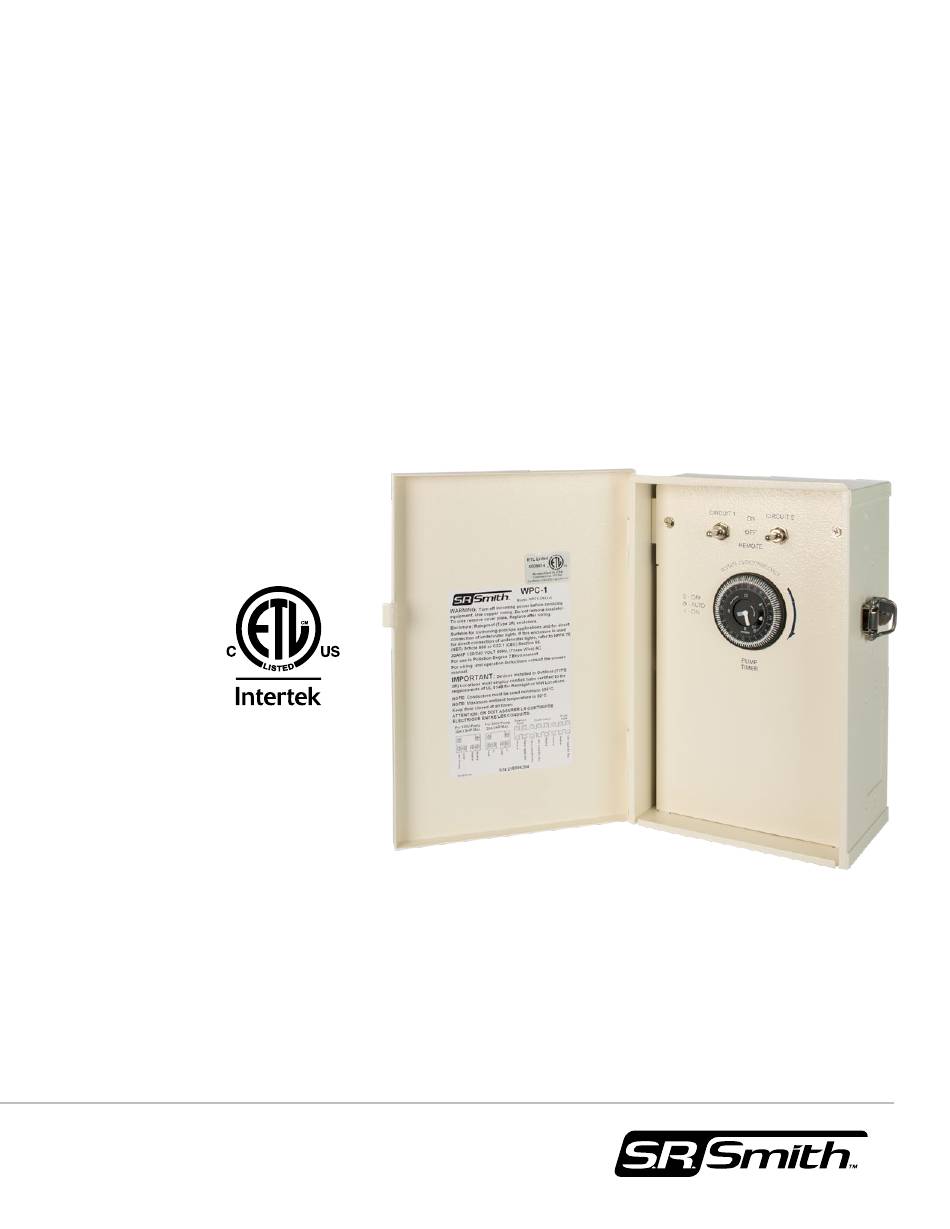

WPC1-XXXX-T
Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications
4008814
ETL LISTED
Conforms to UL STD 379;
Certified to CSA STD C22.2 #218.1
Installation Instructions
Read these instructions in their entirety before performing any installation work
FOR USE WITH POOL AND SPA PRODUCTS
79-15223-00 REV C1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPC1-T Series and is the answer not in the manual?

Questions and answers

George steffen
June 12, 2025

I have two multi-color lights connected. I'd like them to be the same color. What is the sequence of toggles to get both lights same color Wpc-1 device

0
1 comments:
Mr. Anderson
June 12, 2025

To synchronize the colors of two S.R.Smith WPC1-T Series multi-color lights:

1. Set both toggle switches on the WPC unit to REMOTE.
2. Press the “S” (Sync) button once on the remote.
3. Wait 15 seconds. The lights will flash on and off several times, pause in the off mode, and then resume at color mode 1 (soft color change).

This answer is automatically generated

0

Summary of Contents for S.R.Smith WPC1-T Series

  • Page 1 WPC1-XXXX-T Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications 4008814 ETL LISTED Conforms to UL STD 379; Certified to CSA STD C22.2 #218.1 Installation Instructions Read these instructions in their entirety before performing any installation work FOR USE WITH POOL AND SPA PRODUCTS 79-15223-00 REV C1...

  • Page 3: Table Of Contents

    Contents REPLACEMENT & ACCESSORY ITEMS......4 IMPORTANT SAFETY INFORMATION ......5 FCC WARNING .

  • Page 4: Replacement & Accessory Items

    R E P L A C E M E N T & A C C E S S O R Y I T E M S Item No. Qty. Component part No. Replacement Part Description WPCTC Timer WPC-1/2WFPR Relay 94-15264-00 WPC Receiver, 2-circuit 94-15263-00 Remote Control, 2-circuit (Transmitter)

  • Page 5: Important Safety Information

    I M P O R T A N T S A F E T Y I N F O R M A T I O N ELECTRICAL SHOCK HAZARD – SWITCH DOES NOT TURN OFF INPUT POWER. Failure to disconnect input power before servicing can lead to serious injury, or death. Disconnect input power before servicing.

  • Page 6: Wiring Instructions

    W I R I N G I N S T R U C T I O N S FOLLOW PROPER WIRING PRACTICES IN ACCORDANCE WITH ALL LOCAL REGULATORY REQUIREMENTS. P o w e r C o n n e c t i o n s w i t h o u t l i g h t i n g : To wire the WPC-1 use insulated COPPER wire only, 12 gauge minimum.

  • Page 7: Power Connection With Gfci

    P o w e r C o n n e c t i o n w i t h G F C I : To wire the WPC-1 with the use of a GFCI, punch out the GFCI knockout on the side of the WPC-1 enclosure.

  • Page 8: Hooking Up Low Voltage Lights To Circuit 1

    H o o k i n g u p L o w V o l t a g e L i g h t s t o C i r c u i t 1 To connect a Low Voltage lighting product to Circuit 1 (12VAC), an NEC or local jurisdiction approved Pull / Junction / Bell Box must be used to directly connect the conduit from the lighting product, in line with the WPC1-XXXX-T.

  • Page 9: Pump Connections

    P U M P C O N N E C T I O N S NOTE: This model is equipped ONLY with Single Speed pump connection. C o n n e c t i n g A 2 4 0 V A C S i n g l e S p e e d P u m p : Connect a 240V 30AMP Circuit Breaker for each pump (if this control box is equipped with optional pump relays).

  • Page 10: External Magnetic Antenna Mounting

    E X T E R N A L M A G N E T I C A N T E N N A M O U N T I N G The WPC-1 is equipped with an external antenna that can be mounted up to 3 meters from the WPC-1 unit.

  • Page 11: Operating Instructions

    O P E R A T I N G I N S T R U C T I O N S T i m e r O p e r a t i o n Set time to current time. In the example below, the current time is set for 9:00pm. NOTE: Only turn the Timer dial clockwise or the timer will be damaged.

  • Page 12: Wpc-1 Toggle Switch Operation

    W P C - 1 To g g l e S w i t c h O p e r a t i o n The WPC-1 receiver box houses two toggle switches. For operation with the wireless transmitter, the toggle switches need to be in the REMOTE position.

  • Page 13: Wireless Remote Operation

    W i r e l e s s R e m o t e O p e r a t i o n The RF remote system requires no complex programming and is shipped ready to use. In the event that another WPC unit or similar device is installed nearby and is operating on the same pairing code, that code (A-P) may be easily changed by choosing another via the 4 position DIP switch package found inside the battery compartment of the remote.

  • Page 14: Wiring Diagram

    FOR USE ON WPC AUXILIARY RELAY KIT FOR TEMPERATURE FREEZE PROTECT SWITCH OPTION RELAY 12 VAC CIRCUIT 1 12 VAC TC NEUTRAL CRIMP TC POWER CONNECTORS CIRCUIT 2 NEUTRAL NEUTRAL 120V LINE...

  • Page 15: Warranty Information

    TIMER REMOTE REMOTE SWITCH 1 SWITCH 2 WARRANTY INFORMATION For Lighting product warranty information and details, please visit our website: www.srsmith.com/warranty...
  • Page 16 Questions? Contact One of Our Dedicated Lighting Specialists. 1-800-824-4387 x4012 or x2282 S.R.Smith, LLC P.O. Box 400 | Canby, OR 97013 P 503.266.2231 TF 800.824.4387 srsmith.com © 2018 S.R.Smith. All rights reserved. 79-15223-00 REV C1...
