Summary of Contents for Eurotronic Genius BLE100

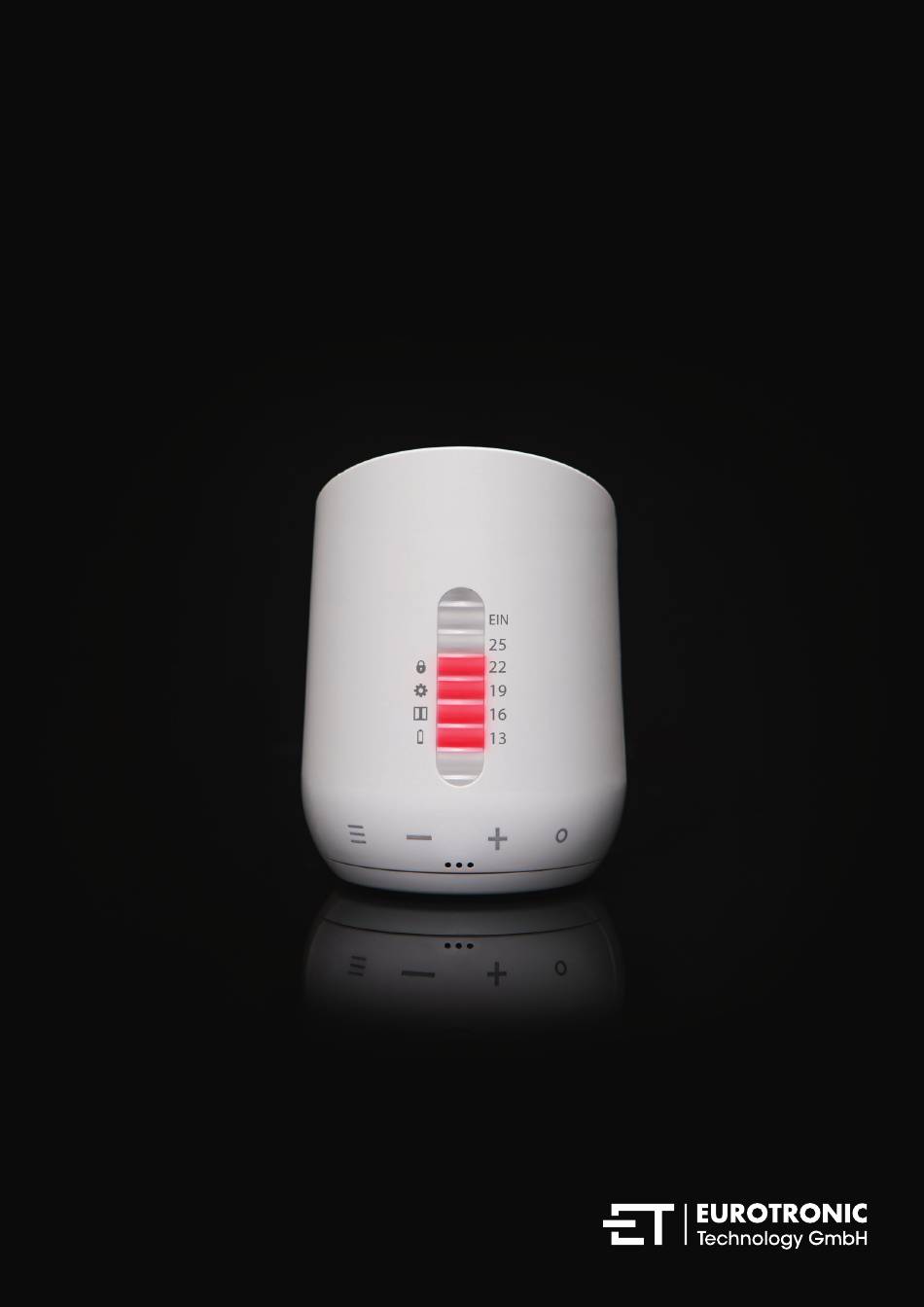

- Page 1 GENIUS THE INGENIOUS ENERGY-SAVING CONTROLLER INSTALLATION & OPERATION GUIDE GENIUS BLE100 Eurotronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENIUS BLE 100 The following operating instructions will guide you during commissioning and use of your GENIUS BLE 100 and answer all essential questions. Please read these operating instructions carefully before using your GENIUS BLE 100. Scope of Delivery Intended Use Warning / Safety Introduction GENIUS BLE 100... -
Page 3: Scope Of Delivery
1. SCOPE OF DELIVERY GENIUS BLE 100 1x GENIUS BLE100 1x Quick Start Guide 3x Adapters (Danfoss RA / RAV / RAVL) 1x Screw for Adapter 2x AA LR6 batteries HINWEIS: The following figures are for illustrative purpose only and can differ from the real product. -
Page 4: Intended Use
- Operate GENIUS BLE100 only as described in the user manual - GENIUS BLE100 should only be put to use in a dry and dust-free place, away from direct sunlight. - Do not keep using the device when ther is obvious damage. -
Page 5: Introduction Genius Ble100
GENIUS BLE 100 Thank you for purchasing a product from Eurotronic Technology GmbH. This device is designed to adjust the tempera- ture in your rooms comfortably and completely according to your needs while helping you to reduce your heating costs effectively. -
Page 6: Controls And Display Elements
Manual Operation: Use PLUS/MINUS to manually change the room temperature at any time. In AUTO mode, this manually set temperature remains until the next setting point. GENIUS BLE100 then switches back to the set heating pro- gramme. Page 6... -
Page 7: Installation And Start-Up
6. INSTALLATION AND START-UP GENIUS BLE 100 6.1 INSERTING/CHANGING BATTERIES 1. Remove the battery cover by pulling it upwards at the notch (Fig. 1). 2. Now insert the batteries. Pay attention to the correct polarity! Do not use rechargeable batteries. 3. -
Page 8: Installation At The Radiator
6.2 INSTALLATION AT THE RADIATOR GENIUS BLE 100 GENIUS BLE 100 can easily be mounted on all known valve bodies (see adapter list at: https:/ /eurotronic.org/service/ faq/). 1. Unscrew the old thermostatic head completely, loosen the fastening and pull it off the valve (Fig. 3) 2. -
Page 9: Adapters
M28 x 1,0 mm; Pettinaroli M28 x 1,5 mm; T+A M28 x 1,5 mm; Gampper 1/2/6; Danfoss RA/RAV/RAVL. For additional adapters, please visit: http:/ /shop.eurotronic.org If you are not sure which valve you have, please visit: www.eurotronic.org/service/faq/ and check the adapter list. RAV Pin... -
Page 10: Adaptation
6.4 ADAPTATION GENIUS BLE 100 After installation, GENIUS BLE 100 can start adapting. The LED for Assembly/Disassembly is already flashing, confirm the adaptation by pressing and holding the OK/SET button (3 seconds). The adaptation starts after confirmation. The device now adapts to the stroke of your valve body. To do this, the valve is now opened and closed several times to learn the respective end points. -
Page 11: Temperature Setting
• Make sure your smartphone has Bluetooth enabled (requires the availability of Bluetooth 4.2). • Download the free Eurotronic GENIUS app from the Google Play Store or App Store. Alternatively, scan the QR code with your smartphone. When the app is installed, the operating system (Android) asks for permission to access the current location. This query must be answered with „YES“... - Page 12 During operation, a Bluetooth connection must first be established to the device before an action can be performed. You will therefore notice a delayed response to your controls. Start the app. Please select your device: GENIUS BLE100. Create a new room or select the room. You can create up to 12 rooms.
-
Page 13: Devices (App)
8.1 DEVICES (APP) GENIUS BLE 100 Once a room is created, your smartphone searches for devices in your environment. Add a thermostat to your room. In the menu bar you can switch between the menu items: temperature, heating profile, holiday and setting. NOTE: The device takes the date and time of your smartphone. -
Page 14: Heating Profile (App)
8.3 HEATING PROFILE (APP) GENIUS BLE 100 In the menu item „Heating profile“ you can create individual heating profiles. After defining the heating times, confirm with the check Here you can create a mark. heating profile for the each day. Here you can create different heating profiles for the weekdays and... -
Page 15: Settings (App)
8.5 SETTINGS (APP) GENIUS BLE 100 Under the menu item „Setting“ you can set the window-open-detection and activate the key lock. Select the sensitivity of the temperature setting (high, medium, low). Set the desired period of time for which the valve is to remain closed. -
Page 16: Further Functions
9. FURTHER FUNCTIONS GENIUS BLE 100 Window-open-detection: The GENIUS BLE100 automatically closes the heating valve to save energy if you open a window and the temperature thereby drops significantly. If window-open detection is active, the window-open detec- tion LED lights up. The LED lights up until the set time has elapsed and the thermostat returns to normal mode. -
Page 17: Error Messages And Help
If required, use a suitable adapter from the • GENIUS BLE 100 is not mounted included accessories or other adapters from on the radiator our web shop at www.eurotronic.org. • Valve stroke too short • no valve movement possible Page 17... -
Page 18: Technical Specifications
Degree of pollution Technical modifications are subject to change. All descriptions for compatibility are without engagement. 13. SUPPORT AND CONTACT For technical support for the Eurotronic products, please contact Eurotronic via e-mail or telephone: Customer Service: Eurotronic Technology GmbH Südweg 1... -
Page 19: Environmental Information
Conformity is available at the following Internet address: https:/ /eurotronic.org/service/downloads. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Eurotronic Technology GmbH is under license. Other trademarks and trade names are those of their respective owners. - Page 20 Eurotronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org 08/2019...
