TWINBOLT

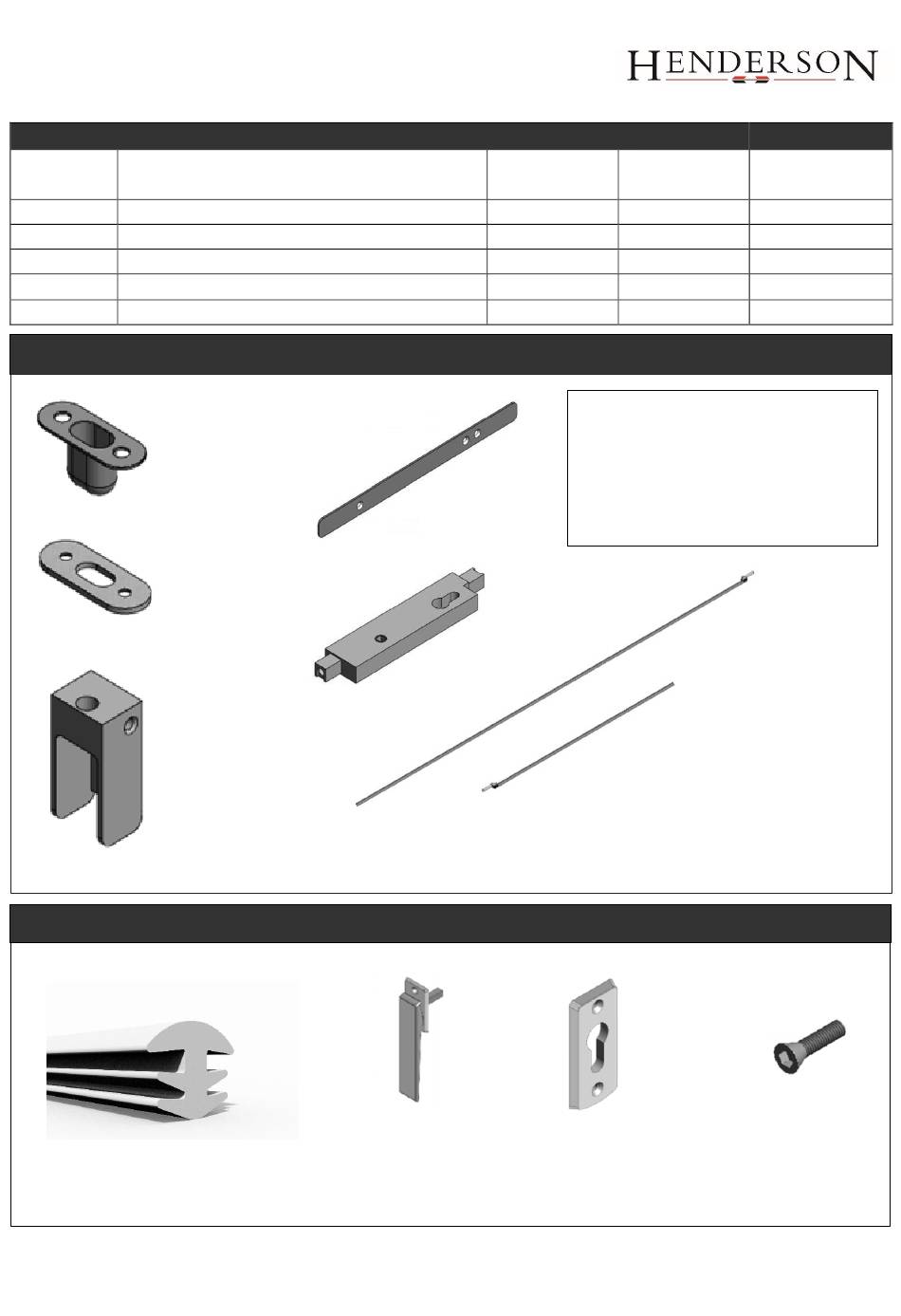

Fitting Instructions
KIT AND DOOR SPECIFICATION
Product
For Use With
Short Code
TB/SF
Securefold 50kg and 100kg - Non Mortice
TB/SFM
Securefold 50kg and 100kg - Mortice
TB/SF150
Securefold 150kg - Non Mortice
TB/SFBR
Securefold Bottom Rolling 80kg - Non Mortice
TB/SFMBR
Securefold Bottom Rolling 80kg - Mortice
KIT CONTENTS
2 x Floor Keep
(x 1 in SFBR Kits)
2 x Keep Plates
ACCESSORIES
TBCS** Cover Strip
(Available in Black, Brown or White)
2 x Shoot Bolt
Block
Min. Door
Thickness
56mm
56mm
56mm
56mm
56mm
2 x M4x9 countersunk head screws
4 x M4x12 countersunk head screws
1 x Cover
Plate
1 x Lock Box
TWINHAN/S Twinbolt Handle Kit
(Including handle, cylinder cover plate and screws)
Max. Door
Max. Door
Thickness
Height
68mm
3300mm
68mm
3300mm
68mm
4000mm
68mm
3000mm
68mm
3000mm
Screw Pack Contents
4 x Ø4.5x30 wood screw
2 x 1 ¾"x8g wood screws
2 x lock box to rod connectors
1 x Long Lock Rod
1 x Short Lock Rod
1
Advertisement
Summary of Contents for Henderson TWINBOLT
- Page 1 1 x Lock Box 2 x Shoot Bolt 1 x Long Lock Rod Block 1 x Short Lock Rod ACCESSORIES TWINHAN/S Twinbolt Handle Kit TBCS** Cover Strip (Including handle, cylinder cover plate and screws) (Available in Black, Brown or White)
- Page 2 TOOLS REQUIRED Router Posi Drive Screwdriver Drill & Drill Bit Size Ø3.0 & Ø4.1 (for adjustment only) Hacksaw (for adjustment only) Tape Measure Pencil (for adjustment only)
- Page 3 MORTICE OUTWARD OPENING ROUTING DETAIL Shoot Bolt Block Lock Rod Euro Cylinder & Escutcheon Lock Box & Cover Plate Handle...
- Page 4 MORTICE INWARD OPENING ROUTING DETAIL Lock Box & Cover Plate Shoot Bolt block Lock Rod Lock Box & Cover Plate Euro Cylinder & Escutcheon Lock Box & Cover Plate Handle Shoot Bolt block Shoot Bolt block...
- Page 5 NON MORTICE OUTWARD OPENING ROUTING DETAIL Shoot Bolt Block Lock Rod Euro Cylinder & Escutcheon Lock Box & Cover Plate Handle...
- Page 6 NON MORTICE INWARD OPENING ROUTING DETAIL Shoot Bolt Block Lock Rod Euro Cylinder & Escutcheon Lock Box & Cover Plate Handle...
- Page 7 ROUTING DETAIL FOR SECUREFOLD 50 AND 100 KEEP PLATES ROUTING DETAIL FOR SECUREFOLD BOTTOM ROLLING KEEP PLATES ROUTING DETAIL FOR SECUREFOLD 150 KEEP PLATES...
- Page 8 STEP BY STEP INSTRUCTIONS PLEASE NOTE: The following instructions are to suit installation of the euro cylinder lock above the handle (please see Appendix A, layout A. For installation instructions to have the euro cylinder lock below the handle, please see Appendix A, layout B.
- Page 9 STEP 2 : Attach lock rods to lock box – ensure long lock rod is located in threaded end nearest the euro cylinder Euro Cylinder STEP 3: Rotate lock rods to engage with lock box...
- Page 10 STEP 4: Insert assembly into routed door edge STEP 5: Position shoot bolt blocks in both ends...
- Page 11 STEP 6: Secure blocks with screws 1 ¾”x8g wood screws STEP 7: Attach cover plate M4x9 countersunk head screws...
- Page 12 FITTING OF ACCESSORIES STEP 8: If using the TBCS Routing Cover Strip, please cut to length and insert coloured rubber seal into lock rod slot STEP 9: Fit handle and cylinder plate with suitable fixings...
- Page 13 Invert the dimensions and exchange the top and bottom lock rods. Maintain the 1050mm to the centre of the handle. LAYOUT A LAYOUT B P C Henderson Ltd, Durham Road, Bowburn, Co. Durham, DH6 5NG, UK 664265 UK Sales Export Sales...
