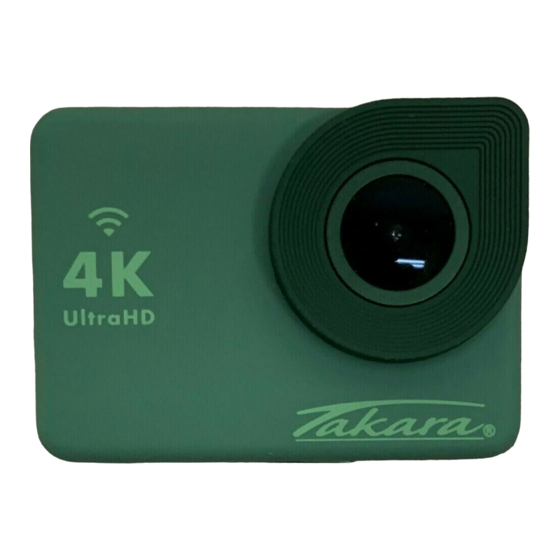

TAKARA MV137 User Manual

Camera sport 4k
Hide thumbs

Advertisement

Table of Contents

USER MANUAL
MV137
CAMERA SPORT
Be sure to use the product only as described in the package
leaflet. Misuse can damage the product or its environment.
VER_P_11B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV137 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TAKARA MV137

  • Page 1 USER MANUAL MV137 CAMERA SPORT Be sure to use the product only as described in the package leaflet. Misuse can damage the product or its environment. VER_P_11B...
  • Page 2 Security warning - This is a 4K action camera, it is normal that the case exerts heat during its use. Do not expose the product directly to temperatures above 50 ° C. - It requires a Micro SD card class Class10 or higher, format it first before using it.
  • Page 3 MV137 battery charger safety rules The sports camera should only be used with the supplied charger. The charger is designed only for the MV137 camera. The supply voltage is 230V / 50Hz. The charger can be used by children at least 8 years old and by...
  • Page 4 charger is only suitable for indoor use. Protect liquids, rain and snow. Never use the charger when it has been subjected to a violent shock or a fall. In this case, have the device inspected and repaired by a competent person. Do not use the charger if it is damaged.
  • Page 5 Alternating current Safety rules of the Li-ion battery The battery should be kept out of the reach of children. If any parts of the battery are swallowed, consult a doctor immediately. Do not put the battery in a microwave oven or any other kitchen appliance.
  • Page 6 Take care not to replace the battery without the prior agreement and the indications of our technical service. Preserve the health of people by safeguarding natural resources and the environment; Do not dispose of this device and its battery with household waste, but dispose of it when it is at the end of its life and out of...
  • Page 7 Image resolution 20M (5120x3840) 16M(4640x3480) 12M(4000x3000) 8M (3264 x2448) 5M(2560x1920) 4K 30FPS (3840*2160) Video resolution 2.7K 30FPS (2688*1520) 1080P 60/30FPS (1920*1080） 720P 120/60FPS (1080*720) File format (image / Format vidéo :MOV video) Format de l’image : JPG Wireless Android et iOS 2.4 GHz –...
  • Page 8 Weight Weight 66g (without battery), 82g with battery, 142g (with battery + waterproof case ACCESSORIES Bandes agrippantes Télécommande Page | 7...

  • Page 9: Product Structure

    PRODUCT STRUCTURE 1. Start / Mode 2. OK 3. Tap scroll up / WI-FI 4.Touch scroll bas 5.Lens 6. Port Micro memory card 7.Port Micro USB 8.Port micro HDMI, 9. Battery's Bonnet Page | 8...
  • Page 10 START-UP Welcome to your new camera. To capture videos and photos, you need a micro SD card (sold separately). To turn on: Press and hold the MODE button for a few seconds. To turn off : Press and hold the MODE button for a few seconds. Overview Press the Mode button repeatedly to scroll through the modes and settings.
  • Page 11 PARAMETERS Press the Mode button several times to access different setting menus, use the HAUT/Bottom buttons to browse through the différentes options, puis appuyez sur le bouton OK pour sélectionner l'option souhaitée. Dans le menu Quitter, appuyez sur le bouton OK pour sortir.
  • Page 12 tap the different configuration icons located at the bottom of the the screen to pass to the different parameters Touch the UP or DOWN icon on the left side of the screen or swipe up or down on the screen to rotate the page. First press the desired option, the selected option is highlighted in the yellow frame, press the selected option again and enter the option submenu, then quickly press the key twice.
  • Page 13 By using loop recording, you can record video continuously, but record only the desired moments. For example, if you select an interval of 5 minutes, only the last 5 minutes are recorded when you press the shutter button to stop recording. If you record for 5 minutes and do not press the OK button to stop recording and record, the camera will record a new interval of 5 minutes by recording over the previous 5 minutes.

  • Page 14: General Settings

    GENERAL SETTINGS WI-FI: On / Off Turn on the Wi-Fi function, the camera will be controlled by your smartphone via LIVE DV APP. (Shortcut): In video mode, press the up arrow to turn on / off the Wi-Fi function. Remote control: On / Off (available for the remote version) Activate the remote control function, the camera will record a video or take a picture with the included remote control.

  • Page 15: System Configuration

    Sharpness: -100 ~ 100 Sharpness controls the quality of the details captured in your video clips or photos. SYSTEM CONFIGURATION Language: English / Español / Portugues / Pусский / Deutsch / Italiano / Latviski / Polski / Românâ / Slovenčina / країнська / Français / Čestina Sets the language that appears on the camera.
  • Page 16 Turn off the LCD after a period of inactivity to save battery life. To turn on the LCD monitor, press any button on the camera. Card format: YES / NO To keep your micro SD card in good shape, reformat it regularly. Reformatting erases all your content.
  • Page 17 Check that the camera is in video / photo mode, press the fast mode icon to select the desired video mode: To start the recording: To press the shutter button. The camera's working indicator and a red dot on the screen blink during recording. To stop recording: To press the shutter button.

  • Page 18: Photo Mode

    PHOTO MODE To capture a photo, check that the camera is in the desired Photo mode and set the desired resolution. If the photo icon on your camera's LCD monitor is not displayed, press the Mode button repeatedly to access the Photo Setup menu and select the desired option, such as Duration.
  • Page 19 3.The charge status light turns off when the battery is fully charged. Notes: Charging time: 4 hours for 5V 1A power 2.Please make sure that the camera is turned off while charging. 3.Load only with a 5V 1A output charger. 4.
  • Page 20 Wi-Fi on the camera. If Wi-Fi on the camera is on, the Wi-Fi icon appears at the top of the screen. 4. Connect to the network called "Live DV or Takara MV137" in the Wi-Fi settings of your smartphone or tablet.
  • Page 21 5. Tap "Download" LIVE DV App is compatible with the smartphones and tablets listed below: For Apple IOS * iPhone5,5s, 6 (plus), 6s (plus), 7 (over IOS10) * iPhone Air & Mini (above IOS10) For Android * Android devices 4x Quad-Core (from Android 7.0) NOTES : 1).

  • Page 22: Delete Data

    3) When the phone and camera connect via Wi-Fi, the power of the camera will increase. The temperature of the camera will increase rapidly and the camera's battery consumption will increase as well. This is a normal phenomenon. 4) Since many types of phones are available in the market and the phone system is constantly updated, LIVE DV APK / APP needs time to synchronize updates, if LIVE DV APK / APP can not be compatible with your phone, please tell us the model of your phone and the system version information,...

  • Page 23: Remote Control

    Make sure the camera is in video / photo mode, tap the play icon to enter video playback mode, and tap the video or photo icon in the upper left corner of the screen to switch to video / photo playback 1.
  • Page 24 Recording function: in standby mode, the first time you press this button, the device turns on, go to the video interface, the second time you press, it starts recording, the third time you press, you switch to the video interface. In another mode, just press this button, it will go to recording. Camera function: In standby mode, press this button, the camera turns on, go to the video interface.
  • Page 25 Be sure to remove the battery from the remote control and put it in a safe and reliable place, if you are not using it for a long time. The remote will always be in standby mode. If the indicator is not lit, the battery was exhausted.
  • Page 26 6) Put the 4 screws in the cover. Security for button cells Do not ingest the battery, Risk of chemical burns. The remote control supplied with this product works with a button accumulator. If ingested, the button accumulator, can cause severe internal burns in just 2 hours that can be life threatening.
  • Page 27 Declaration EU TAKARA MULTIMEDIA, 59 Henry Dunant Avenue, 06105 Nice Cedex 2, France, declares that this MV137 product is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53 / EU The complete declaration can be downloaded from www.takara.fr...
  • Page 28 Page | 27...
  • Page 29 www.takara.fr...
