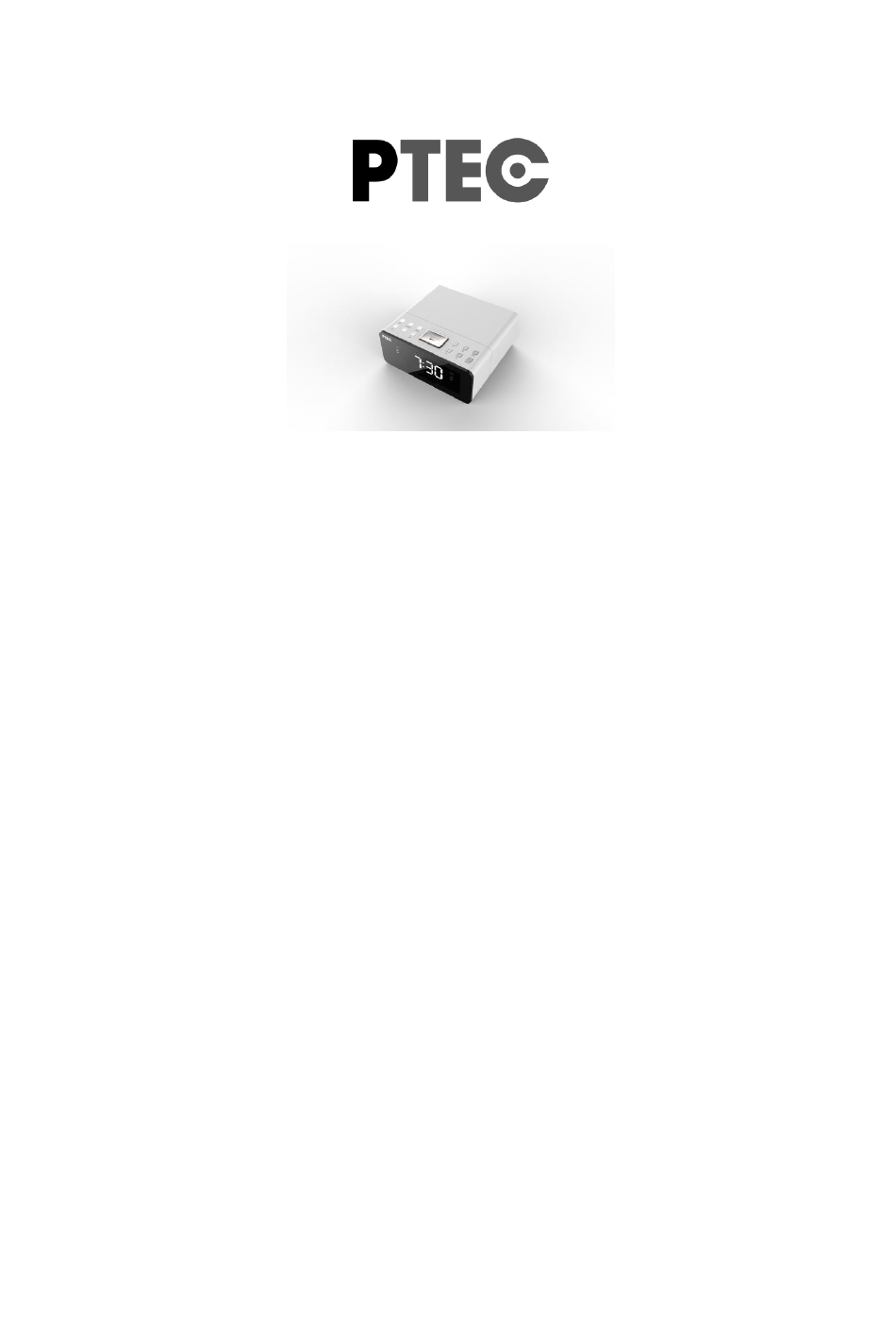

CLOCK RADIO USER MANUAL
Thank you very much for buying the PTEC TAMARO. In order to let you freely operate the product
and fully enjoy the overbalancing happiness it brings you, we have introduced each function of the
player in detail in this user manual. Please carefully read this user manual before use and keep
for future reference.
If you pass the Clockradio on to someone else, make sure to give them all the relevant
documents with it.
The device has been developed for the receiving DAB+/FM radio programs. The device has been
designed for private use and is not suitable for commercial purposes.
The items enclosed in the packaging box are as follows:
PTEC TAMARO
Power adaptor
User manual
Do not drop the device and do not expose it to liquid, moisture or humidity. These might lead to
damage to the device.
If the device is moved from a cold environment into a warmer one, do let it adapt to the new
temperature before operate the device. Otherwise, it might lead to condensation and cause
malfunctions in the device.
Do not use the device in the dust environment as dust can damage the interior electronic
components and lead to malfunctions in the device.
Protect the device from strong vibrations and place it on stable surfaces.
Do not attempt to disassembly the device.
If the device is not using for a long period of time, disconnect it from the power supply by
unplugging the power plug. This is to avoid the risk of fire.
The ventilation should not be impeded by covering the ventilation openings with items, such as

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAMARO and is the answer not in the manual?

Questions and answers

Summary of Contents for PTEC TAMARO

  • Page 1 CLOCK RADIO USER MANUAL Thank you very much for buying the PTEC TAMARO. In order to let you freely operate the product and fully enjoy the overbalancing happiness it brings you, we have introduced each function of the player in detail in this user manual. Please carefully read this user manual before use and keep for future reference.
  • Page 2: Features/Technical Specifications

    newspapers, table-cloths, curtains, etc. No naked flame sources, such as lighted candles, should be placed on the apparatus. Risks associated with high volumes Listening the device with headphones, always reduce the volume before put on the headphones. After the headphones are positioned properly, increase the volume to the desired level. To prevent possible hearing damage, do not listen at high volume for long periods.
  • Page 3: Dab Function

    1. LCD Screen 2. Telescopic antenna 3. DC IN 4. Headphone socket 5. USB charge (only for charge 5 V / 1A ) 6. ON/OFF button 7. Menu / Info button 8. Standby / Mode button 9. Alarm 10. Vol- button 11.
  • Page 4 Press the “Mode / Standby” button repeatedly to switch to DAB mode. The DAB mode will automatically be selected and the first time the radio is connected to the supply the radio will perform a quick scan. The display will show ‘Scanning’ a slide bar that indicates the progress of the scan, the name of the last station found and the total number of stations found so far.
  • Page 5 239.200mhz, then press ‘Enter’ to play scan Select ‘DRC’ by press next button, then press “Enter” button to step into, DRC off/DRC high/DRC low can be optional, then press “Enter” button to confirm. Prune If want to delete such stations without signal in the station list, press enter button, select ‘Yes’ or ‘NO ‘by press next/ Prev button, then press “Enter”...
  • Page 6 6. Bluetooth function Press the ‘Mode’ button multiple times to switch to ‘Bluetooth’ mode. Connect the Bluetooth pairing name “PTEC Tamaro” on your device, and then start the playback. Press enter button to play/pause the music. Press vol-/vol+ button to adjust the volume.
  • Page 7: Alarm Setting

    Press Enter button to disconnect the Bluetooth connection. Alarm Setting Note: Check that the radio has the correct time and date before you set an alarm. Press Alarm button to select Alarm 1 or Alarm 2, then press “Enter” button to confirm. Then press next button to select alarm on or off, then press enter button to confirm Select hour/min by pressing next button, then press “Enter”...
  • Page 8: Warranty Terms

    RE Directive 2014/53/EU, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. Informations for CE are on our website www.ptec.ch Disposal If have to dispose the device in the future, note that all electrical and electronic device must be disposed of separately from household waste at official disposal centers.
  • Page 9 Our support may already be able to solve the problem. If the problem cannot be solved, you will receive instructions on where to send the device to. Manufacturer: Palotec AG Frikartstrasse 3 4800 Zofingen / Switzerland E-mail: info@ptec.ch Internet: www.ptec.ch Made in China...
