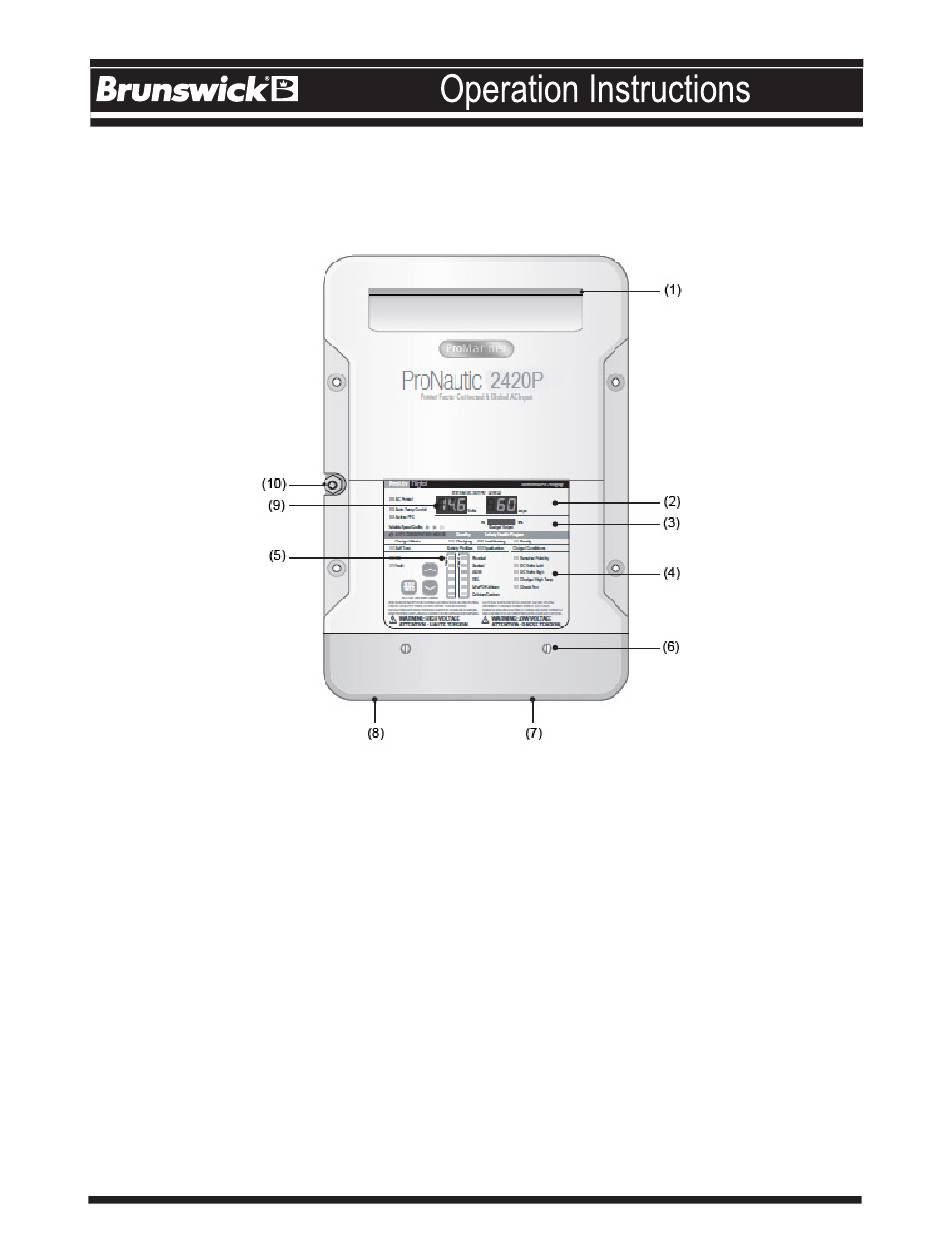

The Direct+ charger is shown in Figure 1. A grounded power supply of 95-240 VAC, 50/60 Hz should be
provided to the charger. Make sure that the battery charger is positioned so it has adequate clearance to al-
low air circulation by the cooling fan. Detailed operating instructions are supplied with the battery charger.
(1) COOLING VENT
(2) AMPERAGE OUT DISPLAY
(3) PERCENTAGE OF OUTPUTS USED
(4) FAULTS
The ProNautic 2420P charger is supplied with the proper 115/230 VAC input power cord and 24 VDC
output power cord already attached. The charger should also be preset for the type of battery included
with your Direct+ lane machine.
•
AGM and 30 Ahr Lithium batteries should be preset to the Custom Profile set to 28.6 VDC and
50% current (amps) output.
•
The 48 Ahr Lithium battery should be preset to the Custom Profile set to 28.6 VDC and 100%
current (amps) output.
Contact Brunswick Technical Support or your installing distributor if your charger is not set to the proper
settings for the type of battery in your machine.
It is best to install the charger onto a wall within 8 feet of a power outlet that is not being used to power
other equipment. The AC power cord has an in-line On/Off switch to allow you to turn the power off
BEFORE disconnecting the DC output cable from the left hand charge port on the lane machine. The DC
output cable should then be reconnected to the left hand charge port BEFORE turning on the AC power
back on the charger.
February 2019

DIRECT+ Battery Charger

Figure 1
(5) CHARGING PROFILE SELECTED
(6) AC AND DC CONNECTION COVER
(7) DC SIDE TERMINATIONS
(8) AC SIDE TERMINATIONS
© Brunswick Bowling Products, LLC 2019. All rights reserved.
(9) VOLTAGE OUT DISPLAY
(10) ABYC RECOMMENDED BONDING
STUD
1
14-900100-000 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRECT+ ProNautic 2420P and is the answer not in the manual?

Questions and answers

Summary of Contents for Brunswick DIRECT+ ProNautic 2420P

  • Page 1 50% current (amps) output. • The 48 Ahr Lithium battery should be preset to the Custom Profile set to 28.6 VDC and 100% current (amps) output. Contact Brunswick Technical Support or your installing distributor if your charger is not set to the proper settings for the type of battery in your machine. It is best to install the charger onto a wall within 8 feet of a power outlet that is not being used to power other equipment. The AC power cord has an in-line On/Off switch to allow you to turn the power off BEFORE disconnecting the DC output cable from the left hand charge port on the lane machine. The DC output cable should then be reconnected to the left hand charge port BEFORE turning on the AC power back on the charger.
  • Page 2 Battery Charger: Connecting to Envoy Start with the AC input power to the battery charger switched OFF. Connect the red 24 VDC output con- nector of the battery charger to the matching red charger connection port on the left hand side cover of the Envoy.
