CommScope Teletilt ATC200-LITE-USB Setup

7. Setup for a serial connection.

• Verify that the controller is powered up and connected to the computer using
AN RS-232 serial cable and there is not a USB connection to the
controller.
• Start the ATCLite program. Since a USB connection is not detected, the
computer will prompt you to use a serial connection. Click Yes to allow the
computer to search for an available serial port. See Figure 6. COM1 is the
default used, if it is available. If COM1 is not available, the computer will
automatically search for the next available serial port in the range of 1-8.
• After the serial connection has been established, connect the desired length
RET control cable between the controller's AISG connector and the first
component in the RET system (or actuator that is to be tested before antenna
is mounted on the tower).

8. Device search.

• After the serial or USB connection has been established and the controller
is connected to the RET device/system, a device search can be started. Refer
to the Equipment Installation Overview provided for additional information.
Figure 6. ATC200-LITE-USB Serial Connection.
IMPORTANT Precautions
• Disconnect the ATC200-LITE-USB controller from the RET system at the end
of each session to prevent possible damage to RET devices.
• The controller MUST remain disconnected from the computer and it's power
supply during the ATCLite software installation process.
• Before installing and operating the ATC200-LITE-USB controller, please
DOWN- LOAD the latest antenna definition file and ATCLite/ATM200 software
files from the Andrew→Products tab on www.commscope.com. Click on
Antennas→Base Station Antenna Systems→Teletilt RET System→Downloads
→Teletilt RET Products Software, Firmware, Tools, and Manuals.
• Please register online to receive E-mail notifications for updates made to the
software and antenna definition files. Andrew recommends that the website be
checked every 30 days for updated software/documentation.
Customer Service 24 hours
CommScope
1100 CommScope Place SE P.O. Box 339, Hickory, NC 28603-0339 North America: +1-800-255-1479 (toll free)
(828) 324-2200 (800) 982-1708 Any country: +1-779-435-6500
www.commscope.com/andrew email: acicustomersupportcenter@commscope.com
Notice: CommScope disclaims any liability or responsibility for the results of improper or unsafe installation, inspection, maintenance, or removal practices.
Aviso: CommScope no acepta ninguna obligación ni responsabilidad como resultado de prácticas incorrectas o peligrosas de instalación, inspección, mantenimiento o retiro.
Avis : CommScope décline toute responsabilité pour les conséquences de procédures d'installation, d'inspection, d'entretien ou de retrait incorrectes ou dangereuses.
Hinweis: CommScope lehnt jede Haftung oder Verantwortung für Schäden ab, die aufgrund unsachgemäßer Installation, Überprüfung, Wartung oder Demontage auftreten.
Atenção: A CommScope abdica do direito de toda responsabilidade pelos resultados de práticas inadequadas e sem segurança de instalação, inspeção, manutenção ou remoção.
Avvertenza: CommScope declina eventuali responsabilità derivanti dell'esecuzione di procedure di installazione, ispezione, manutenzione e smontaggio improprie o poco sicure.
注意：CommScope 公司申明对于不恰当或不安全的安装、检验、维修或拆卸 操作所导致的后果不负任何义务和责任。
@2013 CommScope Bulletin 639559
Figure 7. Installed ATC200-LITE-USB Controller System.
WARRANTY NOTICE
Proper installation procedures must be followed when installing and operating RET
equipment. Failure to assure installations are done properly by trained installation personnel
and to follow procedures discussed in this bulletin may cause warranty for such products
to be void.
Andrew requires that all RET installations be pre-tested and configured prior to installation.
Failure to conduct pre-test and pre-installation procedures defined by Andrew will void
warranty.
SAFETY NOTICE
The installation, maintenance, or removal of an antenna requires qualified, experienced
personnel. Andrew installation instructions are written for such installation personnel.
Antenna systems should be inspected once a year by qualified personnel to verify proper
installation, maintenance, and condition of equipment.
Andrew disclaims any liability or responsibility for the results of improper or unsafe
installation practices.
Do not install near power lines. Do not install on a wet or windy
Power lines, telephone lines, and day or when lightning or thunder
guy wires look the same. Assume is in the area. Do not use metal
any wire or line can electrocute ladder.
you.
Installation Training Available at Andrew Institute
Teletilt Control System
Computer Interface Setup
Wear shoes with rubber soles and
heels. Wear protective clothing
including a long-sleeved shirt and
rubber gloves.

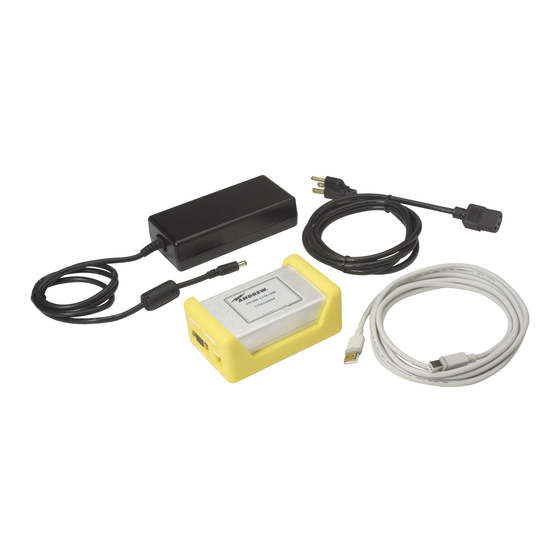

ATC200-LITE-USB
®
Bulletin 639559 • Revision F • August 2013
